Product Details | WHEEL HYDRAULIC BRAKE CYLINDER ASSEMBLY

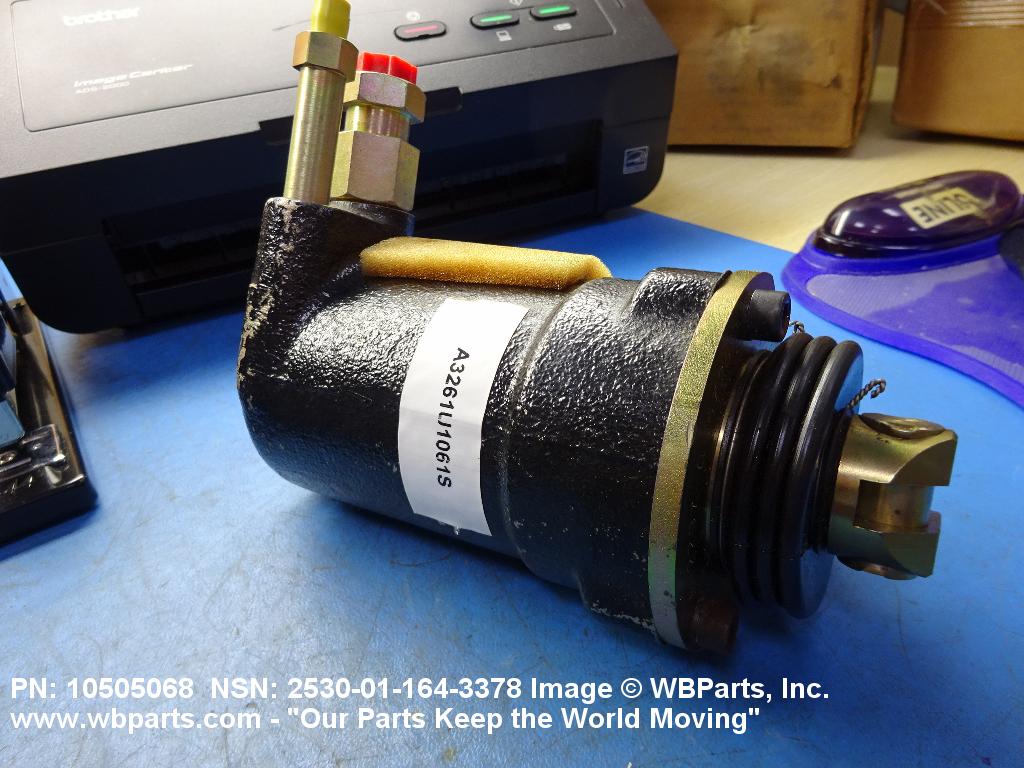

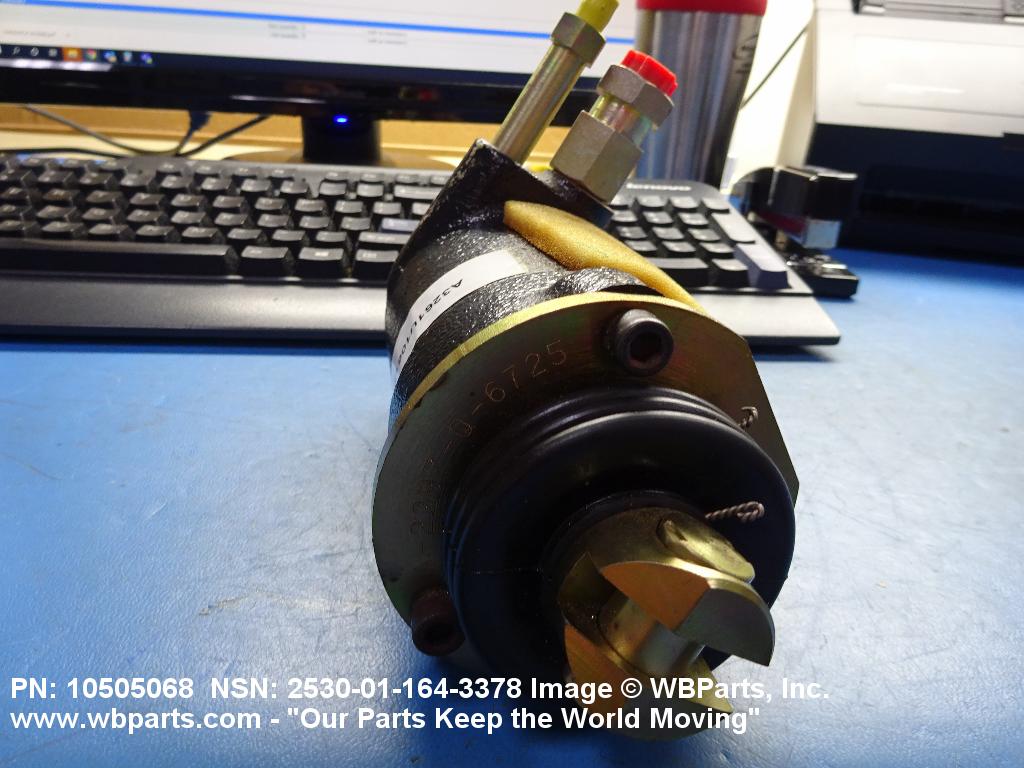

2530-01-164-3378 A device consisting of a CYLINDER, HYDRAULIC BRAKE, WHEEL with a piston(s) and other component parts which is mounted to the back plate of a wheel. It uses the flow and pressure of a fluid to create the linear motion required to operate the brake shoes of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: A3261U1061, A-3261-U-1061, 10505068, 12 704 024, 12704024, 2530-01-164-3378, 01-164-3378, 2530011643378, 011643378
