NSN 2530-00-981-3202 B800508005FN55, B8005-08-005FN55, 03020102
Product Details | MASTER HYDRAULIC BRAKE CYLINDER ASSEMBLY
2530-00-981-3202 A device consisting of a reservoir and/or CYLINDER, HYDRAULIC BRAKE, MASTER with other components necessary to displace fluid from a central source for actuating the slave or wheel cylinders of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: B800508005FN55, B8005-08-005FN55, 03020102, 03-020-102, 03020487, 03-020-487, 403N, 2530-00-981-3202, 00-981-3202, 2530009813202, 009813202, 503020102
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1962 | 00-981-3202 | 11007 ( CYLINDER ASSEMBLY, HYDRAULIC BRAKE, MASTER ) |
Drawings & Photos | NSN 2530-00-981-3202
Demand History | NSN 2530-00-981-3202
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-981-3202 | 2017-11-332 | 20 | DIBBS |
| 2530-00-981-3202 | 2008-10-298 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-981-3202
Technical Data | NSN 2530-00-981-3202
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 3.750 INCHES NOMINAL |
| OVERALL HEIGHT | 5.750 INCHES NOMINAL |
| EXTENDED LENGTH | 7.312 INCHES NOMINAL |
| COMPRESSED LENGTH | 7.312 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE CYLINDER HEAD END |
| MOUNTING PROVISION | SLOT |

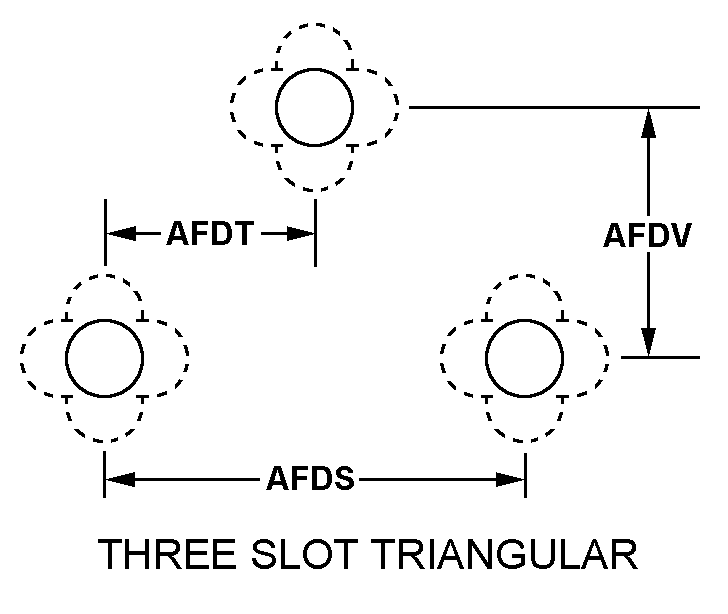

| MOUNTING PROVISION ARRANGEMENT STYLE | 15 THREE SLOT TRIANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.812 INCHES NOMINAL |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.328 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.437 INCHES NOMINAL |
| SLOT WIDTH | 0.406 INCHES NOMINAL |
| SLOT LENGTH | 0.500 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 1 CENTER SECTION 1 PISTON ROD END |
| TEMP RATING | NOT RATED |
| RESERVOIR TYPE | INTEGRAL |
| ACTUATION METHOD | DIRECT |
| FEATURES PROVIDED | FILLER PLUG |
Restrictions/Controls & Freight Information | NSN 2530-00-981-3202
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018400 | AUTO BRAKES/SHOES R PADS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
