NSN 2530-00-753-9267 ER7539267, FE3527, FE3527A
Product Details | MASTER HYDRAULIC BRAKE CYLINDER ASSEMBLY
2530-00-753-9267 A device consisting of a reservoir and/or CYLINDER, HYDRAULIC BRAKE, MASTER with other components necessary to displace fluid from a central source for actuating the slave or wheel cylinders of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: ER7539267, FE3527, FE3527A, 419M2, 7539267, 913096, 12368254, 2530-00-753-9267, 00-753-9267, 2530007539267, 007539267
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-753-9267 | 11007 ( CYLINDER ASSEMBLY, HYDRAULIC BRAKE, MASTER ) |

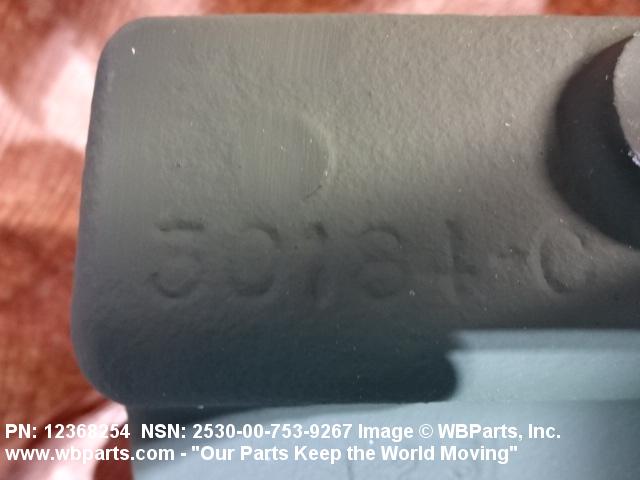

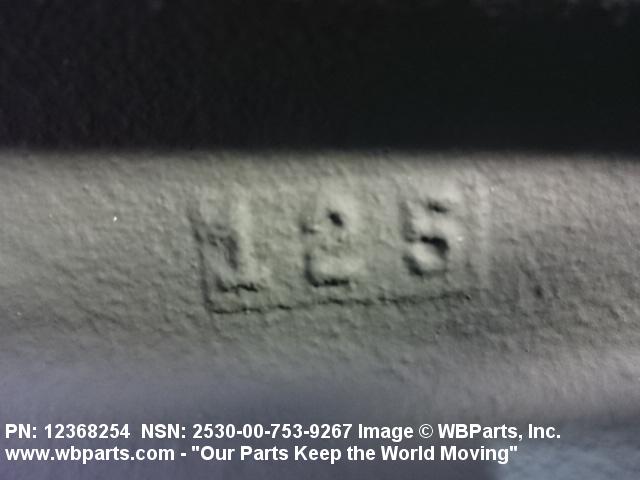

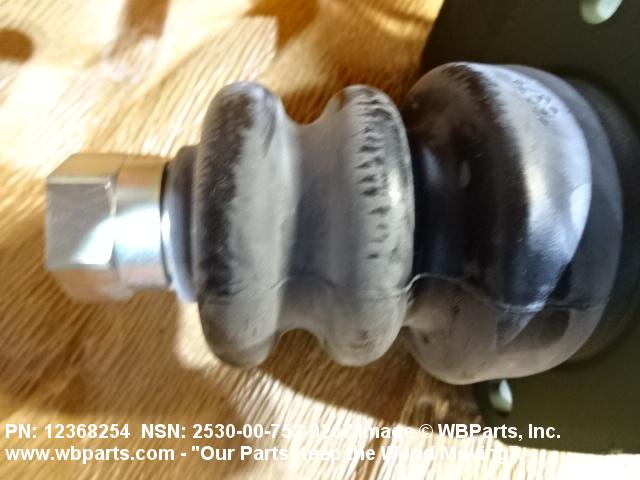

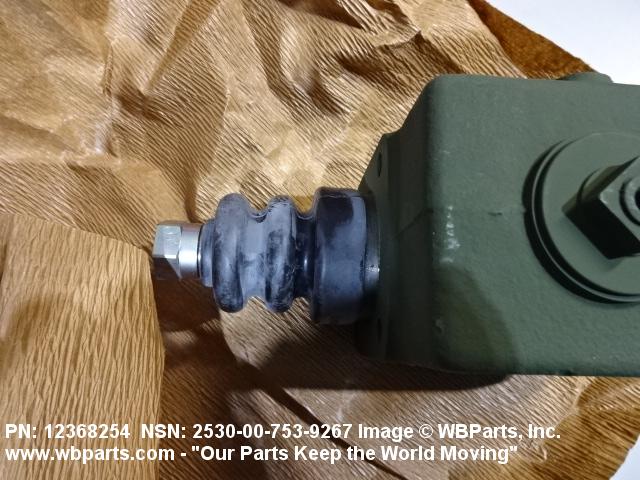

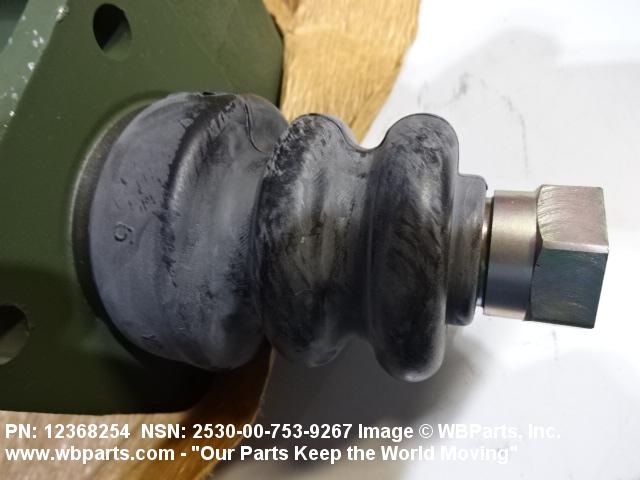

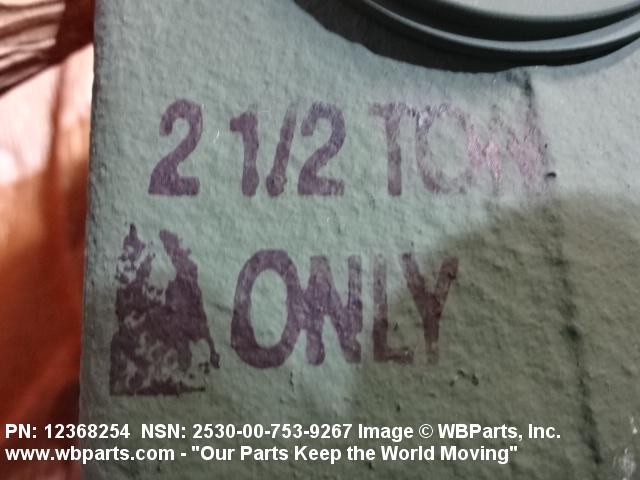

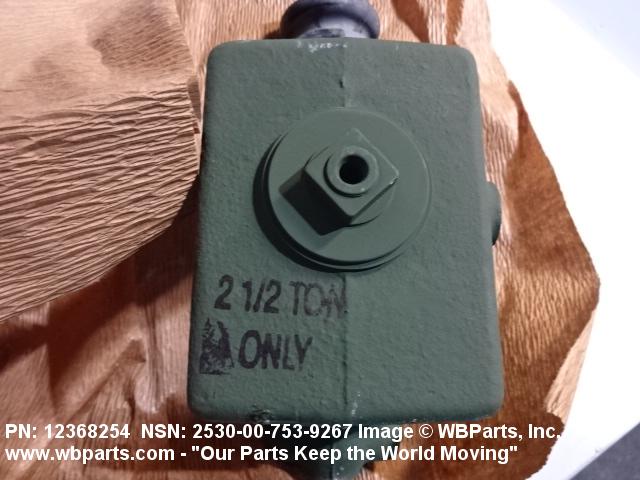

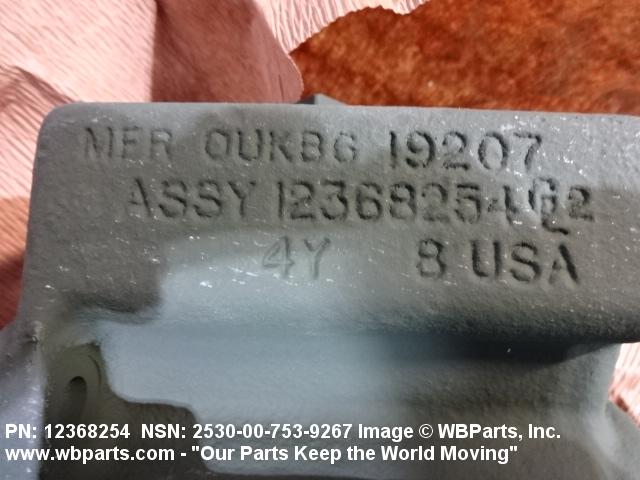

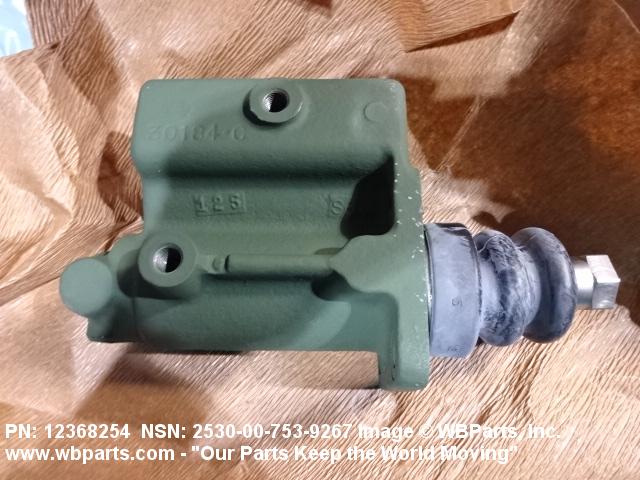

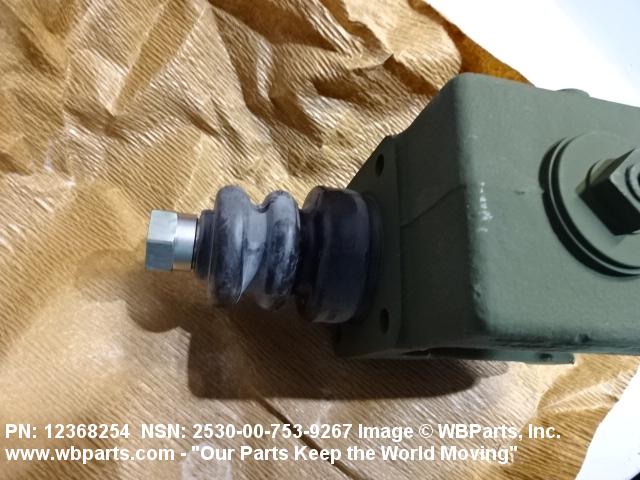

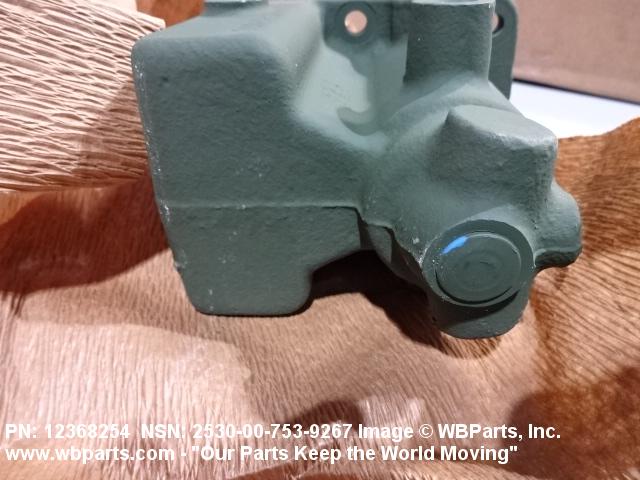

Drawings & Photos | NSN 2530-00-753-9267
Demand History | NSN 2530-00-753-9267
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-753-9267 | 2020-11-322 | 40 | US |
| 2530-00-753-9267 | 2019-11-325 | 40 | DIBBS |
| 2530-00-753-9267 | 2019-05-151 | 6 | Greece |
| 2530-00-753-9267 | 2019-05-139 | 87 | DIBBS |
| 2530-00-753-9267 | 2018-11-331 | 20 | United Kingdom |
| 2530-00-753-9267 | 2018-07-205 | 20 | United States |
| 2530-00-753-9267 | 2018-02-53 | 12 | DIBBS |
| 2530-00-753-9267 | 2017-10-297 | 20 | DIBBS |
| 2530-00-753-9267 | 2016-04-119 | 60 | DIBBS |
| 2530-00-753-9267 | 2016-01-24 | 48 | DIBBS |
| 2530-00-753-9267 | 2015-04-112 | 68 | DIBBS |
| 2530-00-753-9267 | 2006-03-61 | 2675 | us |
Cross Reference | NSN 2530-00-753-9267
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12368254 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 2530007539267 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 419M2 | 56442 | DIAMOND REO TRUCK CO |
| 7539267 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 913096 | 58275 | SASCO INC CANADIAN DIV |
| ER7539267 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| FE3527 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FE3527A | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-753-9267
Related Products | NSN 2530-00-753-9267
Technical Data | NSN 2530-00-753-9267
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 3.875 INCHES NOMINAL |
| OVERALL HEIGHT | 6.000 INCHES NOMINAL |
| EXTENDED LENGTH | 9.625 INCHES NOMINAL |
| COMPRESSED LENGTH | 8.188 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| BORE DIAMETER | 1.750 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | 7 EXTERNAL THREADED |
| FIRST END OUTSIDE DIAMETER | ANY ACCEPTABLE |
| FIRST END EXTERNAL THREAD LENGTH | ANY ACCEPTABLE |
| FIRST PISTON ROD END THREAD SERIES DESIGNATOR | UNF |
| FIRST PISTON ROD END THREAD DIAMETER | 0.562 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD QUANTITY PER INCH | 18 |
| FIRST PISTON ROD END THREAD CLASS | 2B |
| FIRST PISTON ROD END THREAD DIRECTION | RIGHT-HAND |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE PISTON ROD END |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 19 FOUR HOLE RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.500 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.406 INCHES NOMINAL |
| MOUNTING FACILITY DIAMETER | 0.406 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 3 CYLINDER HEAD END |
| PORT STYLE | 6 FLARE |
| PORT THREAD SERIES DESIGNATOR | UNF |
| PORT THREAD DIAMETER | 0.500 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 20 |
| PORT THREAD CLASS | 2B |
| SEAT ANGLE IN DEG | ANY ACCEPTABLE |
| TEMP RATING | NOT RATED |
| RESERVOIR TYPE | INTEGRAL |
| ACTUATION METHOD | DIRECT |
| STOPLIGHT SWITCH THREAD SERIES DESIGNATOR | NPTF |
| STOPLIGHT SWITCH NOMINAL PIPE THREAD SIZE | 0.125 INCHES |
| FEATURES PROVIDED | FILLER PLUG AND RUBBER BOOT |
| SPECIAL FEATURES | PISTON @ROD END THD FEMALE,1.000 IN. DEEP,6 THD MTG HOLES 3 ON EA SIDE OF CYLINDER |
Restrictions/Controls & Freight Information | NSN 2530-00-753-9267
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018400 | AUTO BRAKES/SHOES R PADS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-00-753-9267
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NK | 2 1/2 Ton Vehicle Configuration, Multi-Fuel |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | T | |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
