Product Details | MASTER HYDRAULIC BRAKE CYLINDER ASSEMBLY
2530-00-968-6276 A device consisting of a reservoir and/or CYLINDER, HYDRAULIC BRAKE, MASTER with other components necessary to displace fluid from a central source for actuating the slave or wheel cylinders of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: H6481702, H6-481702, FD3921, FD44185, FD73365, 481702, 484940, 2530-00-968-6276, 00-968-6276, 2530009686276, 009686276
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1962 | 00-968-6276 | 11007 ( CYLINDER ASSEMBLY, HYDRAULIC BRAKE, MASTER ) |
Drawings & Photos | NSN 2530-00-968-6276
Cross Reference | NSN 2530-00-968-6276
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 481702 | 02280 | AMERICAN HOIST AND DERRICK CO |
| 481702 | 49185 | TEREX AMERICAN CRANE CORP |
| 484940 | 02280 | AMERICAN HOIST AND DERRICK CO |
| 484940 | 49185 | TEREX AMERICAN CRANE CORP |
| FD3921 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FD44185 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FD73365 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| H6-481702 | 16662 | LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-968-6276
Related Products | NSN 2530-00-968-6276
Technical Data | NSN 2530-00-968-6276
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 3.625 INCHES NOMINAL |
| OVERALL HEIGHT | 6.250 INCHES NOMINAL |
| EXTENDED LENGTH | 6.500 INCHES NOMINAL |
| BODY MATERIAL | STEEL |
| BORE DIAMETER | 0.625 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | 1 RING TYPE |
| FIRST END HOLE DIAMETER | 0.625 INCHES NOMINAL |
| FIRST END OUTSIDE DIAMETER | 1.625 INCHES NOMINAL |
| FIRST END THICKNESS AT MOUNTING HOLES | 2.000 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |

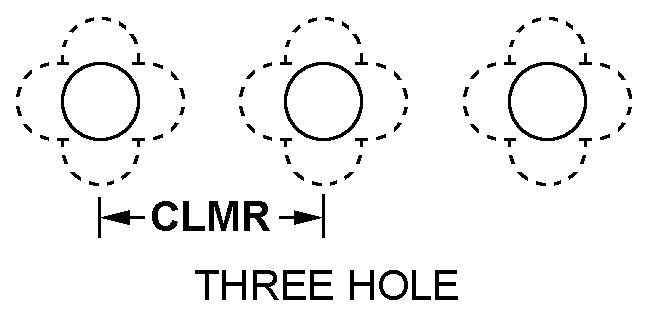

| MOUNTING PROVISION ARRANGEMENT STYLE | 4 THREE HOLE |
