NSN 2530-00-499-9099 A2410D, A24-10D, D72252
Product Details | FRICTION LINING
2530-00-499-9099 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: A2410D, A24-10D, D72252, 29286, 72252, 980064, 22167, 2530-00-499-9099, 00-499-9099, 2530004999099, 004999099
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-499-9099 | 11405 ( LINING, FRICTION ) |
Drawings & Photos | NSN 2530-00-499-9099
Cross Reference | NSN 2530-00-499-9099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22167 | 30076 | NACCO MATERIALS HANDLING GROUP INC DBA HYSTER |
| 29286 | 30076 | NACCO MATERIALS HANDLING GROUP INC DBA HYSTER |
| 72252 | 23926 | KOMATSU AMERICA INTL CO |
| 72252 | 45RP7 | DRESSTA NORTH AMERICA LTD |
| 980064 | 12603 | CLARK EQUIPMENT CO |
| 980064 | 89749 | CLARK MATERIAL HANDLING COMPANY |
| A24-10D | 05415 | LINDE LIFT TRUCK CORP. |
| A24-10D | 08018 | BORG-WARNER CORP |
| A24-10D | 31577 | JAEGER MACHINE CO |
| A24-10D | 55643 | A-T-O CONSTRUCTION EQUIPMENT DIV |
| A24-10D | 556A6 | LINDE MATERIAL HANDLING NORTH AMERICA CORP |
| A24-10D | 79410 | LIBERTY VENTURES INTI LLC |
| D72252 | 23926 | KOMATSU AMERICA INTL CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-499-9099
Technical Data | NSN 2530-00-499-9099
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | ASBESTOS COMPOSITION |
| FABRICATION METHOD | WOVEN |
| APPLICATION TYPE | DRY |
| SURFACE CONDITION AND LOCATION | ONE SIDE GROUND |
| LINING STYLE | 11 RECTANGULAR BLOCK PLAIN |
| WIDTH | 2.219 INCHES MINIMUM AND 2.281 INCHES MAXIMUM |
| OVERALL LENGTH | 24.625 INCHES MINIMUM AND 24.688 INCHES MAXIMUM |
| THICKNESS | 0.156 INCHES NOMINAL |
| ATTACHMENT METHOD | RIVETED |

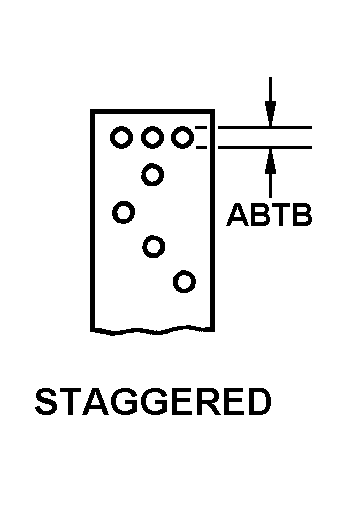

| HOLE ARRANGEMENT STYLE | C9 STAGGERED |
| MOUNTING HOLE DIAMETER | ANY ACCEPTABLE |
| HOLE TYPE AND QUANTITY | 20 COUNTERBORED |
| FEATURES PROVIDED | RIGID FRICTION LINING |
| MANUFACTURERS CODE | 79410 |
| DESIGN CONTROL REFERENCE | A24-10D |
Restrictions/Controls & Freight Information | NSN 2530-00-499-9099
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 2530-00-499-9099
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
