NSN 2530-00-495-8857 BN01680, BN0-1680, F1461
Product Details | MASTER HYDRAULIC BRAKE CYLINDER ASSEMBLY
2530-00-495-8857 A device consisting of a reservoir and/or CYLINDER, HYDRAULIC BRAKE, MASTER with other components necessary to displace fluid from a central source for actuating the slave or wheel cylinders of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: BN01680, BN0-1680, F1461, FE1461, 10262281, 102-6228-1, 426700, 2530-00-495-8857, 00-495-8857, 2530004958857, 004958857
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-495-8857 | 11007 ( CYLINDER ASSEMBLY, HYDRAULIC BRAKE, MASTER ) |
Drawings & Photos | NSN 2530-00-495-8857
Demand History | NSN 2530-00-495-8857
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-495-8857 | 2014-07-210 | 20 | DIBBS |
| 2530-00-495-8857 | 2012-08-229 | 30 | DIBBS |
| 2530-00-495-8857 | 2008-04-116 | 52 | DIBBS |
Cross Reference | NSN 2530-00-495-8857
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-495-8857
Related Products | NSN 2530-00-495-8857
Technical Data | NSN 2530-00-495-8857
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 5.125 INCHES NOMINAL |
| EXTENDED LENGTH | 8.656 INCHES NOMINAL |
| COMPRESSED LENGTH | 7.219 INCHES NOMINAL |
| BODY MATERIAL | IRON, CAST |
| BORE DIAMETER | 1.125 INCHES NOMINAL |

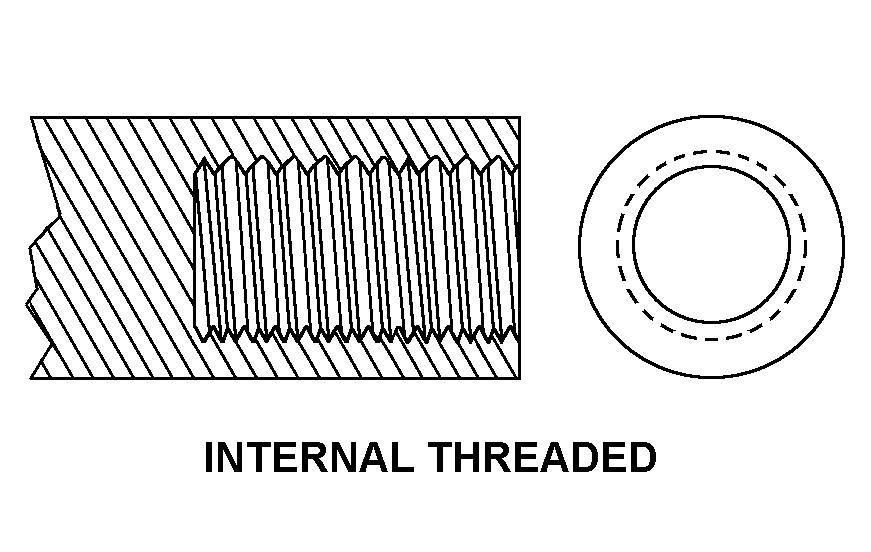

| FIRST PISTON ROD END STYLE | 8 INTERNAL THREADED |
| FIRST PISTON ROD END THREAD SERIES DESIGNATOR | UNF |
| FIRST PISTON ROD END THREAD DIAMETER | 0.438 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD QUANTITY PER INCH | 20 |
| FIRST PISTON ROD END THREAD CLASS | 2B |
| FIRST PISTON ROD END THREAD DIRECTION | RIGHT-HAND |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | BOSS CENTER SECTION |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 1 TWO HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING PROVISIONS | 3.438 INCHES NOMINAL |
| MOUNTING FACILITY DIAMETER | 0.391 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 1 CYLINDER HEAD END |
| PORT STYLE | 5 GASKET SEAL |
| PORT THREAD SERIES DESIGNATOR | UNF |
| PORT THREAD DIAMETER | 0.500 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 20 |
| PORT THREAD CLASS | 2B |
| TEMP RATING | NOT RATED |
| RESERVOIR TYPE | INTEGRAL |
| ACTUATION METHOD | DIRECT |
| FEATURES PROVIDED | FILLER PLUG AND RUBBER BOOT |
| SPECIAL FEATURES | PISTON ROD END THD FEMALE STYLE,0.812 IN.DEEP THD |
