NSN 2530-00-430-1862 CL7589, CL758913CR12, CL7589-13CR12
Product Details | FRICTION LINING
2530-00-430-1862 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: CL7589, CL758913CR12, CL7589-13CR12, CL8143, S1617, S1617KIT, 204010, 2-04010, 403579, 7589, 8143, 2530-00-430-1862, 00-430-1862, 2530004301862, 004301862
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-430-1862 | 11405 ( LINING, FRICTION ) |
Drawings & Photos | NSN 2530-00-430-1862
Cross Reference | NSN 2530-00-430-1862
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-04010 | 77873 | GKN ROCKFORD, INC |
| 403579 | 00447 | WABCO CONSTRUCTION AND MINING EQUIPMENT GROUP INDIANAPOLIS PLANT |
| 7589 | 23926 | KOMATSU AMERICA INTL CO |
| 8143 | 23926 | KOMATSU AMERICA INTL CO |
| CL7589 | 23926 | KOMATSU AMERICA INTL CO |
| CL7589-13CR12 | 77873 | GKN ROCKFORD, INC |
| CL8143 | 23926 | KOMATSU AMERICA INTL CO |
| S1617 | 79370 | THE S K WELLMAN CORP DBA WELLMAN FRICTION PRODUCTS |
| S1617KIT | 79370 | THE S K WELLMAN CORP DBA WELLMAN FRICTION PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-430-1862
Technical Data | NSN 2530-00-430-1862
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | STEEL |
| SURFACE CONDITION AND LOCATION | ONE SIDE GROOVED |

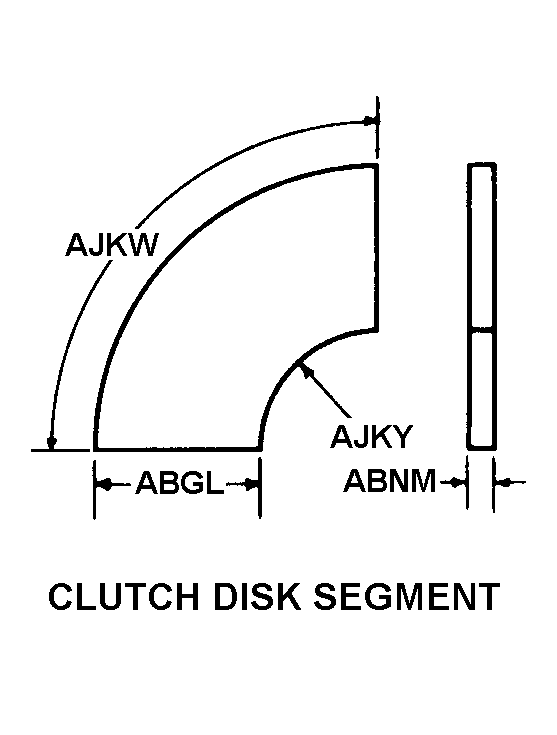

| LINING STYLE | 6 CLUTCH DISK SEGMENT |
| ARC LENGTH | 8.000 INCHES NOMINAL |
| ATTACHMENT METHOD | RIVETED |

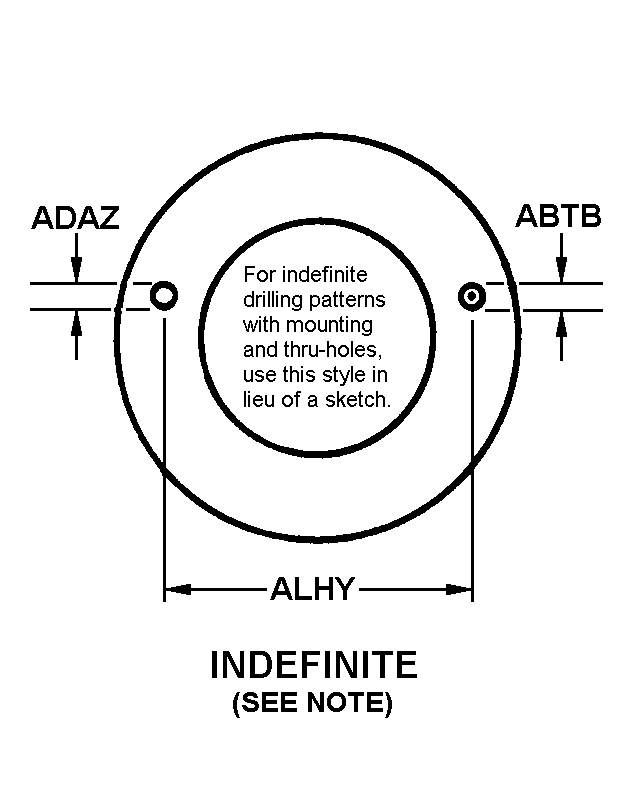

| HOLE ARRANGEMENT STYLE | B1 INDEFINITE |
| MOUNTING HOLE DIAMETER | 0.400 INCHES MINIMUM AND 0.420 INCHES MAXIMUM |
| HOLE TYPE AND QUANTITY | 7 COUNTERBORED |
Restrictions/Controls & Freight Information | NSN 2530-00-430-1862
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 014640 | BRAKE BLOCKS / BRAKE LININGS |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
