NSN 2530-00-391-3994 M2652, MC2657, N10507
Product Details | MASTER HYDRAULIC BRAKE CYLINDER ASSEMBLY
2530-00-391-3994 A device consisting of a reservoir and/or CYLINDER, HYDRAULIC BRAKE, MASTER with other components necessary to displace fluid from a central source for actuating the slave or wheel cylinders of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: M2652, MC2657, N10507, N5507, NU2652, A8QH2140A, E2652, F2652, FE21500, FE2652, FE2657, 1120, 174127, 174-127, 2657, 429917, 53365R91, 2530-00-391-3994, 00-391-3994, 2530003913994, 003913994
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-391-3994 | 11007 ( CYLINDER ASSEMBLY, HYDRAULIC BRAKE, MASTER ) |
Drawings & Photos | NSN 2530-00-391-3994
Demand History | NSN 2530-00-391-3994
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1120 | 2009-03-76 | 5 | Turkey |
| FE21500 | 2007-08-242 | 9 | US |
Cross Reference | NSN 2530-00-391-3994
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1120 | 06840 | BENDIX CORP THE |
| 174-127 | 76462 | DELCO MORAINE DIV OF GENERAL MOTORS CORP |
| 2657 | 19239 | ECHLIN INC |
| 2657 | 34558 | BRAKE PARTS CO SUB OF THE ECHLIN MFG CO |
| 429917 | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| 429917 | 65282 | WHITE MOTOR CORP |
| 53365R91 | 31007 | NAVISTAR INTL CORP |
| 53365R91 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| A8QH2140A | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| A8QH2140A | 57526 | FORD MOTOR CO |
| E2652 | 80724 | EIS BRAKE PARTS DIV OF STANDARD MOTOR PRODUCTS INC |
| F2652 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FE21500 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FE2652 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FE2657 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| M2652 | 71425 | AIRTEX PRODUCTS DIV OF UIS INC |
| MC2657 | 66614 | TRW INC REPLACEMENT PARTS DIV |
| MC2657 | 76761 | C. E. NIEHOFF & CO. |
| N10507 | 56442 | DIAMOND REO TRUCK CO |
| N5507 | 56442 | DIAMOND REO TRUCK CO |
| NU2652 | 34558 | BRAKE PARTS CO SUB OF THE ECHLIN MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-391-3994
Related Products | NSN 2530-00-391-3994
Technical Data | NSN 2530-00-391-3994
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 3.562 INCHES NOMINAL |
| OVERALL HEIGHT | 5.875 INCHES NOMINAL |
| EXTENDED LENGTH | 9.094 INCHES NOMINAL |
| COMPRESSED LENGTH | 7.656 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| BORE DIAMETER | 1.500 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD SERIES DESIGNATOR | UNF |
| FIRST PISTON ROD END THREAD DIAMETER | 0.562 INCHES NOMINAL |
| FIRST PISTON ROD END THREAD QUANTITY PER INCH | 18 |
| FIRST PISTON ROD END THREAD CLASS | 2B |
| FIRST PISTON ROD END THREAD DIRECTION | RIGHT-HAND |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE PISTON ROD END |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |

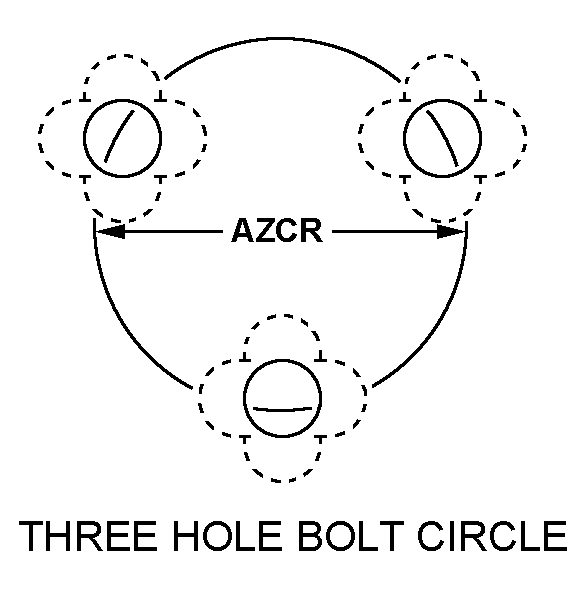

| MOUNTING PROVISION ARRANGEMENT STYLE | 25 THREE HOLE BOLT CIRCLE |
