NSN 2530-00-366-8336 MC176, E77007, F80980
Product Details | MASTER HYDRAULIC BRAKE CYLINDER ASSEMBLY
2530-00-366-8336 A device consisting of a reservoir and/or CYLINDER, HYDRAULIC BRAKE, MASTER with other components necessary to displace fluid from a central source for actuating the slave or wheel cylinders of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: MC176, E77007, F80980, 335075, 36377, 8129731, 1522, 2530-00-366-8336, 00-366-8336, 2530003668336, 003668336
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 22 FEB 1974 | 00-366-8336 | 11007 ( CYLINDER ASSEMBLY, HYDRAULIC BRAKE, MASTER ) |
Drawings & Photos | NSN 2530-00-366-8336
Cross Reference | NSN 2530-00-366-8336
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1522 | 06840 | BENDIX CORP THE |
| 335075 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 335075 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 36377 | 19239 | ECHLIN INC |
| 8129731 | 34623 | AM GENERAL, LLC |
| E77007 | 80724 | EIS BRAKE PARTS DIV OF STANDARD MOTOR PRODUCTS INC |
| F80980 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| MC176 | 66614 | TRW INC REPLACEMENT PARTS DIV |
| MC176 | 76761 | C. E. NIEHOFF & CO. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-366-8336
Related Products | NSN 2530-00-366-8336
Technical Data | NSN 2530-00-366-8336
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 2.705 INCHES NOMINAL |
| OVERALL HEIGHT | 5.410 INCHES NOMINAL |
| COMPRESSED LENGTH | 9.000 INCHES NOMINAL |
| BODY MATERIAL | STEEL |
| BORE DIAMETER | 1.125 INCHES NOMINAL |
| MOUNTING TYPE AND LOCATION | FLANGE CENTER SECTION |
| MOUNTING PROVISION | UNTHREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 1 TWO HOLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING PROVISIONS | 3.406 INCHES NOMINAL |
| MOUNTING FACILITY DIAMETER | 0.406 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 2 CENTER SECTION |

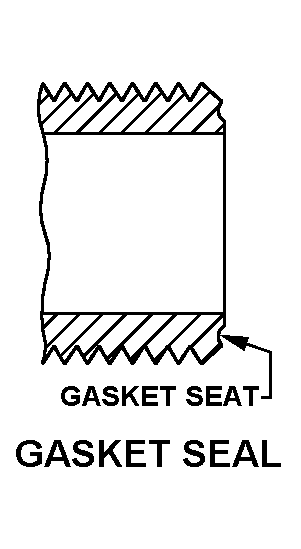

| PORT STYLE | 22 GASKET SEAL |
