NSN 2530-00-352-3948 11550, 00-352-3948, 003523948
Product Details | FRICTION LINING
2530-00-352-3948 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: 11550, 2530-00-352-3948, 00-352-3948, 2530003523948, 003523948
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-352-3948 | 11405 ( LINING, FRICTION ) |
Drawings & Photos | NSN 2530-00-352-3948
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-352-3948
Technical Data | NSN 2530-00-352-3948
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | ASBESTOS COMPOSITION |
| FABRICATION METHOD | MOLDED |
| STRENGTHENING FEATURE | INTERWOVEN WIRE |
| APPLICATION TYPE | DRY |
| SURFACE CONDITION AND LOCATION | BOTH SIDES GROUND |
| LINING STYLE | 5 CLUTCH DISK |
| MAJOR DIAMETER | 12.875 INCHES NOMINAL |
| THICKNESS | 0.156 INCHES NOMINAL |
| MINOR DIAMETER | 7.188 INCHES NOMINAL |
| ATTACHMENT METHOD | RIVETED |

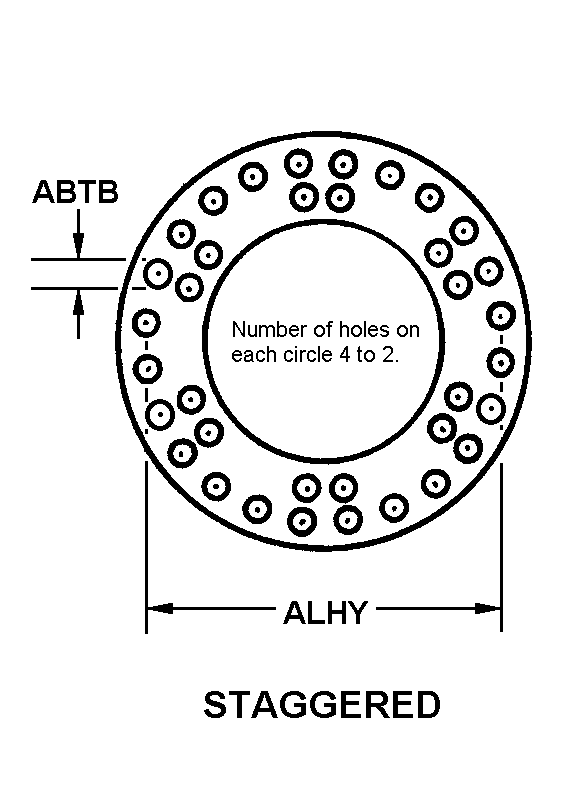

| HOLE ARRANGEMENT STYLE | B12 STAGGERED |
| MOUNTING HOLE DIAMETER | ANY ACCEPTABLE |
| MOUNTING HOLE CIRCLE DIAMETER | ANY ACCEPTABLE |
| HOLE TYPE AND QUANTITY | 36 COUNTERBORED |
| CIRCULAR PATTERN HOLE TYPE AND QUANTITY | 24 COUNTERBORED OUTER SECURING CIRCLE 12 COUNTERBORED INNER SECURING CIRCLE |
| FEATURES PROVIDED | RIGID FRICTION LINING |
Restrictions/Controls & Freight Information | NSN 2530-00-352-3948
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
