NSN 2530-00-278-6577 CL4279, CL7563, CL812613
Product Details | FRICTION LINING
2530-00-278-6577 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: CL4279, CL7563, CL812613, CL-8126-13, CL903816, CL9038-16, SA28615, ST1517, EW1517, RDCL7563, 108954, 108954H1, 1517, 1517P, 151HB313, 265317R1, 402430, 50423DX, 2530-00-278-6577, 00-278-6577, 2530002786577, 002786577
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-278-6577 | 11405 ( LINING, FRICTION ) |
Drawings & Photos | NSN 2530-00-278-6577
Demand History | NSN 2530-00-278-6577
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1517 | 2012-03-88 | 11 | United States |
| 108954 | 2011-03-89 | 1 | Malaysia |
Cross Reference | NSN 2530-00-278-6577
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108954 | 29510 | KOMATSU AMERICAN INTL CO |
| 108954H1 | 29510 | KOMATSU AMERICAN INTL CO |
| 1517 | 49944 | RAYBESTOS-MANHATTAN INC |
| 1517 | 79370 | THE S K WELLMAN CORP DBA WELLMAN FRICTION PRODUCTS |
| 1517 | 82470 | MUZZIO BROS YACHT YARD |
| 1517 | 82740 | UNIVERSAL FRICTION COMPOSITES FRICTION DIV |
| 1517 | 84601 | FRICTION MATERIALS STANDARDS INSTITUTE INC |
| 1517P | 79370 | THE S K WELLMAN CORP DBA WELLMAN FRICTION PRODUCTS |
| 151HB313 | 89619 | MACK TRUCKS, INC. DBA MACUNGIE OPERATIONS |
| 265317R1 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 402430 | 00447 | WABCO CONSTRUCTION AND MINING EQUIPMENT GROUP INDIANAPOLIS PLANT |
| 50423DX | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| CL-8126-13 | 77873 | GKN ROCKFORD, INC |
| CL4279 | 77873 | GKN ROCKFORD, INC |
| CL7563 | 40152 | VME AMERICAS INC SUB OF VME GROUP N V |
| CL7563 | 77873 | GKN ROCKFORD, INC |
| CL9038-16 | 77873 | GKN ROCKFORD, INC |
| EW1517 | 49944 | RAYBESTOS-MANHATTAN INC |
| RDCL7563 | 40152 | VME AMERICAS INC SUB OF VME GROUP N V |
| SA28615 | 23926 | KOMATSU AMERICA INTL CO |
| ST1517 | 49944 | RAYBESTOS-MANHATTAN INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-278-6577
Technical Data | NSN 2530-00-278-6577
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | ASBESTOS-METALLIC COMPOSITION |
| FABRICATION METHOD | MOLDED |
| APPLICATION TYPE | DRY |
| SURFACE CONDITION AND LOCATION | ONE SIDE GROUND |
| LINING STYLE | 5 CLUTCH DISK |
| MAJOR DIAMETER | 15.000 INCHES NOMINAL |
| THICKNESS | 0.188 INCHES NOMINAL |
| MINOR DIAMETER | 8.000 INCHES NOMINAL |
| ATTACHMENT METHOD | RIVETED |

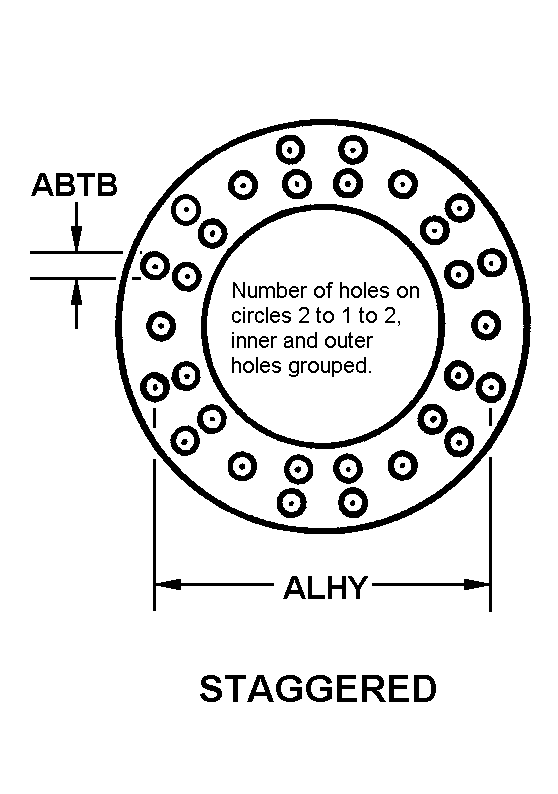

| HOLE ARRANGEMENT STYLE | B13 STAGGERED |
| MOUNTING HOLE DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE DIAMETER | 13.750 INCHES NOMINAL AND 9.250 INCHES NOMINAL |
| CIRCULAR PATTERN HOLE TYPE AND QUANTITY | 12 COUNTERBORED OUTER SECURING CIRCLE 12 COUNTERBORED INNER SECURING CIRCLE |
| FEATURES PROVIDED | FLEXIBLE FRICTION LINING |
| SPECIAL FEATURES | 6 COUNTERBORED HOLES 0.188 IN. DIA EQUALLY SPACED ON 11.500 IN. BOLT CIRCLE DIA |
Restrictions/Controls & Freight Information | NSN 2530-00-278-6577
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 2530-00-278-6577
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
