Product Details | REMOTE CONTROL LEVER

2520-00-740-9434 A rigid item usually in the form of an arm of various shapes and cross sections, containing two or more holes so spaced that one serves as a pivot with or without hubs and must have a definite means for securing to a shaft (such as threaded hole for set-screw, keyway(s), splines, serrations or some clamping device). The other hole(s) connect(s) to CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; or CLEVIS, ROD END; to provide transmission of movement to other parts of the mechanism. See also BELL CRANK. For manually operated items see LEVER, MANUAL CONTROL.20311900057Specialized Test and Handling Equipment, Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment

Part Alternates: KC6702, PMC7409434, PMC740-9434, 7409434, 80737H, 2520-00-740-9434, 00-740-9434, 2520007409434, 007409434

Vehicular Equipment Components | Vehicular Power Transmission Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
25	01 JAN 1963	00-740-9434	22099 ( LEVER, REMOTE CONTROL )

Drawings & Photos | NSN 2520-00-740-9434

Part Number	Request Date	QTY	Origin
2520-00-740-9434	2018-09-261	1	US
2520-00-740-9434	2010-01-04	2	DIBBS
2520-00-740-9434	2009-07-209	4	DIBBS

Cross Reference | NSN 2520-00-740-9434

Part Number	Cage Code	Manufacturer
2520007409434	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
7409434	02386	HIGHLAND AUTO & TRUCK SUPPLY
7409434	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
80737H	92679	NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION
KC6702	56442	DIAMOND REO TRUCK CO
PMC740-9434	53512	PETERS MACHINE CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2520-00-740-9434

Compare

Related Products | NSN 2520-00-740-9434

2520-00-740-9540, 2520-00-740-9542, 2520-00-740-9551, 2520-00-740-9572, 2520-00-740-9574

Technical Data | NSN 2520-00-740-9434

Characteristic	Specifications
MATERIAL	IRON
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-I-666, GRADE 2 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT	PAINT AND ENAMEL

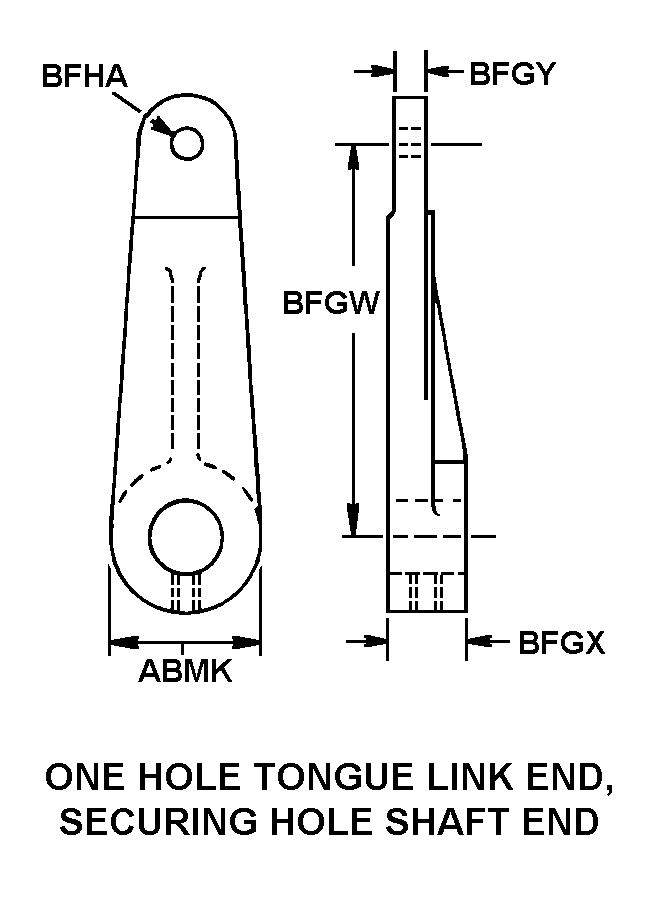

STYLE DESIGNATOR	A5 ONE HOLE TONGUE LINK END, SECURING HOLE SHAFT END
