NSN 2520-00-251-6190 2801828, 423985C11, 00-251-6190
Product Details | REMOTE CONTROL LEVER
2520-00-251-6190 A rigid item usually in the form of an arm of various shapes and cross sections, containing two or more holes so spaced that one serves as a pivot with or without hubs and must have a definite means for securing to a shaft (such as threaded hole for set-screw, keyway(s), splines, serrations or some clamping device). The other hole(s) connect(s) to CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; or CLEVIS, ROD END; to provide transmission of movement to other parts of the mechanism. See also BELL CRANK. For manually operated items see LEVER, MANUAL CONTROL.20311900057Specialized Test and Handling Equipment, Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 2801828, 423985C11, 2520-00-251-6190, 00-251-6190, 2520002516190, 002516190
Vehicular Equipment Components | Vehicular Power Transmission Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-251-6190 | 22099 ( LEVER, REMOTE CONTROL ) |
Drawings & Photos | NSN 2520-00-251-6190
Demand History | NSN 2520-00-251-6190
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2520-00-251-6190 | 2009-08-228 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2520-00-251-6190
Technical Data | NSN 2520-00-251-6190
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

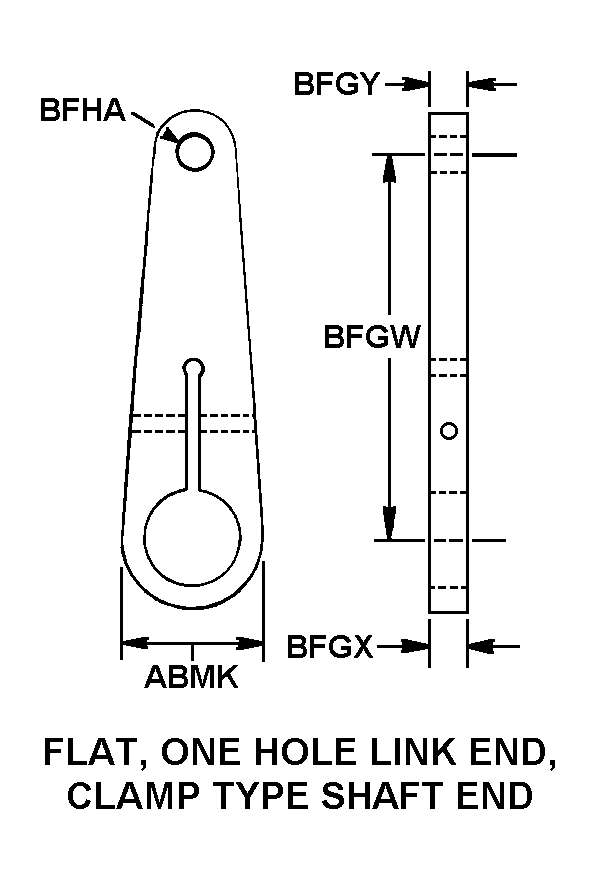

| STYLE DESIGNATOR | A10 FLAT, ONE HOLE LINK END, CLAMP TYPE SHAFT END |
| OVERALL WIDTH | 1.268 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LINK AND SHAFT HOLES | 3.062 INCHES NOMINAL |
| SHAFT END THICKNESS | 0.525 INCHES NOMINAL |
| LINK END THICKNESS | 0.122 INCHES NOMINAL |
| LINK END HOLE DIAMETER | 0.251 INCHES NOMINAL |
| BORE TYPE | D-SHAPED |
| BORE RADIUS | 0.413 INCHES NOMINAL |
| BORE LENGTH | 0.525 INCHES NOMINAL |
| DISTANCE FROM RADIAL CENTER TO FLAT SURFACE | 0.352 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2520-00-251-6190
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
