NSN 2510-01-484-0659 14-12-29.53-ME-ME-65LBS, 14122953MEME65LBS, 9452976-01
Product Details | DIRECT ACTION SHOCK ABSORBER
2510-01-484-0659 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Part Alternates: 14-12-29.53-ME-ME-65LBS, 14122953MEME65LBS, 9452976-01, 2510-01-484-0659, 01-484-0659, 2510014840659, 014840659, 945297601
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 17 APR 2001 | 01-484-0659 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |
Drawings & Photos | NSN 2510-01-484-0659
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2510-01-484-0659
Technical Data | NSN 2510-01-484-0659
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | GAS |
| PISTON END CONNECTION STYLE | 13 BEARING |
| PISTON END NOMINAL INSIDE DIAMETER | 0.310 INCHES |
| PISTON END NOMINAL OUTSIDE DIAMETER | 0.790 INCHES |
| PISTON END NOMINAL SHANK LENGTH | 0.750 INCHES |

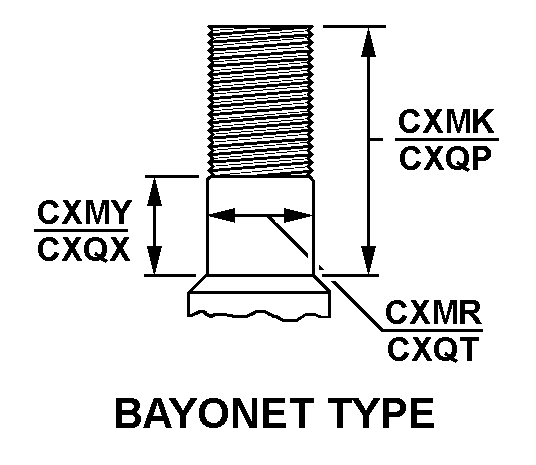

| CYLINDER END CONNECTION STYLE | 18 BAYONET TYPE |
| NOMINAL EXTENDED LENGTH | 32.060 INCHES |
| PROTECTIVE SHIELD TYPE | NO PROTECTION |
| SPECIAL FEATURES | SPRING, HELICAL; 60LBS PRESSURE; 2 PER END ITEM |
| III END ITEM IDENTIFICATION | RSTS, REENTRY SYSTEMS TEST SET |
| III FSC APPLICATION DATA | DRAWING NAME IS - SPRING,GAS 12 INCH STROKE |
Restrictions/Controls & Freight Information | NSN 2510-01-484-0659
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 2510-01-484-0659
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | NB | SU:MINUTEMAN III ITEMS |
| Budget Code | T | 2557X3020:Missile Replenishment Spares |
| Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
