NSN 2510-01-028-8573 D11043, D-11043, 11669371
Product Details | DIRECT ACTION SHOCK ABSORBER
2510-01-028-8573 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Part Alternates: D11043, D-11043, 11669371, 2510PL0943325, 302348, 4975532, 98005731, 2510-01-028-8573, 01-028-8573, 2510010288573, 010288573
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 12 OCT 1976 | 01-028-8573 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |

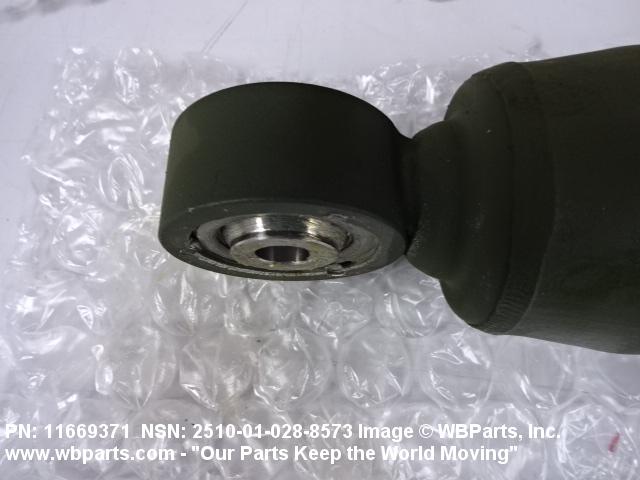

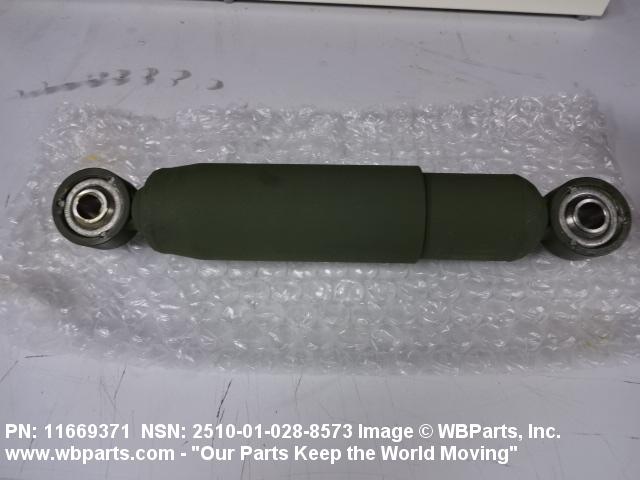

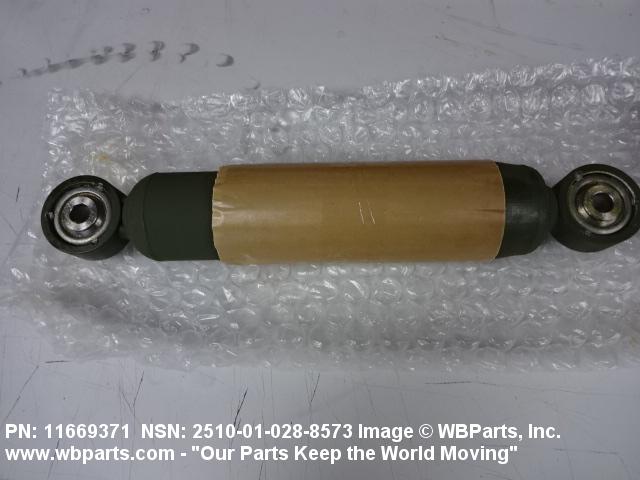

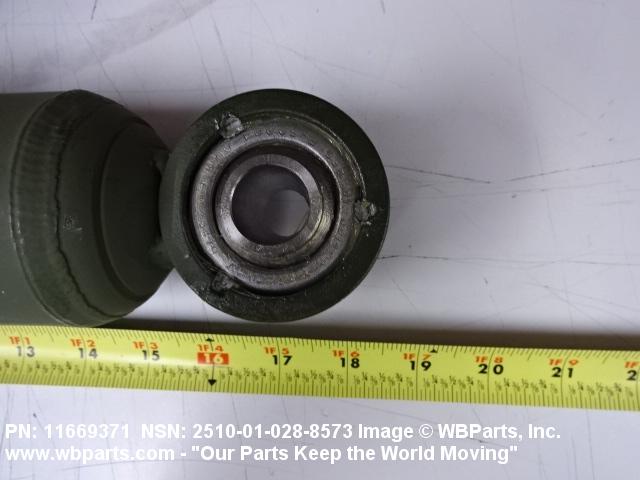

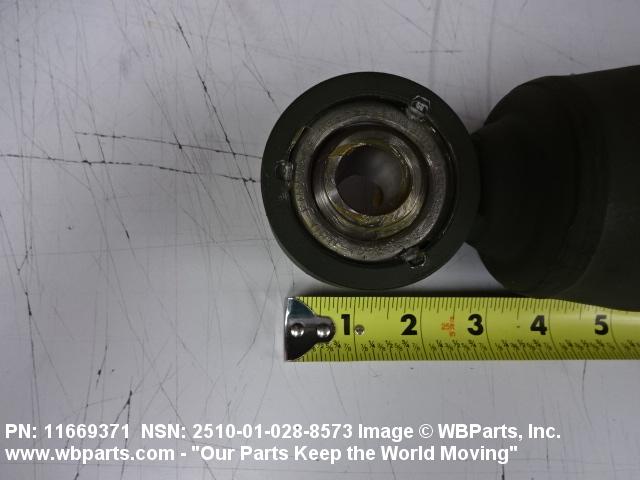

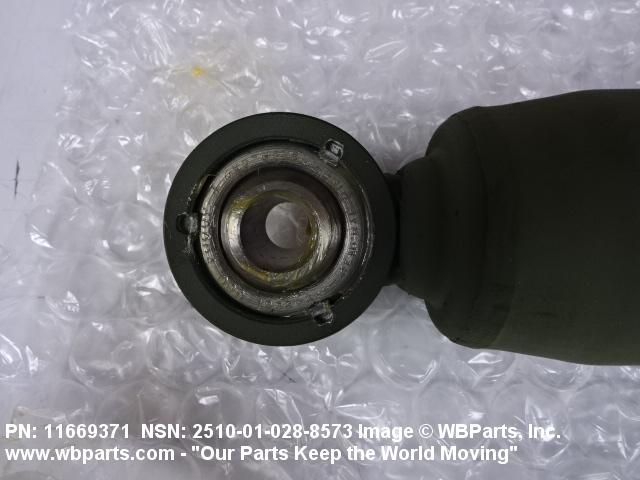

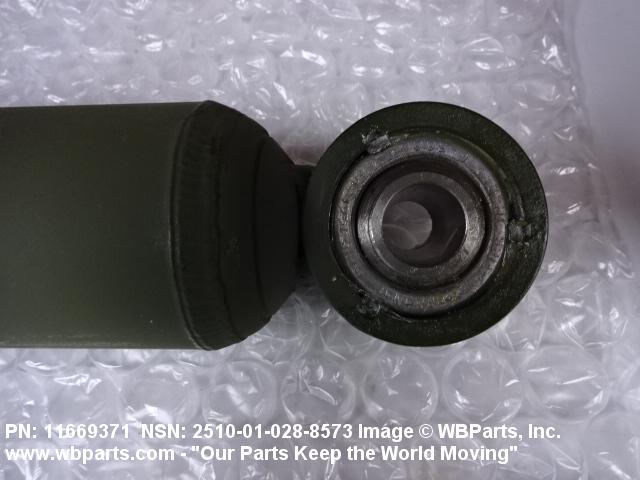

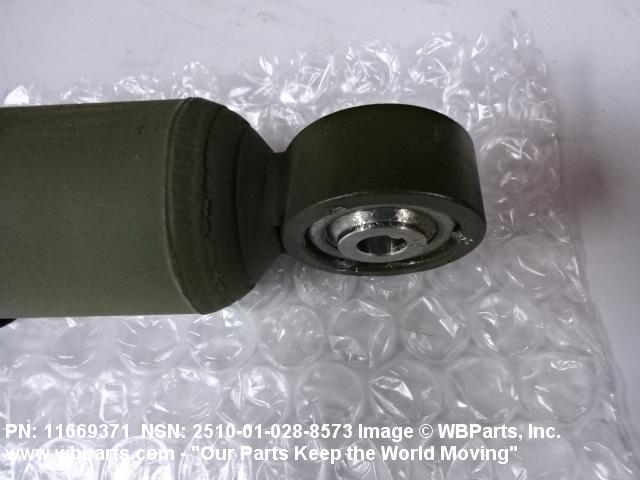

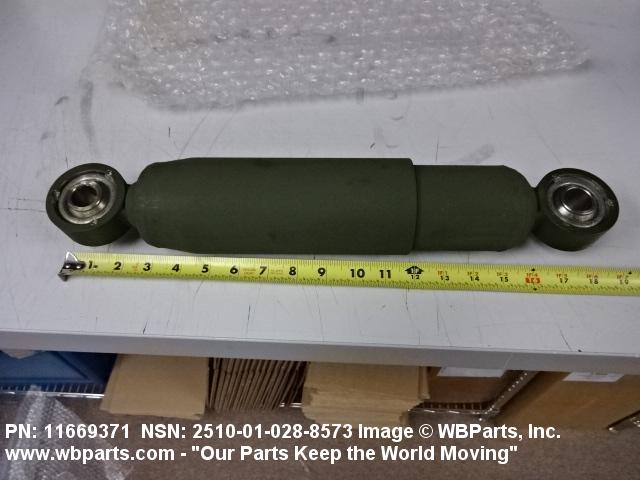

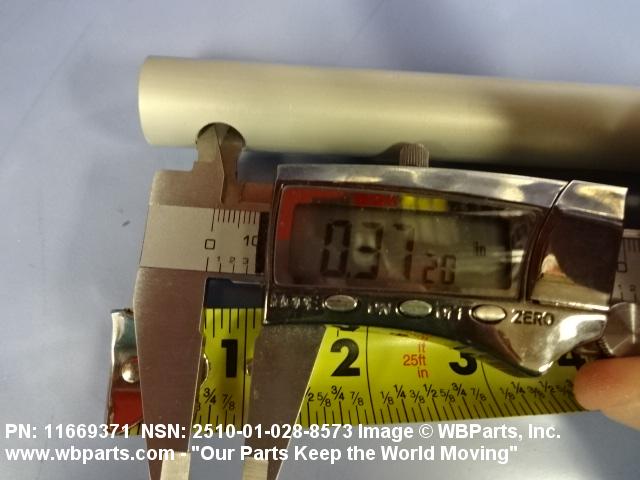

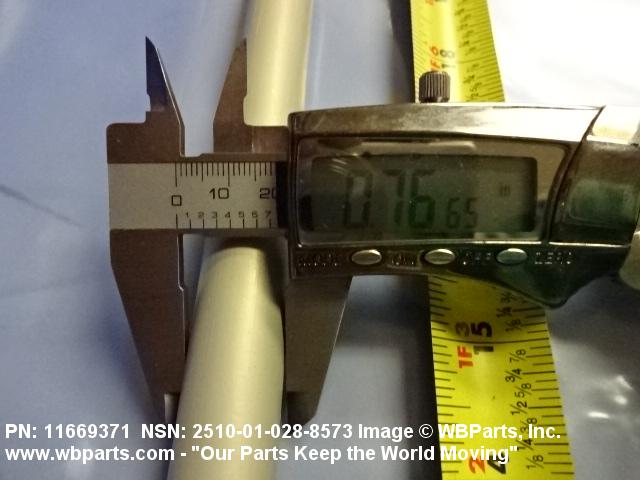

Drawings & Photos | NSN 2510-01-028-8573
Demand History | NSN 2510-01-028-8573
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2510-01-028-8573 | 2024-04-113 | 8 | United Kingdom |
| 2510-01-028-8573 | 2024-02-54 | 3 | UA |
| D11043 | 2024-02-37 | 90 | PK |
| 2510-01-028-8573 | 2023-10-286 | 100 | DE |
| 2510-01-028-8573 | 2023-07-191 | 1 | KW |
| 2510-01-028-8573 | 2022-11-334 | 78 | Taiwan |
| 2510-01-028-8573 | 2022-10-293 | 20 | AE |
| 2510-01-028-8573 | 2022-09-250 | 20 | US |
| 2510-01-028-8573 | 2022-06-158 | 2 | United States |
| 2510-01-028-8573 | 2022-05-143 | 2 | United States |
| 2510-01-028-8573 | 2021-03-88 | 400 | LT |
| 2510-01-028-8573 | 2021-03-84 | 400 | Greece |
| 2510-01-028-8573 | 2020-10-293 | 34 | TW |
| 2510-01-028-8573 | 2020-07-184 | 1 | Brazil |
| 2510-01-028-8573 | 2020-04-111 | 12 | US |
| 010288573 | 2019-10-303 | 18 | United States |
| 2510-01-028-8573 | 2019-04-99 | 1 | Brazil |
| 2510-01-028-8573 | 2019-01-06 | 2 | CA |
| 2510-01-028-8573 | 2018-08-219 | 40 | PK |
| 2510-01-028-8573 | 2018-08-217 | 2 | DIBBS |
| 2510-01-028-8573 | 2018-08-215 | 3 | CA |
| 2510-01-028-8573 | 2018-07-206 | 1 | DIBBS |
| 2510-01-028-8573 | 2018-03-80 | 1 | US |
| 11669371 | 2017-12-341 | 46 | Israel |
| 11669371 | 2017-07-192 | 1046 | PK |
| 2510-01-028-8573 | 2017-07-192 | 1046 | MANUAL |
| 2510-01-028-8573 | 2016-10-299 | 12 | United States |
| 2510-01-028-8573 | 2016-10-299 | 418 | DIBBS |
| 2510-01-028-8573 | 2016-08-220 | 219 | DIBBS |
| 2510-01-028-8573 | 2016-07-184 | 6 | United States |
| 2510-01-028-8573 | 2016-05-135 | 358 | DIBBS |
| 2510-01-028-8573 | 2016-02-39 | 12 | Israel |
| 2510-01-028-8573 | 2015-12-342 | 358 | DIBBS |
| 2510-01-028-8573 | 2015-08-215 | 801 | DIBBS |
| 2510-01-028-8573 | 2015-06-166 | 615 | DIBBS |
| 2510-01-028-8573 | 2015-05-146 | 801 | DIBBS |
| 2510-01-028-8573 | 2015-05-130 | 601 | DIBBS |
| 2510-01-028-8573 | 2015-04-96 | 801 | DIBBS |
| 2510-01-028-8573 | 2015-04-95 | 287 | DIBBS |
| 2510-01-028-8573 | 2015-01-30 | 260 | TW |
| 2510-01-028-8573 | 2014-12-364 | 130 | DIBBS |
| 2510-01-028-8573 | 2014-11-331 | 901 | DIBBS |
| 2510-01-028-8573 | 2014-10-303 | 351 | DIBBS |
| 2510-01-028-8573 | 2014-10-300 | 6 | US |
| 2510-01-028-8573 | 2014-08-238 | 251 | DIBBS |
| 2510-01-028-8573 | 2014-07-201 | 199 | DIBBS |
| 2510-01-028-8573 | 2013-11-315 | 344 | DIBBS |
| 2510-01-028-8573 | 2013-11-310 | 1200 | us |
| 11669371 | 2013-10-302 | 1 | PK |
| 11669371 | 2013-10-297 | 1 | PK |
| 2510-01-028-8573 | 2013-10-289 | 98 | DIBBS |
| 2510-01-028-8573 | 2013-08-234 | 1370 | US |
| 2510-01-028-8573 | 2013-07-196 | 1 | US |
| 2510-01-028-8573 | 2012-04-104 | 30 | MANUAL |
| 2510-01-028-8573 | 2011-10-280 | 1400 | Turkey |
| 11669371 | 2011-06-155 | 30 | PK |
| 11669371 | 2011-06-155 | 30 | PK |
| 2510-01-028-8573 | 2011-06-155 | 30 | MANUAL |
| 2510-01-028-8573 | 2011-06-155 | 30 | MANUAL |
| 2510-01-028-8573 | 2007-10-276 | 50 | Turkey |
| 2510-01-028-8573 | 2007-07-211 | 50 | Turkey |
| 2510-01-028-8573 | 2007-03-60 | 1021 | DIBBS |
Cross Reference | NSN 2510-01-028-8573
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11669371 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 11669371 | 1C852 | GENERAL KINETICS ENGINEERINGCORPORATION |
| 2510PL0943325 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 302348 | H0G87 | WIBA ZEVENAAR B.V. |
| 4975532 | 72560 | GENERAL MOTORS CORP DELCO PRODUCTS DIV |
| D-11043 | 1C852 | GENERAL KINETICS ENGINEERINGCORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2510-01-028-8573
Related Products | NSN 2510-01-028-8573
Technical Data | NSN 2510-01-028-8573
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |
| PISTON END CONNECTION STYLE | 11 RING |
| PISTON END NOMINAL INSIDE DIAMETER | 2.033 INCHES |
| PISTON END NOMINAL OUTSIDE DIAMETER | 2.620 INCHES |
| PISTON END NOMINAL THICKNESS | 1.202 INCHES |
| CYLINDER END CONNECTION STYLE | 11 RING |
| CYLINDER END NOMINAL INSIDE DIAMETER | 2.033 INCHES |
| CYLINDER END NOMINAL OUTSIDE DIAMETER | 2.331 INCHES |
| CYLINDER END NOMINAL THICKNESS | 1.202 INCHES |
| PROTECTIVE SHIELD TYPE | NO PROTECTION |

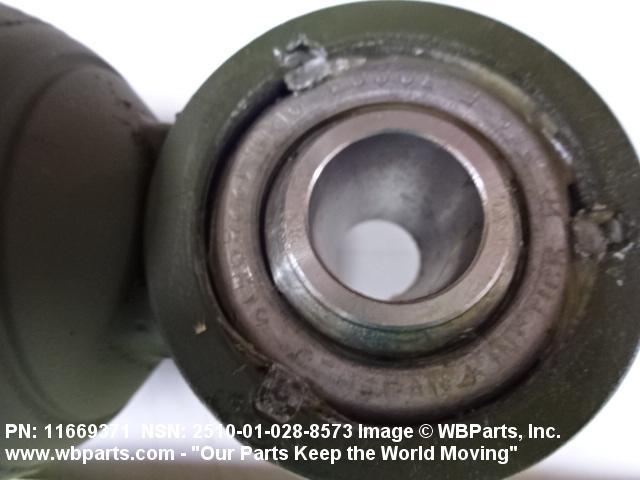

| SPECIAL FEATURES | ITEM FURNISHED WITH TWO BEARINGS,FSCM 93019, P/N 8368-31X MTD END CONNECTIONS;COMPRESSED LENGTH:16.060 IN. MAX.;STROKE LENGTH:8.310 IN. NOM.;HYDRAULIC SYSTEM FLUID CAPACITY:ANY ACCEPTABLE;EXTENDED LENGTH:24.380 IN. MIN.;PLUG FILLER:NOT INCLUDED;SIDE ATTACHED FLUID TANK:NOT INCLUDED;TRAVEL LENGTH:8.310 IN. NOM.;REPAIRABLE FEATURE:NOT INCLUDED;COMPRESSION RESISTANCE:5000.0 LBS;REBOUND RESISTANCE:3000.0 LBS;STROKE,RATED QUANTITY PER MIN.:290;PISTON END AND CYLINDER END CONNECTION THREAD PROVISION:BOTH UNTHREADED |
| MANUFACTURERS CODE | 72560 |
| DESIGN CONTROL REFERENCE | 4975532 |
Restrictions/Controls & Freight Information | NSN 2510-01-028-8573
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019500 | AUTO SHOCK ABSORBERS R PARTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | 25 | UNICOR-Federal Prison Industries Washington, DC 20534 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2510-01-028-8573
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
