NSN 2510-01-450-6352 18273, 01-450-6352, 014506352
Product Details | FIFTH WHEEL KINGPIN
2510-01-450-6352 A metal item designed for mounting to a fifth wheel coupler or fifth wheel upper plate to provide a towing and pivot connection between a truck-tractor or dolly and the semitrailer.
Part Alternates: 18273, 2510-01-450-6352, 01-450-6352, 2510014506352, 014506352
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 17 NOV 1997 | 01-450-6352 | 11407 ( KINGPIN, FIFTH WHEEL ) |
Drawings & Photos | NSN 2510-01-450-6352
Cross Reference | NSN 2510-01-450-6352
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18273 | 26697 | MANITEX LOAD KING, INC. DIV LOAD KING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2510-01-450-6352

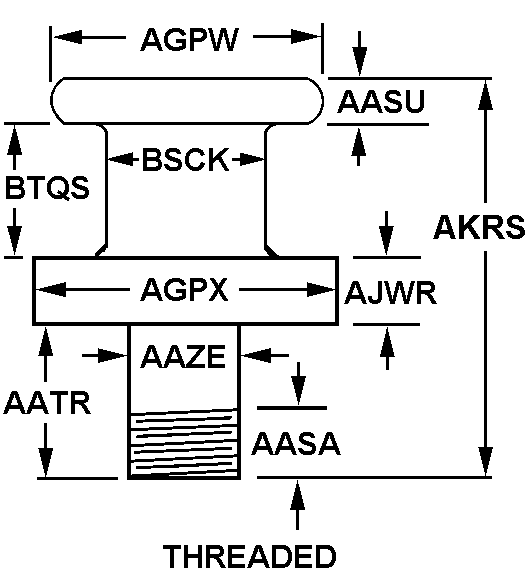

Technical Data | NSN 2510-01-450-6352
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6 THREADED |
| SHANK DIAMETER | 3.000 INCHES NOMINAL |
| HEAD OUTSIDE DIAMETER | 2.812 INCHES NOMINAL |
| SHOULDER OUTSIDE DIAMETER | 2.875 INCHES NOMINAL |
| SHOULDER LENGTH | 1.344 INCHES NOMINAL |
| PIN LENGTH | 8.188 INCHES NOMINAL |
| LOCKING RECESS OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| LOCKING RECESS LENGTH | 1.443 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2510-01-450-6352
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
