NSN 2510-00-706-7973 MS530361, MS-53036-1, SVTG3678
Product Details | FIFTH WHEEL KINGPIN

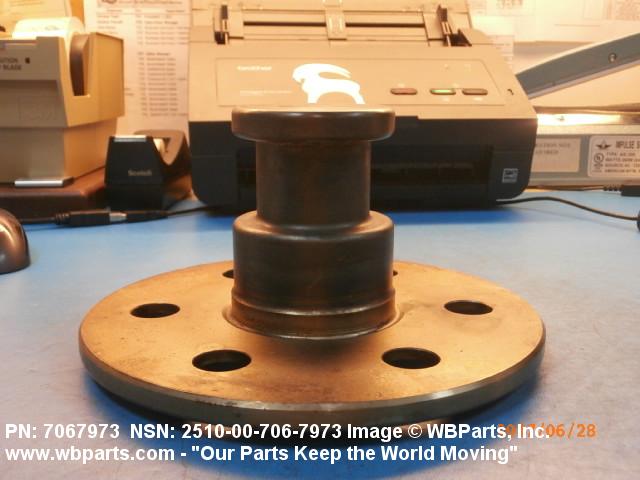

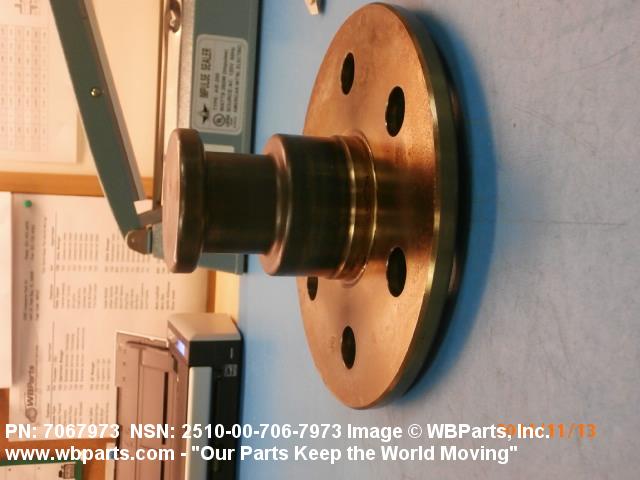

2510-00-706-7973 A metal item designed for mounting to a fifth wheel coupler or fifth wheel upper plate to provide a towing and pivot connection between a truck-tractor or dolly and the semitrailer.
Part Alternates: MS530361, MS-53036-1, SVTG3678, T417H, 12C163, 12C179, 25214, 2-52-14, 355697, 7067973, 2510-00-706-7973, 00-706-7973, 2510007067973, 007067973
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-706-7973 | 11407 ( KINGPIN, FIFTH WHEEL ) |

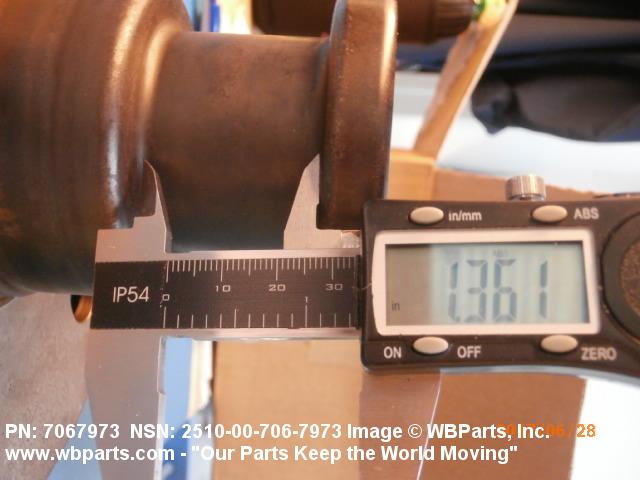

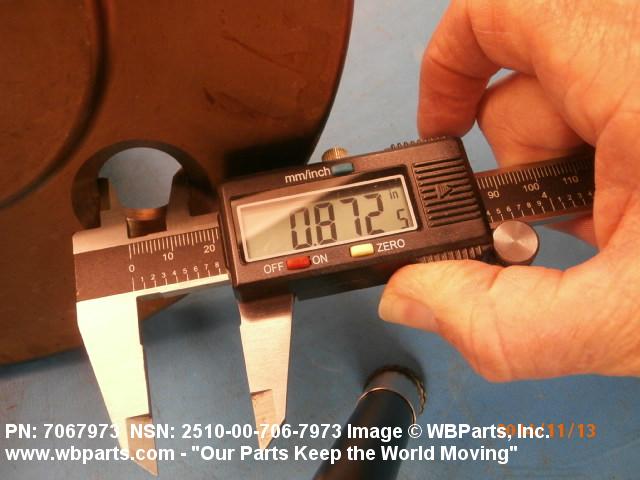

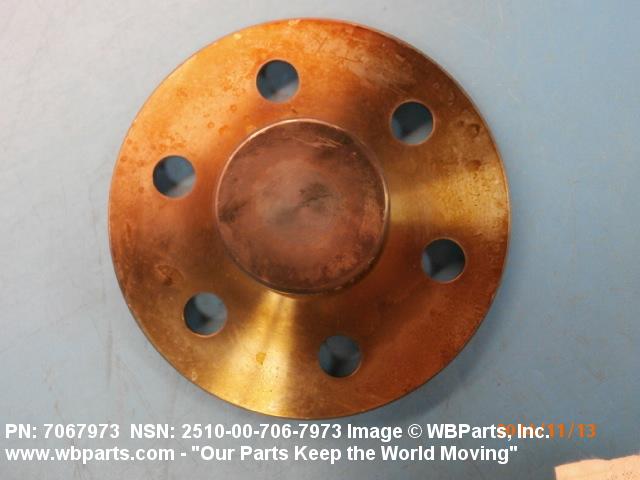

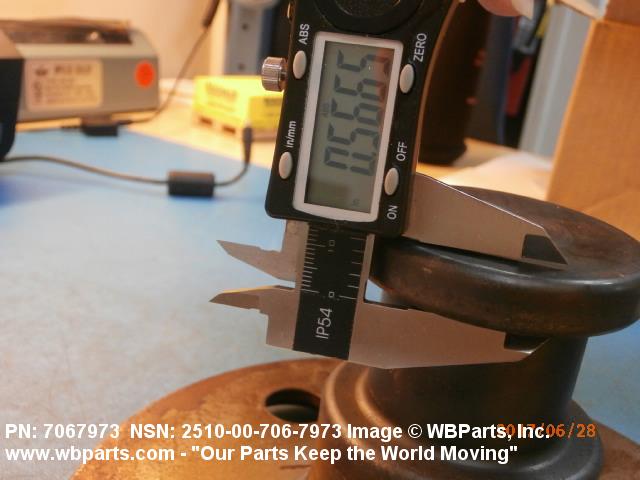

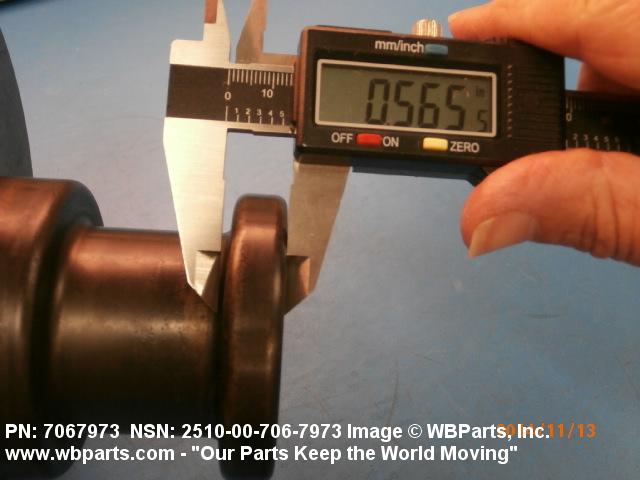

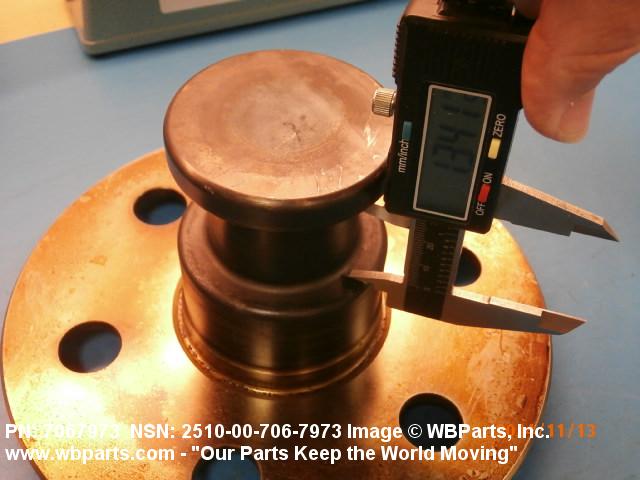

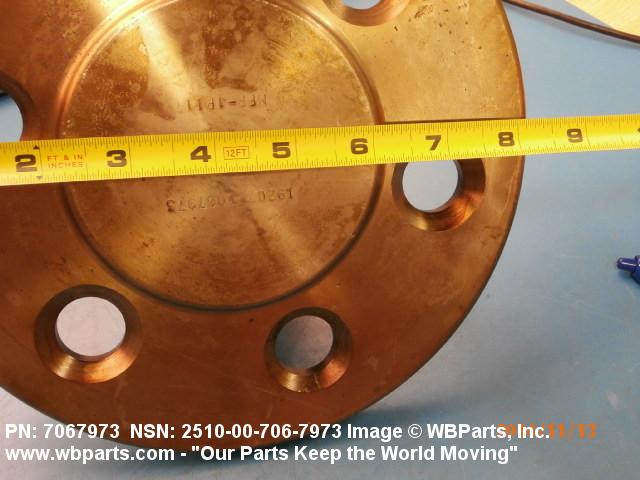

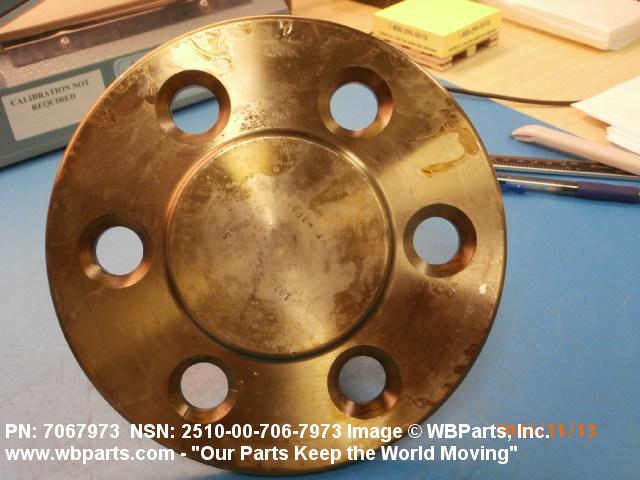

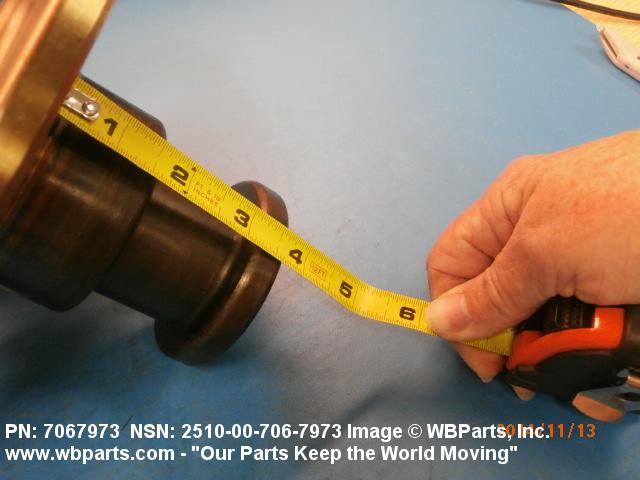

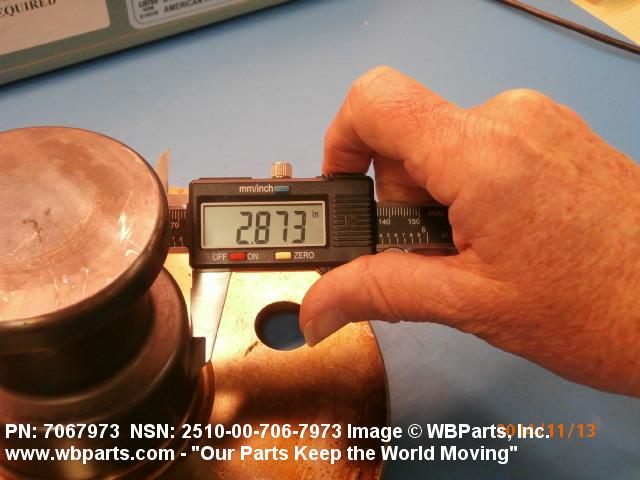

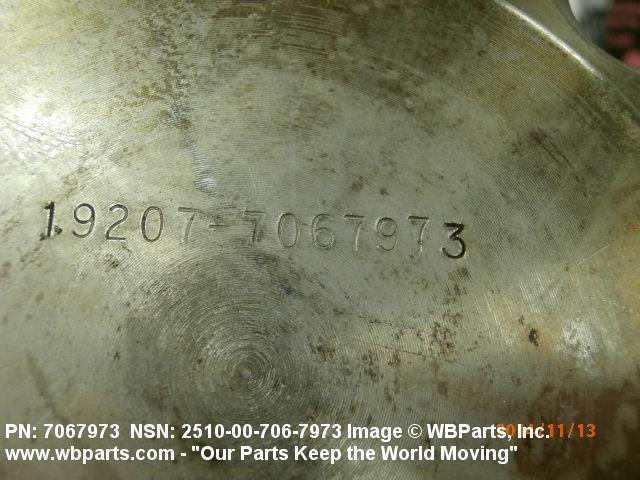

Drawings & Photos | NSN 2510-00-706-7973
Demand History | NSN 2510-00-706-7973
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2510-00-706-7973 | 2024-03-15 | 61 | United States |
| 2510-00-706-7973 | 2024-01-13 | 1 | US |
| MS530361 | 2017-06-22 | 1 | United States |
| MS530361 | 2017-06-22 | 1 | United States |
| 2510-00-706-7973 | 2016-12-08 | 12 | United States |
| 2510-00-706-7973 | 2014-10-28 | 1 | United States |
| 2510-00-706-7973 | 2014-10-21 | 1 | United States |
| MS530361 | 2013-05-24 | 2 | United States |
| 2510-00-706-7973 | 2012-07-02 | 15 | US |
| MS530361 | 2011-11-30 | 1 | United States |
| MS530361 | 2010-07-14 | 3 | US |
Cross Reference | NSN 2510-00-706-7973
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12C163 | 1DF03 | ABM EQUIPMENT & SUPPLY, LLC DBA HIGHWAY MANUFACTURING |
| 12C179 | 1DF03 | ABM EQUIPMENT & SUPPLY, LLC DBA HIGHWAY MANUFACTURING |
| 2-52-14 | 60528 | TRAILMOBILE INC SUB OF THE PULLMAN CO |
| 2-52-14 | 78830 | TROPIC-AIRE CARRIER DIVISION OF MC GRAW-EDISON CO |
| 355697 | H0001 | DAF TRUCKS N.V. |
| 7067973 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| MS-53036-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SVTG3678 | H0711 | KONINKLYKE LANDMACHT DMKL-MVA 3 DIRECTIE MATERIEEL KONINKLYKE LANDMA |
| T417H | 74410 | HOLLAND USA INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2510-00-706-7973
Related Products | NSN 2510-00-706-7973
Technical Data | NSN 2510-00-706-7973
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | 20.0 MINIMUM ROCKWELL C AND 27.0 MAXIMUM ROCKWELL C |

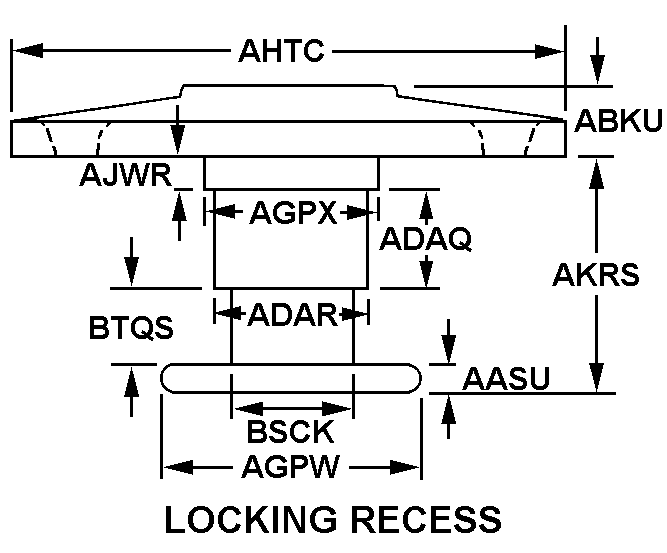

| STYLE DESIGNATOR | 4 LOCKING RECESS |
| HEAD HEIGHT | 0.546 INCHES MINIMUM AND 0.578 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.625 INCHES MINIMUM AND 0.641 INCHES MAXIMUM |
| BODY LENGTH | 1.250 INCHES MINIMUM AND 1.375 INCHES MAXIMUM |

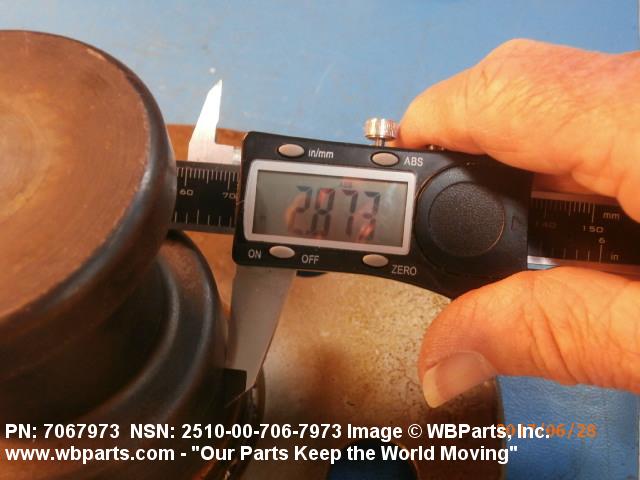

| BODY OUTSIDE DIAMETER | 2.870 INCHES MINIMUM AND 2.880 INCHES MAXIMUM |
| HEAD OUTSIDE DIAMETER | 2.297 INCHES MINIMUM AND 2.827 INCHES MAXIMUM |

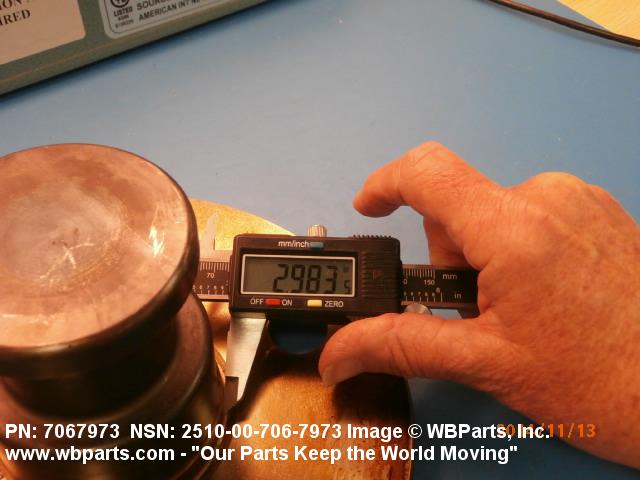

| SHOULDER OUTSIDE DIAMETER | 2.968 INCHES MINIMUM AND 3.000 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 8.000 INCHES MINIMUM AND 8.500 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| PIN LENGTH | 3.625 INCHES MINIMUM AND 3.688 INCHES MAXIMUM |
| LOCKING RECESS OUTSIDE DIAMETER | 1.995 INCHES MINIMUM AND 2.005 INCHES MAXIMUM |
| LOCKING RECESS LENGTH | 1.422 INCHES MINIMUM AND 1.454 INCHES MAXIMUM |
| MOUNTING END TYPE | FLANGE |
| FLANGE SHAPE | ROUND |

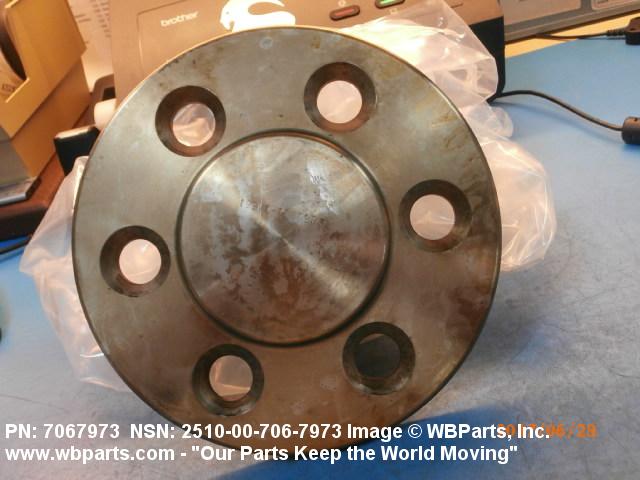

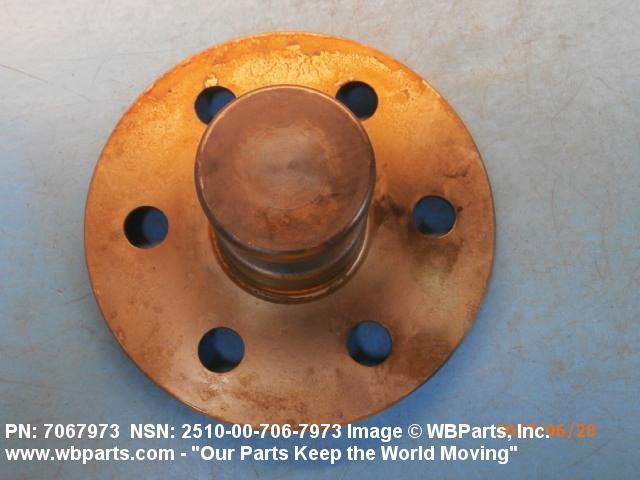

| MOUNTING FLANGE BOLT HOLE QUANTITY | 6 |

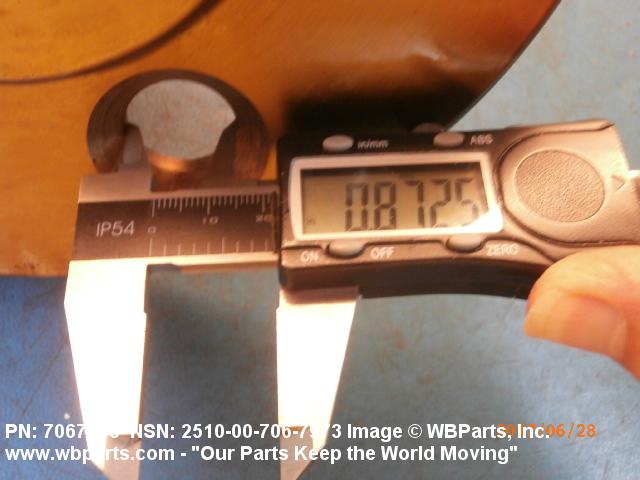

| MOUNTING HOLE DIAMETER | 0.875 INCHES NOMINAL |
| MOUNTING HOLE SPACING | EQUALLY SPACED ON 5-3/4 IN. BOLT CIRCLE |
| SPECIAL FEATURES | 45 DEG CHAMFER ON UPPER EDGE OF BOLT HOLES |
Restrictions/Controls & Freight Information | NSN 2510-00-706-7973
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018920 | AUTO KINGBOLTS/KINGPINS |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 581 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
