NSN 2510-01-422-8751 G63424, TO 04897414AG, TO04897414AG
Product Details | DIRECT ACTION SHOCK ABSORBER
2510-01-422-8751 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Part Alternates: G63424, TO 04897414AG, TO04897414AG, 20709, 2510-01-422-8751, 01-422-8751, 2510014228751, 014228751
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 11 DEC 1995 | 01-422-8751 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |
Drawings & Photos | NSN 2510-01-422-8751
Demand History | NSN 2510-01-422-8751
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 20709 | 2022-09-257 | 1 | DIBBS |
| G63424 | 2022-09-257 | 1 | DIBBS |
| TO 04897414AG | 2022-09-257 | 1 | DIBBS |
| 20709 | 2020-08-233 | 1 | DIBBS |
| G63424 | 2020-08-233 | 1 | DIBBS |
| TO 04897414AG | 2020-08-233 | 1 | DIBBS |
| 2510-01-422-8751 | 2007-07-188 | 85 | DIBBS |
| 2510-01-422-8751 | 2006-06-167 | 31 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2510-01-422-8751
Related Products | NSN 2510-01-422-8751
Technical Data | NSN 2510-01-422-8751
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | GAS |
| PISTON END CONNECTION STYLE | 3 SHOULDERED STEM |

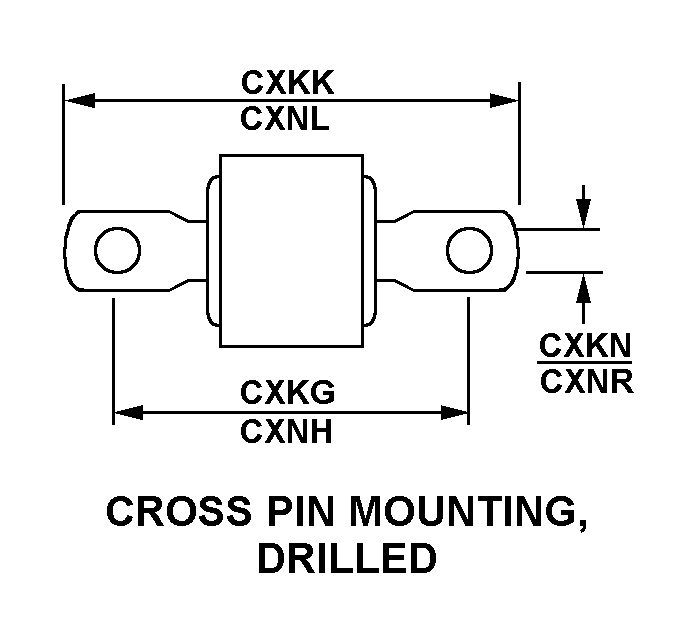

| CYLINDER END CONNECTION STYLE | 9 CROSS PIN MOUNTING, DRILLED |
| CYLINDER END NOMINAL HOLE CENTER TO CENTER DISTANCE | 2.438 INCHES |
| CYLINDER END NOMINAL BOLT HOLE DIAMETER | 0.312 INCHES |
| NOMINAL EXTENDED LENGTH | 20.125 INCHES |
| NOMINAL COMPRESSED LENGTH | 12.625 INCHES |
| PROTECTIVE SHIELD TYPE | DUST |
| DUTY TYPE | HEAVY |
| SPECIAL FEATURES | P-171 PARTS PACK PROVIDED |
| III END ITEM IDENTIFICATION | 1984-90 JEEP CHEROKEE |
Restrictions/Controls & Freight Information | NSN 2510-01-422-8751
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019500 | AUTO SHOCK ABSORBERS R PARTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2510-01-422-8751
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
