NSN 2510-01-396-1516 01-396-1516, 013961516
Product Details | DIRECT ACTION SHOCK ABSORBER
2510-01-396-1516 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Part Alternates: 2510-01-396-1516, 01-396-1516, 2510013961516, 013961516
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01-396-1516 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |
Drawings & Photos | NSN 2510-01-396-1516
Cross Reference | NSN 2510-01-396-1516
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3496347 | 12204 | DAIMLER CHRYSLER |
| 3496347 | 86403 | CHRYSLER CORP SERVICE AND PARTS OPNS |
| 4039723 | 86403 | CHRYSLER CORP SERVICE AND PARTS OPNS |
| 4086417 | 12204 | DAIMLER CHRYSLER |
| 4131320 | 86403 | CHRYSLER CORP SERVICE AND PARTS OPNS |
| 4740240 | 12204 | DAIMLER CHRYSLER |
| 6831 | 76445 | TENNECO INC |
| G0073318 | 86403 | CHRYSLER CORP SERVICE AND PARTS OPNS |
| SG23127 | 86403 | CHRYSLER CORP SERVICE AND PARTS OPNS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2510-01-396-1516
Technical Data | NSN 2510-01-396-1516
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |

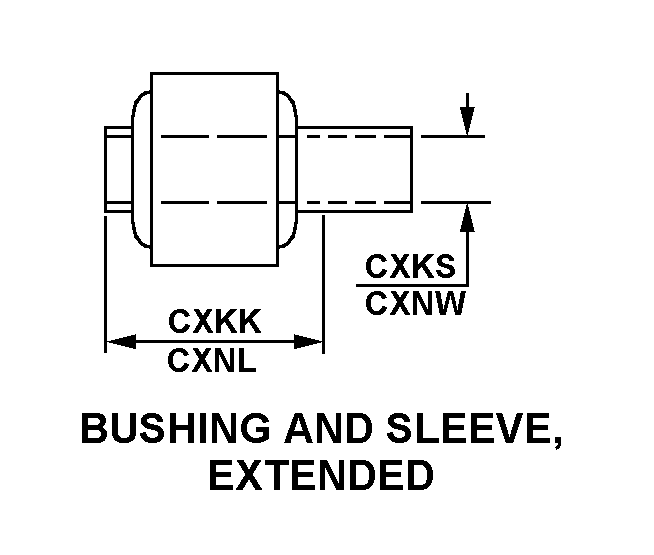

| PISTON END CONNECTION STYLE | 6 BUSHING AND SLEEVE, EXTENDED |
| CYLINDER END CONNECTION STYLE | 8 CROSS PIN MOUNTING, SLOTTED |
| PROTECTIVE SHIELD TYPE | STONE |
| DUTY TYPE | EXTRA HEAVY |
| SPECIAL FEATURES | SHOCK ABSORBER FRONT SFA,W/5000,5300,6010 LB,GVW |
| III END ITEM IDENTIFICATION | TRUCK,PANEL DODGE CHRYSLER CORPORATION |
Restrictions/Controls & Freight Information | NSN 2510-01-396-1516
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
