Product Details | DIRECT ACTION SHOCK ABSORBER

2510-01-314-9275 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.

Part Alternates: E7TZ 18125-L, E7TZ18125L, 6930, 012596T, 2510-01-314-9275, 01-314-9275, 2510013149275, 013149275

Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components

Supply Group (FSG) NSN Assign. NIIN
25 08 FEB 1990 01-314-9275

Drawings & Photos | NSN 2510-01-314-9275


Demand History | NSN 2510-01-314-9275

Part Number Request Date QTY Origin
6930 2013-09-253 1 US

Cross Reference | NSN 2510-01-314-9275

Part Number Cage Code Manufacturer
012596T 59556 KOVATCH CORP.
6930 76445 TENNECO INC
E7TZ 18125-L 23040 FORD MOTOR CO FORD PARTS AND SERVICE DIV
E7TZ 18125-L 57526 FORD MOTOR CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2510-01-314-9275

Technical Data | NSN 2510-01-314-9275

Characteristic Specifications
OPERATION METHOD GAS

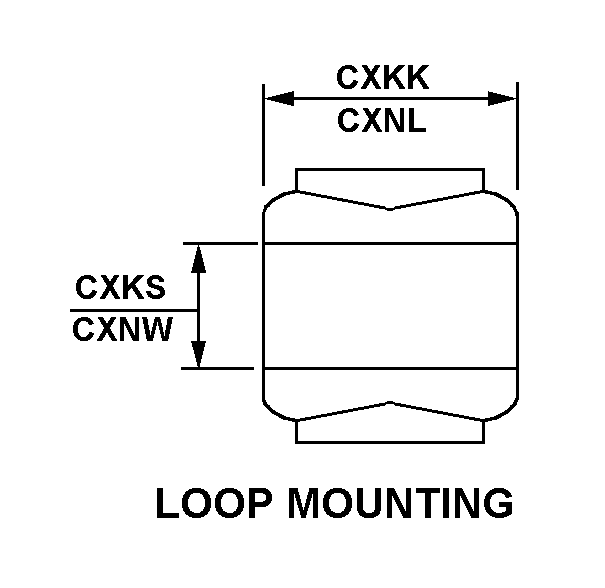

PISTON END CONNECTION STYLE 4 LOOP MOUNTING
PISTON END NOMINAL OVERALL LENGTH 1.938 INCHES
PISTON END NOMINAL INSIDE DIAMETER 0.625 INCHES

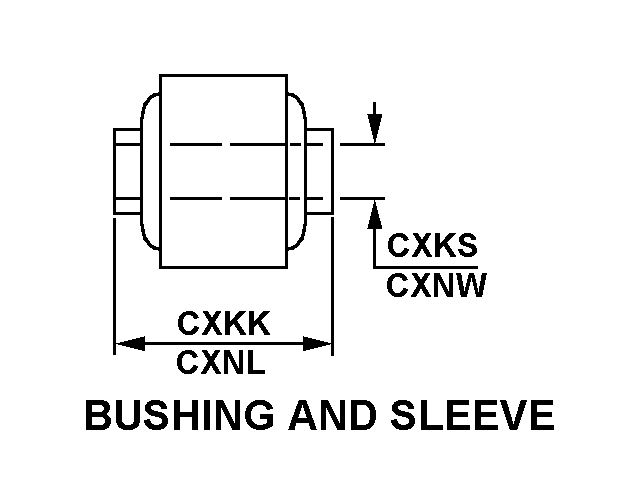

CYLINDER END CONNECTION STYLE 5 BUSHING AND SLEEVE
CYLINDER END NOMINAL OVERALL LENGTH 1.500 INCHES
CYLINDER END NOMINAL INSIDE DIAMETER 12.0 MILLIMETERS
NOMINAL EXTENDED LENGTH 24.750 INCHES
NOMINAL COMPRESSED LENGTH 14.875 INCHES
PROTECTIVE SHIELD TYPE DUST
III END ITEM IDENTIFICATION LIGHT TRUCK;FORD,1987,MODELF350,4/W/D

Restrictions/Controls & Freight Information | NSN 2510-01-314-9275

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 019500 AUTO SHOCK ABSORBERS R PARTS
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 585 unknown
Originating Activity Code AH Defense Supply Center Columbus
Columbus, OH 43215
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
