NSN 2510-01-183-4834 AX252A, C5AZ18124J, C5AZ-18124-J
Product Details | DIRECT ACTION SHOCK ABSORBER
2510-01-183-4834 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Part Alternates: AX252A, C5AZ18124J, C5AZ-18124-J, D2AZ1824A, D2AZ1824-A, 3188933, 42446, 45769, 50010, 500-10, 50013, 500-13, 5701, 2510-01-183-4834, 01-183-4834, 2510011834834, 011834834
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01-183-4834 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |
Drawings & Photos | NSN 2510-01-183-4834
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2510-01-183-4834
Technical Data | NSN 2510-01-183-4834
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |

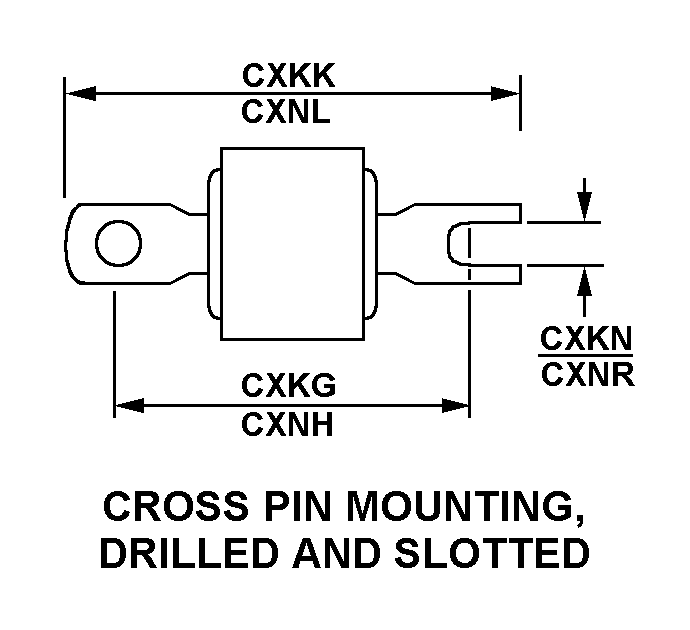

| PISTON END CONNECTION STYLE | 10 CROSS PIN MOUNTING, DRILLED AND SL0TTED |
| PISTON END NOMINAL HOLE CENTER TO CENTER DISTANCE | 2.500 INCHES |
| CYLINDER END CONNECTION STYLE | 1 STRAIGHT STEM/STUD MOUNT |
| NOMINAL EXTENDED LENGTH | 14.375 INCHES |
| NOMINAL COMPRESSED LENGTH | 9.000 INCHES |
Restrictions/Controls & Freight Information | NSN 2510-01-183-4834
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
