NSN 2510-00-690-2756 8382077, 00-690-2756, 006902756
Product Details | DIRECT ACTION SHOCK ABSORBER
2510-00-690-2756 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Part Alternates: 8382077, 2510-00-690-2756, 00-690-2756, 2510006902756, 006902756
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-690-2756 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |
Drawings & Photos | NSN 2510-00-690-2756
Cross Reference | NSN 2510-00-690-2756
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8382077 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2510-00-690-2756
Technical Data | NSN 2510-00-690-2756
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |

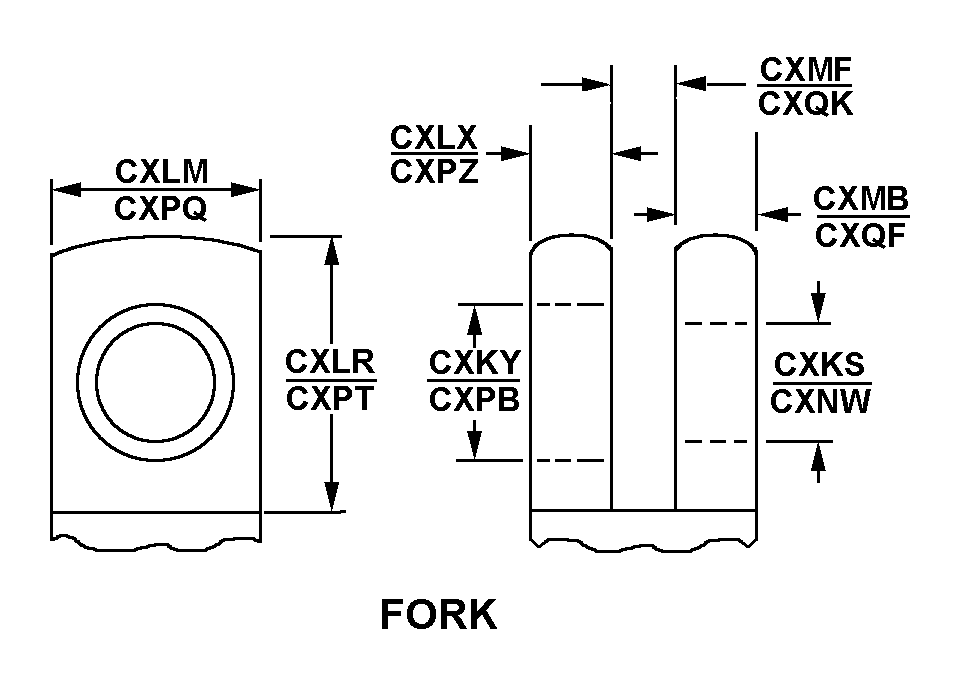

| PISTON END CONNECTION STYLE | 16 FORK |
| PISTON END NOMINAL FORK ARM THICKNESS | 0.685 INCHES |
| PISTON END NOMINAL RIGHT FORK ARM THICKNESS | 0.873 INCHES |
| PISTON END NOMINAL FORK SPAN WIDTH | 2.005 INCHES |

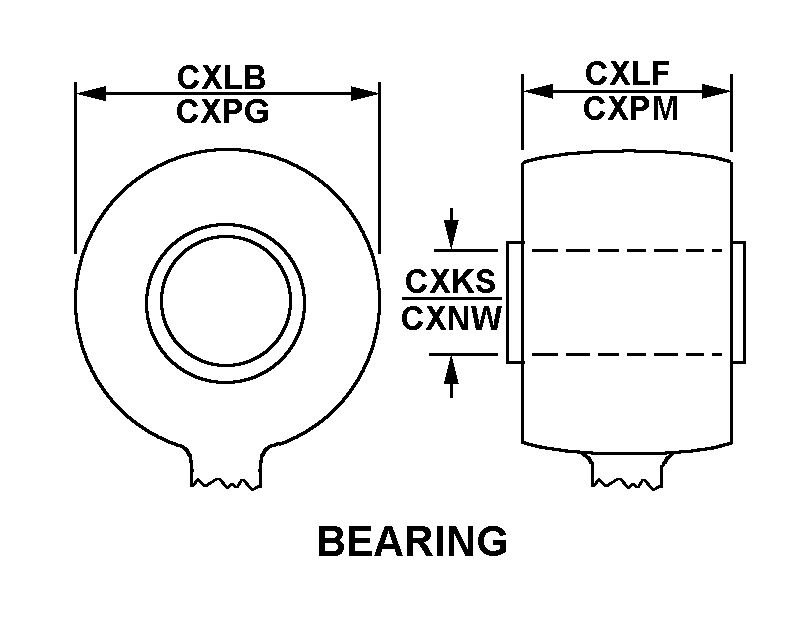

| CYLINDER END CONNECTION STYLE | 13 BEARING |
| CYLINDER END NOMINAL INSIDE DIAMETER | 0.750 INCHES |
| CYLINDER END NOMINAL OUTSIDE DIAMETER | 2.375 INCHES |
| CYLINDER END NOMINAL THICKNESS | 1.469 INCHES |
Restrictions/Controls & Freight Information | NSN 2510-00-690-2756
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019500 | AUTO SHOCK ABSORBERS R PARTS |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 581 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
