NSN 2330-01-558-5333 SV200SWR07, SV200S-WR07, 01-558-5333
Product Details | TANK TRAILER
2330-01-558-5333 A trailer with a tank body designed for transporting water, gasoline, oil, or other liquid. May include facilities for dispensing. Excludes TRANSPORTER, LIQUID, ROLLING WHEEL and items with integral spray attachments. see DISTRIBUTOR (as modified).
Part Alternates: SV200SWR07, SV200S-WR07, 2330-01-558-5333, 01-558-5333, 2330015585333, 015585333
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 13 NOV 2007 | 01-558-5333 | 12987 ( TRAILER, TANK ) |
Drawings & Photos | NSN 2330-01-558-5333
Demand History | NSN 2330-01-558-5333
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2330-01-558-5333 | 2019-11-322 | 2 | United States |
| SV200SWR07 | 2019-08-214 | 1 | US |
Cross Reference | NSN 2330-01-558-5333
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SV200S-WR07 | 66144 | SPOKANE INDUSTRIES, INC. DBA SPOKANE METAL PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-01-558-5333
Related Products | NSN 2330-01-558-5333
Technical Data | NSN 2330-01-558-5333
| Characteristic | Specifications |
|---|---|
| LIQUID CAPACITY | 200.0 GALLONS |
| STOWAGE COMPARTMENT | INCLUDED |
| QUANTITY | 2 |
| STOWAGE COMPARTMENT LOCATION | ONE ON MIDDLE EACH SIDE |
| MEDIA FOR WHICH DESIGNED | GASOLINE AND JET FUEL AND OIL AND WATER |
| MANHOLE QUANTITY | 1 |

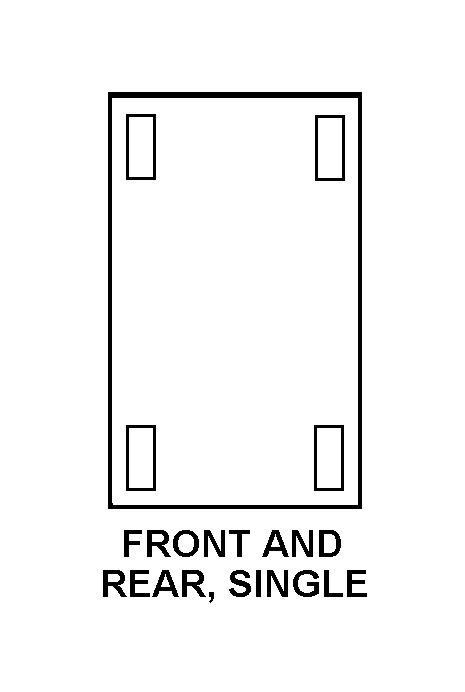

| WHEEL ARRANGEMENT STYLE | 6 FRONT AND REAR, SINGLE |
| DRAWBAR TYPE | HINGED TONGUE |
| DRAWBAR CHARACTERISTIC | FIXED |
| DRAWBAR COUPLER TYPE | LUNETTE |
| SPECIAL FEATURES | SECONDARY CONTAINMENT (DOUBLE WALLED);AUTO-VAC SHUT-OFF ASSY;GROUNDING REEL;DE-FUELING PROBE;VACUUM SYSTEM ASSY |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SEALVAC BOWSER/DEFUELER |
Restrictions/Controls & Freight Information | NSN 2330-01-558-5333
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189540 | VEHICLES:TRAILER CARS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 891 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2330-01-558-5333
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QP | TG:MISCELLANEOUS GROUND SUPPORT AND SHOP EQUIPMENT |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
