NSN 2330-00-093-5598 A3, 00-093-5598, 000935598
Product Details | TANK TRAILER
2330-00-093-5598 A trailer with a tank body designed for transporting water, gasoline, oil, or other liquid. May include facilities for dispensing. Excludes TRANSPORTER, LIQUID, ROLLING WHEEL and items with integral spray attachments. see DISTRIBUTOR (as modified).
Part Alternates: A3, 2330-00-093-5598, 00-093-5598, 2330000935598, 000935598
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 08 MAR 1968 | 00-093-5598 | 12987 ( TRAILER, TANK ) |
Drawings & Photos | NSN 2330-00-093-5598
Demand History | NSN 2330-00-093-5598
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| a3 | 2012-01-30 | 10 | United States |
Cross Reference | NSN 2330-00-093-5598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A3 | 80049 | DEPARTMENT OF THE AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-00-093-5598
Related Products | NSN 2330-00-093-5598
Technical Data | NSN 2330-00-093-5598
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL |
| LIQUID CAPACITY | 600.0 GALLONS |
| COMPARTMENT QUANTITY | 1 |
| STOWAGE COMPARTMENT | INCLUDED |
| QUANTITY | 2 |
| STOWAGE COMPARTMENT LOCATION | REAR |
| PUMP | INCLUDED |
| PUMP TYPE | DISPENSING |
| PUMP QUANTITY | 2 |
| PUMP RATING IN GPM | 30.0 |
| PUMP OPERATION METHOD | MANUAL |
| TANK CONTENT HEATING FACILITY | NOT INCLUDED |
| REFRIGERATING UNIT | NOT INCLUDED |
| MEDIA FOR WHICH DESIGNED | GASOLINE |
| INSULATED FEATURE | NOT INCLUDED |
| LINING | NOT FURNISHED |
| MANHOLE QUANTITY | 1 |
| PIPING SYSTEM SIZE | 2.250 INCHES NOMINAL |
| HOSE REEL | NOT INCLUDED |
| OVERALL LENGTH | 158.500 INCHES NOMINAL |
| OVERALL WIDTH | 89.000 INCHES NOMINAL |
| DISTANCE FROM BODY FRONT TO DRAWBAR COUPLER CENTER | 25.000 INCHES NOMINAL |
| SUSPENSION TYPE | THROUGH SHAFT AXLE |

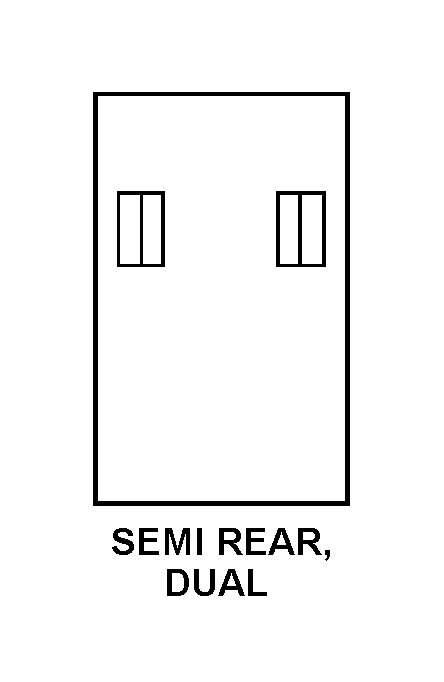

| WHEEL ARRANGEMENT STYLE | 13 SEMI REAR, DUAL |
| SERVICE BRAKE TYPE | ELECTRIC |
| PARKING BRAKES | NOT INCLUDED |
| DRAWBAR TYPE | RIGID A-FRAME |
| DRAWBAR CHARACTERISTIC | FIXED |
| DRAWBAR COUPLER TYPE | LUNETTE |
| RETRACTABLE SUPPORT FEATURE | INCLUDED |
| SUPPORT TYPE | WHEEL |
| TOWING PINTLE HOOK | INCLUDED |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MFR BY STANDARD STEEL |
| MANUFACTURERS CODE | 80049 |
| DESIGN CONTROL REFERENCE | A3 |
Restrictions/Controls & Freight Information | NSN 2330-00-093-5598
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189140 | VEHICLES:FRT CARTS/TRUCKS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 894 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2330-00-093-5598
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | M | Commercial Vehicles |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | PZ | Nontactical Wheeled Vehicles |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
