NSN 2330-00-935-4450 MHT12, 00-935-4450, 009354450
Product Details | FLAT BED TRAILER
2330-00-935-4450 A trailer with a flat load carrying platform without sides or end gate; the platform must be of solid, one level construction suspended above the wheels and must not include a gooseneck or wheel recesses that extend through the bed. It may have beveled edge(s) to facilitate loading. See also TRAILER, LOW BED and TRAILER, STAKE.
Part Alternates: MHT12, 2330-00-935-4450, 00-935-4450, 2330009354450, 009354450
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 11 JUL 1967 | 00-935-4450 | 16259 ( TRAILER, FLAT BED ) |
Drawings & Photos | NSN 2330-00-935-4450
Cross Reference | NSN 2330-00-935-4450
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MHT12 | 0HWJ9 | BERA TILT-TOP TRAILER INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-00-935-4450
Related Products | NSN 2330-00-935-4450
Technical Data | NSN 2330-00-935-4450
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 6.000 TONS |
| BODY MATERIAL | STEEL AND WOOD |
| LOAD PLATFORM LENGTH | 219.000 INCHES NOMINAL |
| BODY OVERALL WIDTH | 96.000 INCHES NOMINAL |
| LOADING RAMP | NOT INCLUDED |
| BED TYPE | TILTING |
| TRANSPORTING CRANE SHOVEL ATTACHMENT DESIGN FEATURE | NOT INCLUDED |
| OVERALL LENGTH | 279.000 INCHES NOMINAL |
| OVERALL WIDTH | 96.000 INCHES NOMINAL |
| DISTANCE FROM BODY FRONT TO DRAWBAR COUPLER CENTER | 57.000 INCHES NOMINAL |
| SUSPENSION TYPE | THROUGH SHAFT AXLE |

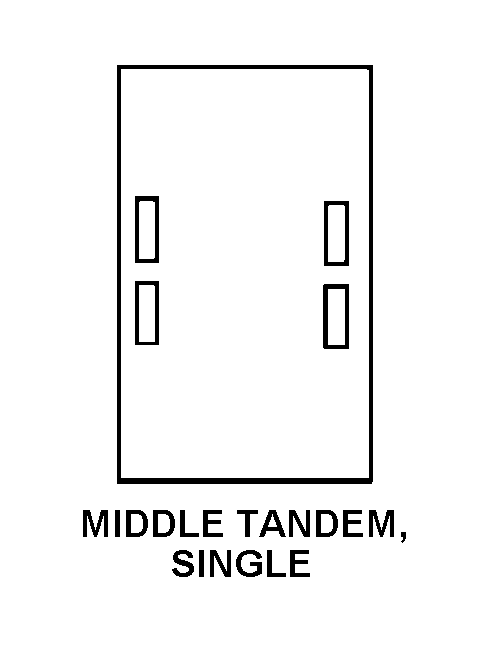

| WHEEL ARRANGEMENT STYLE | 4 MIDDLE TANDEM, SINGLE |
| SERVICE BRAKE TYPE | ELECTRIC |
| PARKING BRAKES | NOT INCLUDED |
| DRAWBAR TYPE | RIGID A-FRAME |
| DRAWBAR CHARACTERISTIC | FIXED |
| DRAWBAR COUPLER TYPE | LUNETTE |
| RETRACTABLE SUPPORT FEATURE | INCLUDED |
| SUPPORT TYPE | ADJUSTABLE LEG |
| TOWING PINTLE HOOK | NOT INCLUDED |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | NAME AND MODEL YEAR 1967 |
| MANUFACTURERS CODE | 0HWJ9 |
| DESIGN CONTROL REFERENCE | MHT12 |
Restrictions/Controls & Freight Information | NSN 2330-00-935-4450
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189140 | VEHICLES:FRT CARTS/TRUCKS ETC |
| Less than car load rating | G | 125 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 891 | unknown |
| Originating Activity Code | BE | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2330-00-935-4450
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | L | Tactical Vehicles |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | P | Other Automotive Categories |
| Weapons Systems/End Item or Homogeneous Group | P3 | Trailer, Bed Configurations |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Fund Code | AF | HQ USAF regulated. |
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
