NSN 2330-00-935-7269 GTX35FS, 00-935-7269, 009357269
Product Details | LOW BED SEMITRAILER
2330-00-935-7269 A semitrailer with a front gooseneck (with or without a deck) designed to provide low loading height for transporting heavy and/or bulky objects. Excludes SEMITRAILER, TANK TRANSPORTER and SEMITRAILER STAKE. See also SEMITRAILER, FLAT BED.
Part Alternates: GTX35FS, 2330-00-935-7269, 00-935-7269, 2330009357269, 009357269
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 28 FEB 1968 | 00-935-7269 | 12982 ( SEMITRAILER, LOW BED ) |
Drawings & Photos | NSN 2330-00-935-7269
Cross Reference | NSN 2330-00-935-7269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GTX35FS | 26697 | MANITEX LOAD KING, INC. DIV LOAD KING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-00-935-7269
Related Products | NSN 2330-00-935-7269
Technical Data | NSN 2330-00-935-7269
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 35.00 TONS |
| BODY MATERIAL | STEEL AND WOOD |
| FLOOR LEVEL DESIGN | ONE LEVEL |
| LOAD PLATFORM LENGTH | 192.000 INCHES NOMINAL |
| BODY OVERALL WIDTH | 96.000 INCHES NOMINAL |
| LOAD PLATFORM HEIGHT | 37.000 INCHES NOMINAL |
| LOADING RAMP | INCLUDED |
| BED TYPE | FIXED |
| STAKE POCKET | INCLUDED |
| GOOSENECK TYPE | FIXED |
| GOOSENECK LENGTH | 119.000 INCHES NOMINAL |
| GOOSENECK LOADING DECK | NOT INCLUDED |
| OVERALL LENGTH | 459.000 INCHES NOMINAL |
| OVERALL WIDTH | 96.000 INCHES NOMINAL |
| COUPLING TYPE | FIFTH WHEEL UPPER PLATE W/KINGPIN |
| DISTANCE FROM KINGPIN CENTER TO FRONT END | 18.000 INCHES NOMINAL |
| SUSPENSION TYPE | TRUNNION AXLE |
| CONVERTER DOLLY | NOT INCLUDED |

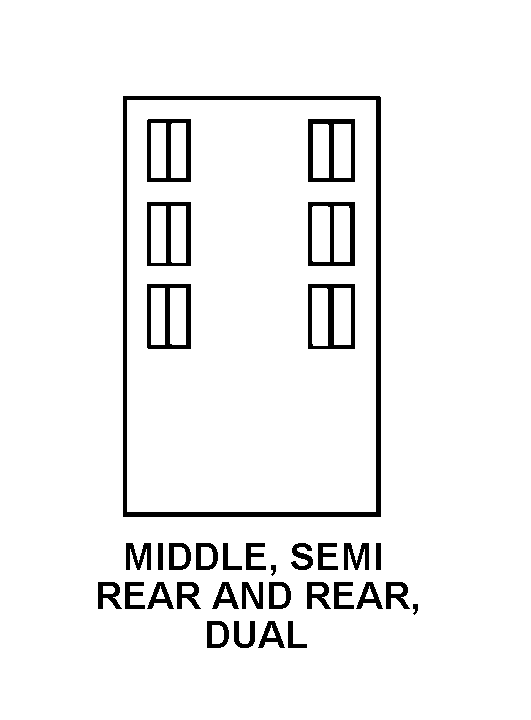

| WHEEL ARRANGEMENT STYLE | 19 MIDDLE, SEMI REAR AND REAR, DUAL |
| SERVICE BRAKE TYPE | AIR |
| PARKING BRAKES | INCLUDED |
| RETRACTABLE SUPPORT FEATURE | INCLUDED |
| OPERATION METHOD | MANUAL |
| AUXILIARY SUPPORT TYPE | ANY ACCEPTABLE |
| TOWING PINTLE HOOK | NOT INCLUDED |
| SPECIAL FEATURES | EQUIPPED W/EMERGENCY AIR BRAKE SYSTEM |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | NAME AND MODEL YEAR 1968 |
| MANUFACTURERS CODE | 26697 |
| DESIGN CONTROL REFERENCE | GTX35FS |
Restrictions/Controls & Freight Information | NSN 2330-00-935-7269
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 189140 | VEHICLES:FRT CARTS/TRUCKS ETC SUB3 |
| Less than car load rating | G | 125 |
| Less than truck load rating | H | 110.0 |
| Water commodity Code | 891 | unknown |
| Originating Activity Code | BE | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | 2 | Type cargo code not applicable (for Air Force internal use). |
Management | NSN 2330-00-935-7269
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | V | 8257X3080:Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
