NSN 1730-01-289-8982 T1F68D10, T1F68D-10, TIF68D10
Product Details | GROUND HANDLING EQUIPMENT ADAPTER
1730-01-289-8982 An adapter designed to support/position aircraft components during installation/removal. It is used in conjunction with lift trailers, hydraulic jacks and the like. Excludes items having a more specific name.
Part Alternates: T1F68D10, T1F68D-10, TIF68D10, TIF68D-10, 1730-01-289-8982, 01-289-8982, 1730012898982, 012898982
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 02 DEC 1988 | 01-289-8982 | 37842 ( ADAPTER, GROUND HANDLING EQUIPMENT ) |

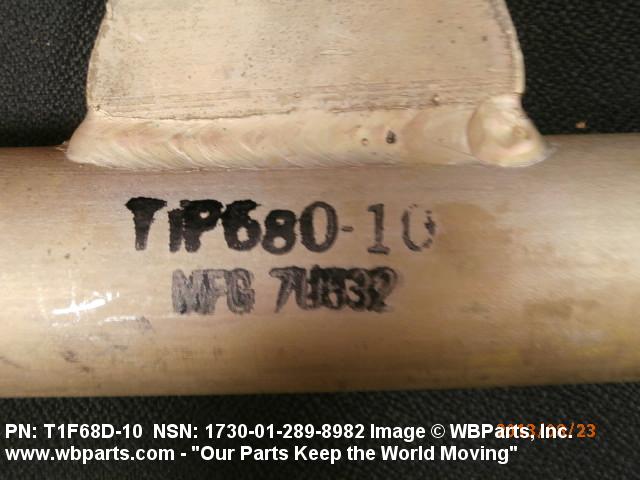

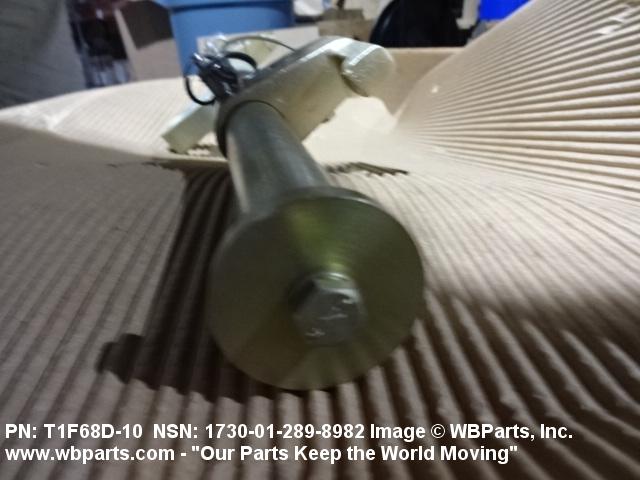

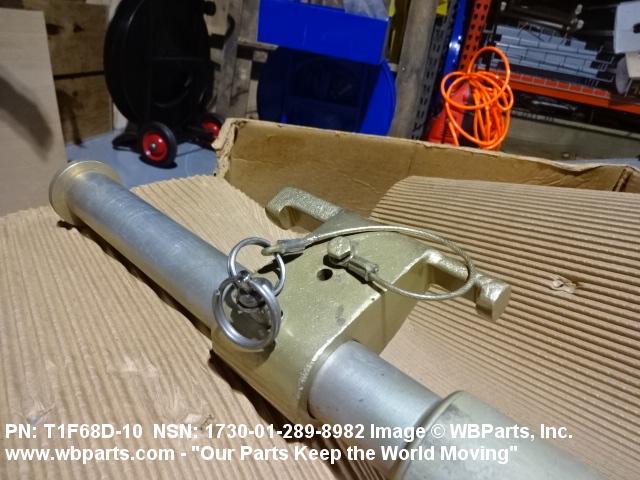

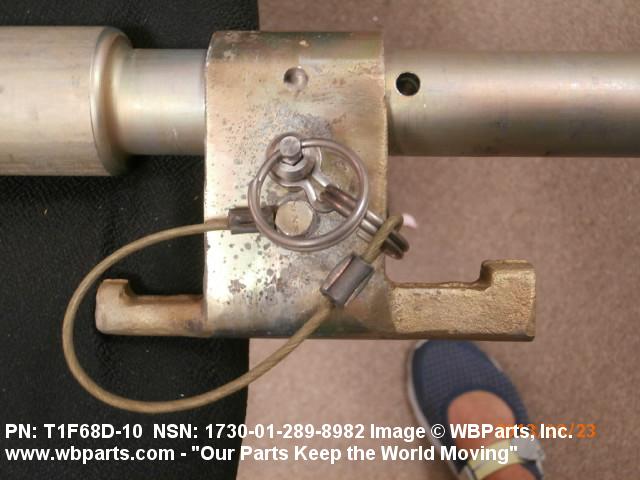

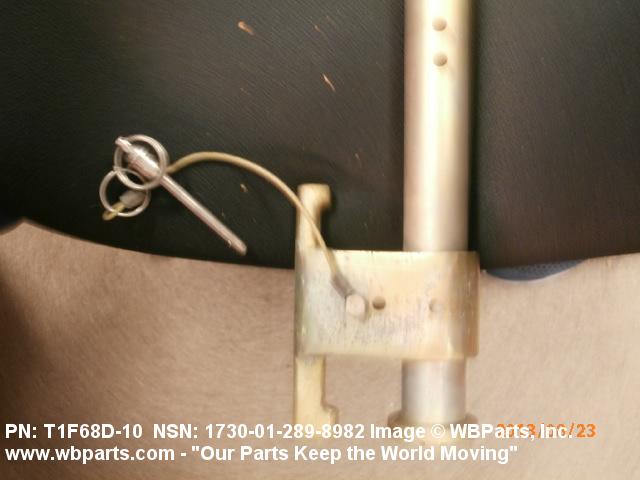

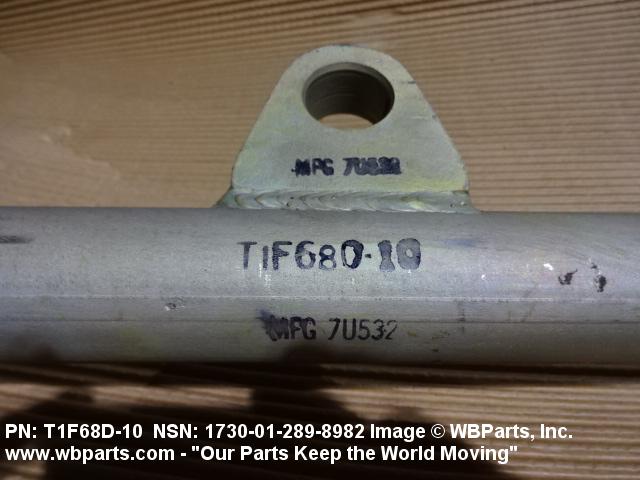

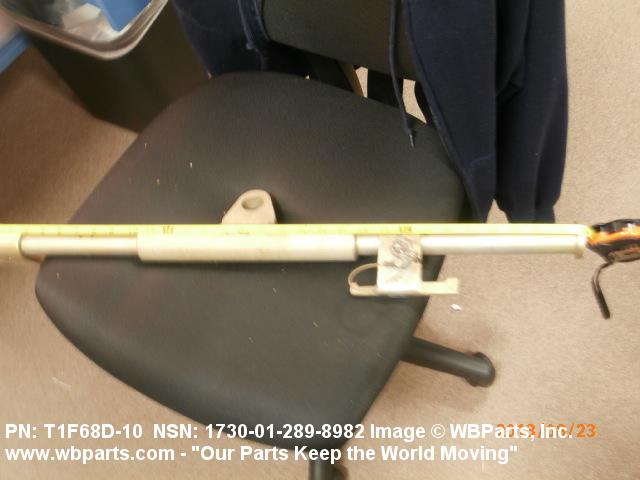

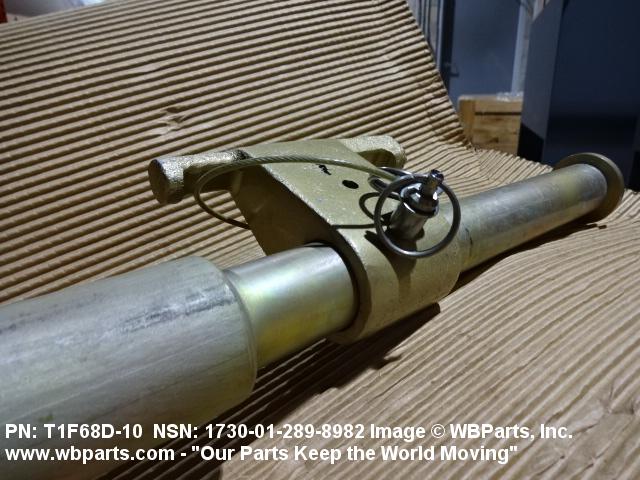

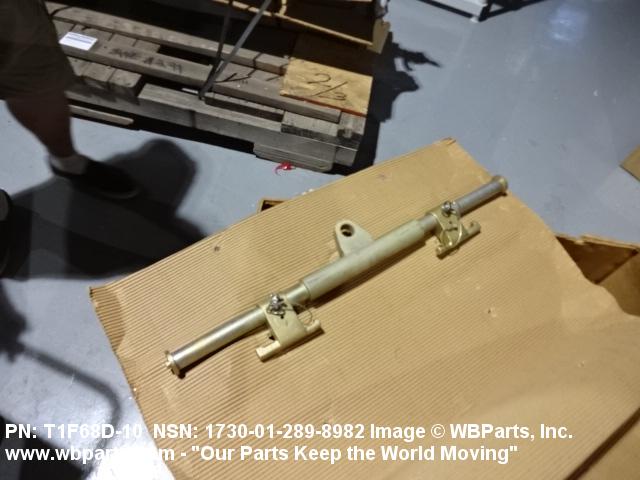

Drawings & Photos | NSN 1730-01-289-8982
Demand History | NSN 1730-01-289-8982
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| T1F68D10 | 2024-06-163 | 5 | US |
| 1730-01-289-8982 | 2024-06-162 | 5 | US |
| T1F68D10 | 2021-03-74 | 1 | United States |
| T1F68D10 | 2021-02-56 | 1 | United States |
| 1730-01-289-8982 | 2020-12-342 | 9 | US |
| 1730-01-289-8982 | 2020-08-240 | 6 | United States |
| 1730-01-289-8982 | 2018-12-338 | 6 | US |
| 1730-01-289-8982 | 2018-02-51 | 8 | United States |
| 1730-01-289-8982 | 2013-08-218 | 1 | United States |
| 1730-01-289-8982 | 2013-08-214 | 2 | United States |
| 1730-01-289-8982 | 2012-01-07 | 5 | Netherlands |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-01-289-8982
Related Products | NSN 1730-01-289-8982
Technical Data | NSN 1730-01-289-8982
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

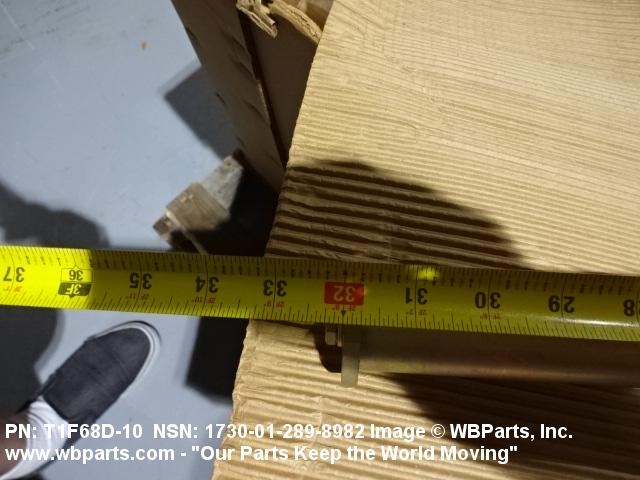

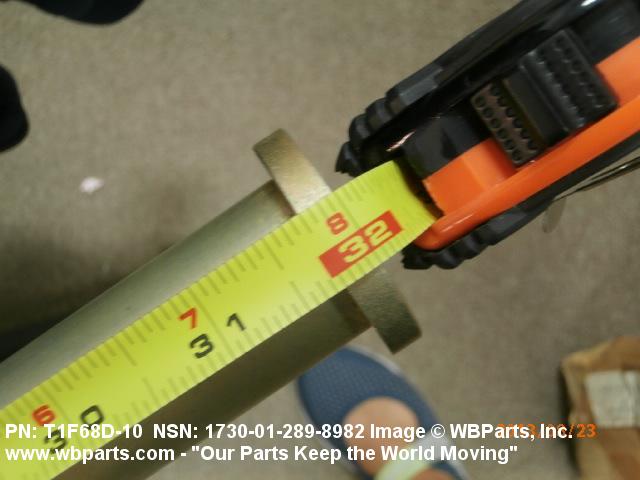

| OVERALL LENGTH | 31.500 INCHES NOMINAL |
| OVERALL DIAMETER | 1.750 INCHES NOMINAL |
| ATTACHMENT METHOD | HOOK |
| SPECIAL FEATURES | LUG BEAM ASSEMBLY;2000 LB CAPACITY;CONSISTS OF HOOK, LANYARD AND LUG |
| III REFERENCE DATA AND LITERATURE | T.O.35AD3-6-37-1 |
Restrictions/Controls & Freight Information | NSN 1730-01-289-8982
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | K | 92.5 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-01-289-8982
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
