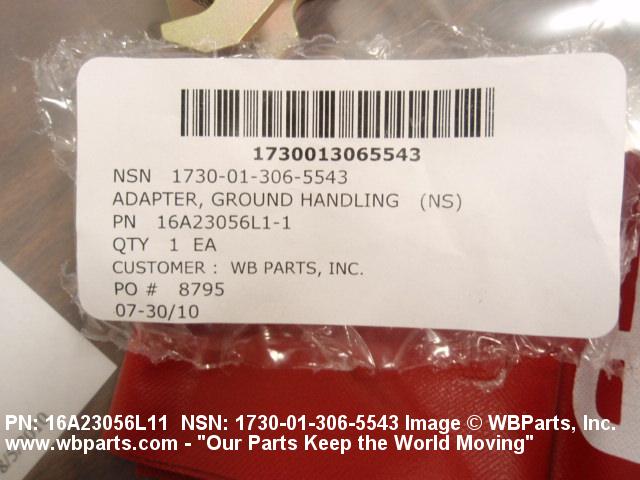

NSN 1730-01-306-5543 16A23056L11, 16A23056L1-1, 01-306-5543
Product Details | GROUND HANDLING EQUIPMENT ADAPTER

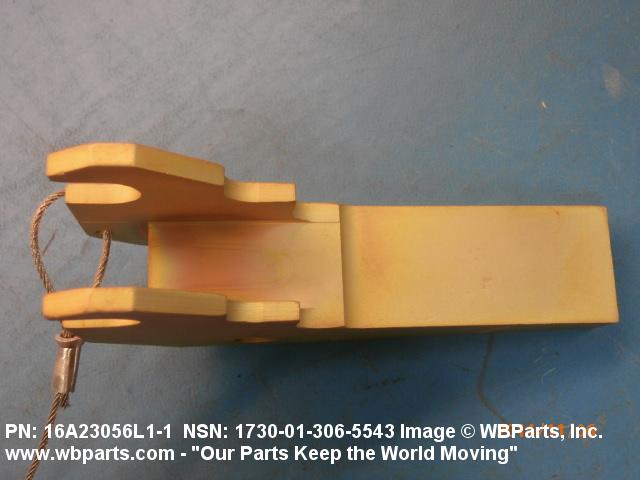

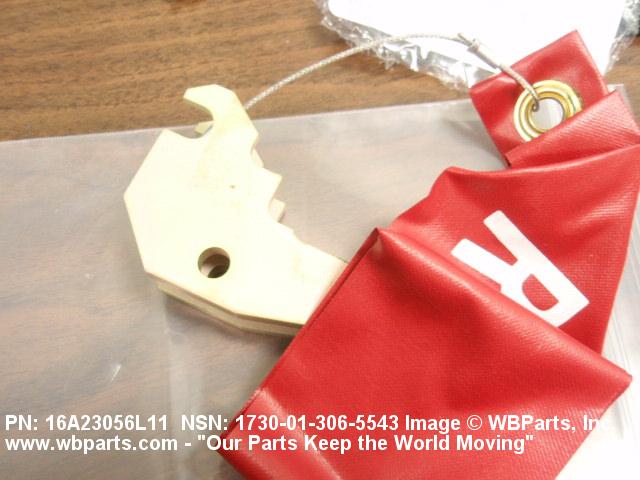

1730-01-306-5543 An adapter designed to support/position aircraft components during installation/removal. It is used in conjunction with lift trailers, hydraulic jacks and the like. Excludes items having a more specific name.
Part Alternates: 16A23056L11, 16A23056L1-1, 1730-01-306-5543, 01-306-5543, 1730013065543, 013065543
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 25 AUG 1989 | 01-306-5543 | 37842 ( ADAPTER, GROUND HANDLING EQUIPMENT ) |

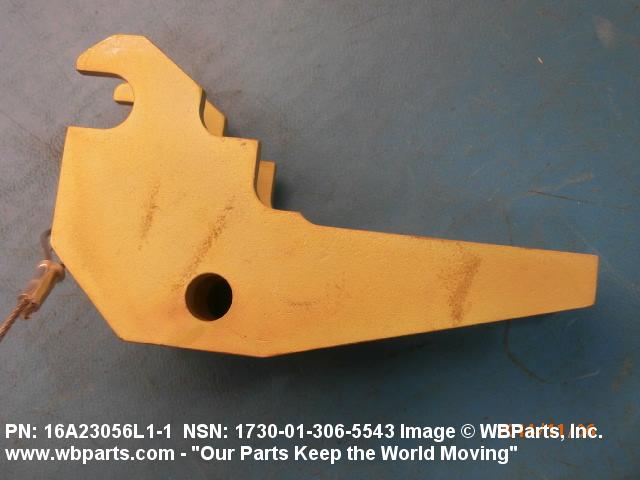

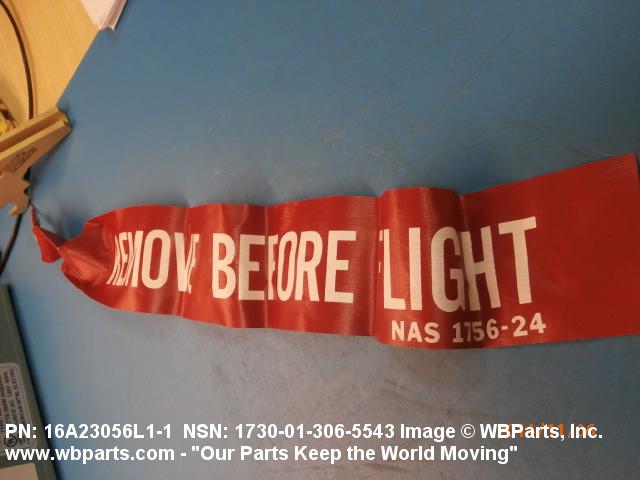

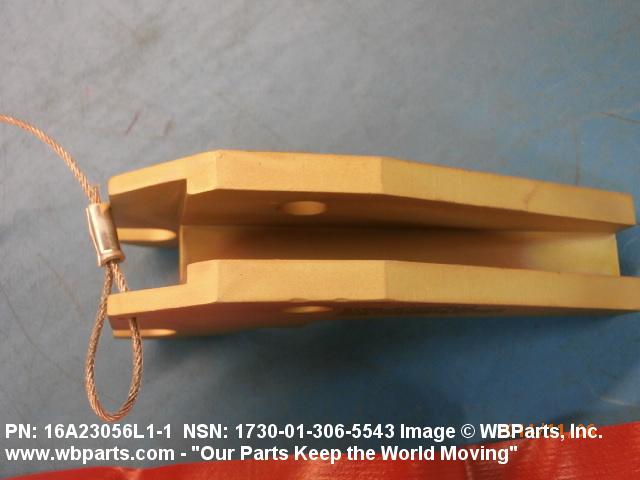

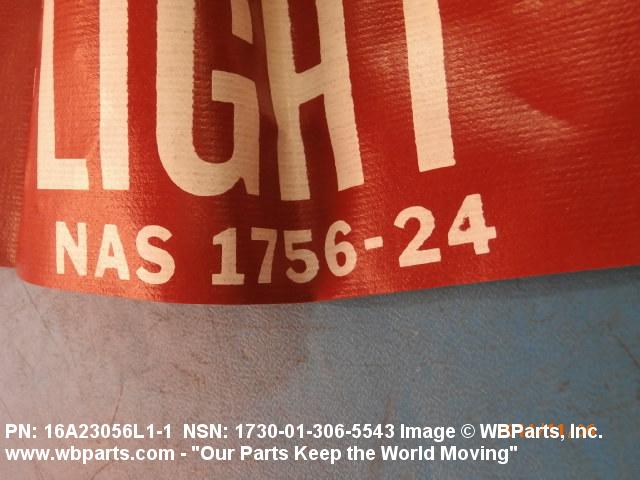

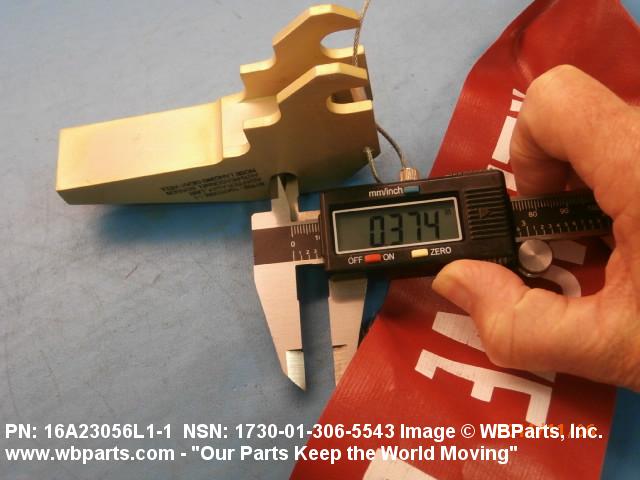

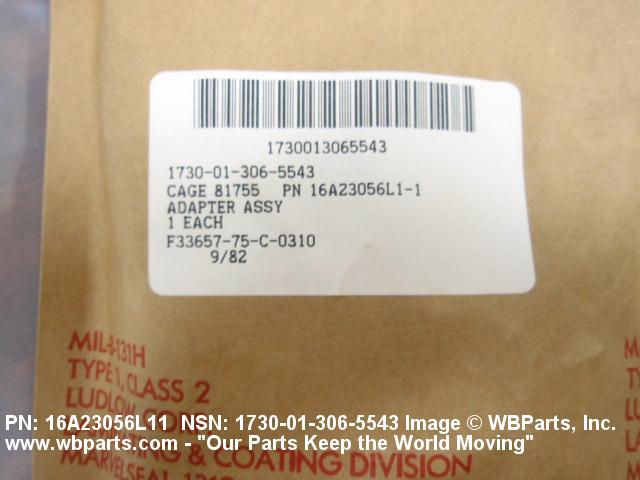

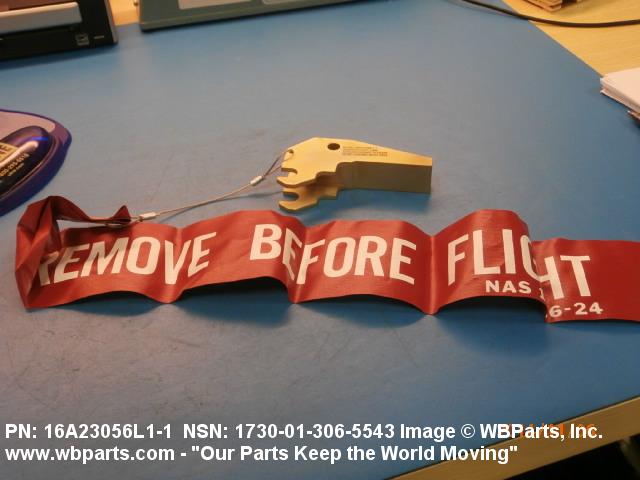

Drawings & Photos | NSN 1730-01-306-5543
Demand History | NSN 1730-01-306-5543
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1730-01-306-5543 | 2023-08-228 | 8 | DIBBS |
| 1730-01-306-5543 | 2023-07-212 | 3 | DIBBS |
| 1730-01-306-5543 | 2023-07-207 | 3 | US |
| 1730-01-306-5543 | 2023-07-200 | 3 | DIBBS |
| 1730-01-306-5543 | 2022-12-341 | 1 | DIBBS |
| 1730-01-306-5543 | 2022-09-257 | 1 | DIBBS |
| 1730-01-306-5543 | 2022-08-241 | 1 | DIBBS |
| 1730-01-306-5543 | 2022-08-241 | 4 | DIBBS |
| 1730-01-306-5543 | 2021-10-299 | 1 | DIBBS |
| 1730-01-306-5543 | 2018-03-82 | 2 | US |
| 1730-01-306-5543 | 2016-03-90 | 1 | PL |
| 1730-01-306-5543 | 2015-04-97 | 1 | US |
| 16A23056L11 | 2014-10-303 | 1 | United States |
| 1730-01-306-5543 | 2013-06-170 | 2 | United States |
| 1730-01-306-5543 | 2013-01-10 | 2 | IT |
| 16A23056L11 | 2010-07-208 | 4 | us |
| 1730-01-306-5543 | 2010-03-63 | 4 | us |
| 16A23056L11 | 2009-11-324 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-01-306-5543
Related Products | NSN 1730-01-306-5543
Technical Data | NSN 1730-01-306-5543
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

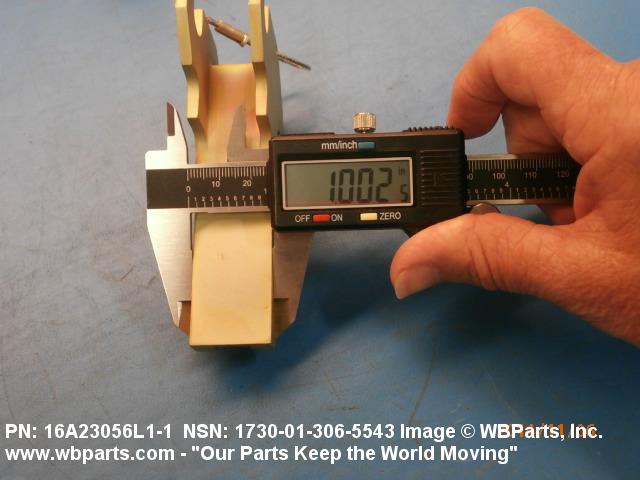

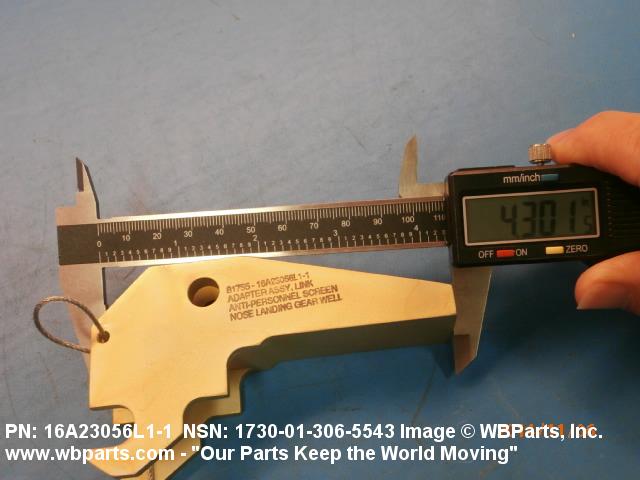

| OVERALL LENGTH | 4.300 INCHES NOMINAL |

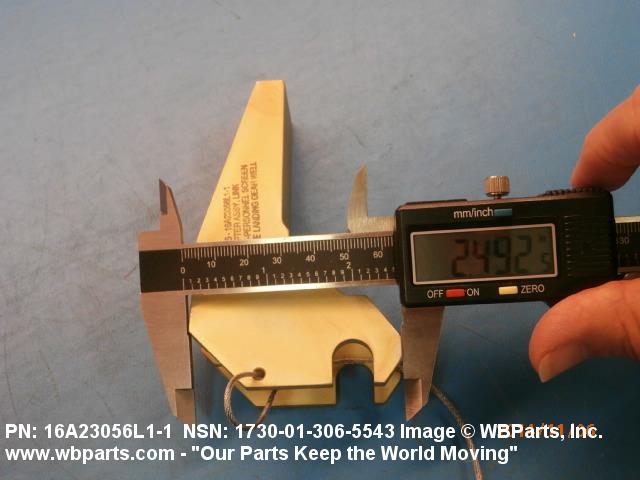

| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| USAGE DESIGN | AIRCRAFT ENGINE |
| ATTACHMENT METHOD | HOLE |

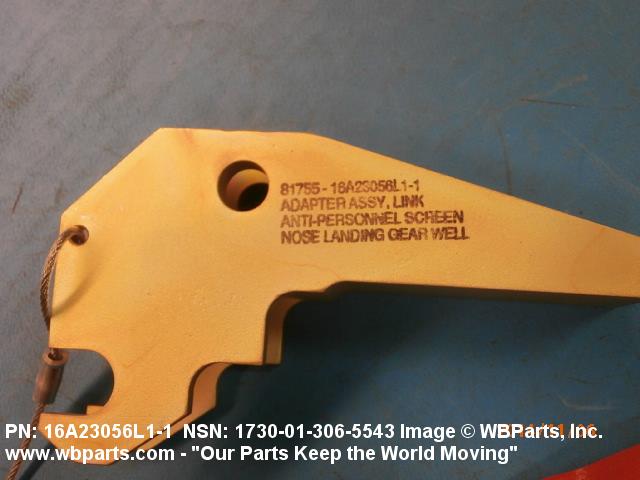

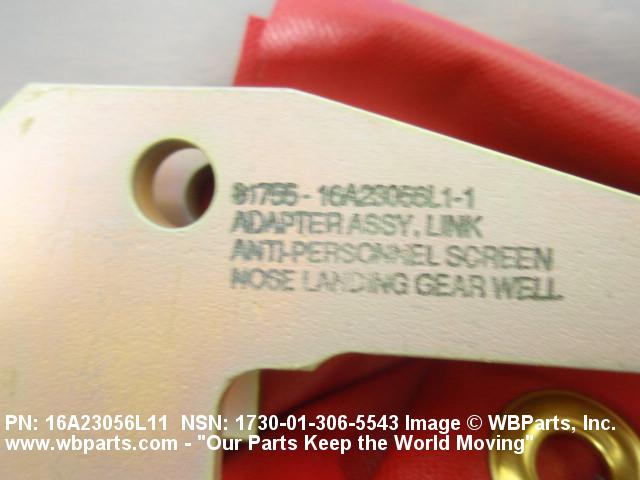

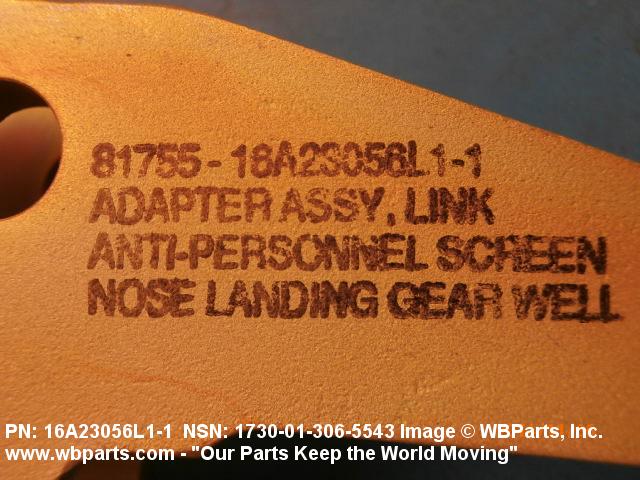

| III FUNCTIONAL DESCRIPTION | USED TO ATTACH ENGINE ANTI-PERSONNEL SCREEN TO ENGINE INLET |
| III FSC APPLICATION DATA | F-16C/D ACFT AGE. |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16A23056L1-1 |
Restrictions/Controls & Freight Information | NSN 1730-01-306-5543
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104600 | BRACES/BRACING/BRACKETS/FORM NOI |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-01-306-5543
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RH | TG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC) |
| Source of Supply | JCL | |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | F | FABRICATE OR ASSEMBLE # (NON-STOCKED ITEMS) National Stock Numbered items fabricated or assembled from raw materials and finished products as the normal method of support. Procurement and stockage of the items are not justified because of low usage or peculiar installation factors. Distinctions between local or centralized fabricate/assemble capability are identified by the Source of Supply Modifier in the Source of Supply Column of the Service Management Data Lists. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
