NSN 1730-01-078-7113 74D1101161001, 74D110116-1001, 01-078-7113
Product Details | AIRCRAFT GROUND SERVICING SHIELD
1730-01-078-7113 An item designed to fit into and/or over various external openings in an aircraft, such as air scoops, exhaust outlets, and vents to prevent the entrance of foreign matter while the aircraft is on the ground. There is usually a warning streamer attached to indicate removal before flight. Excludes PLUG, PROTECTIVE, DUST AND MOISTURE SEAL; and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. For fabric items, or the like, designed to envelope or spread over an opening, see COVER, AIRCRAFT GROUND SERVICING.
Part Alternates: 74D1101161001, 74D110116-1001, 1730-01-078-7113, 01-078-7113, 1730010787113, 010787113
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 18 JUN 1979 | 01-078-7113 | 27338 ( SHIELD, AIRCRAFT GROUND SERVICING ) |

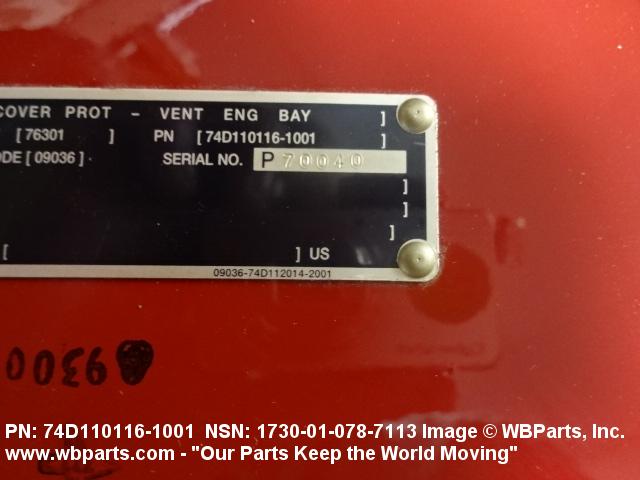

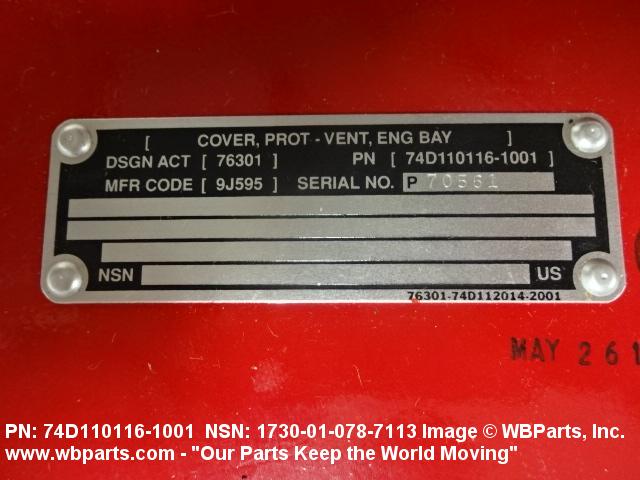

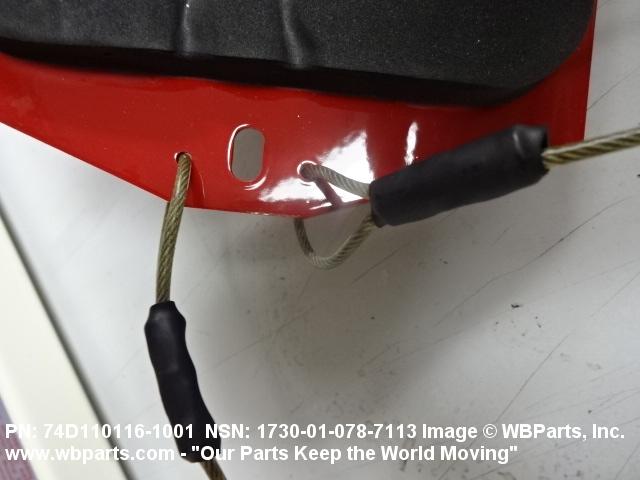

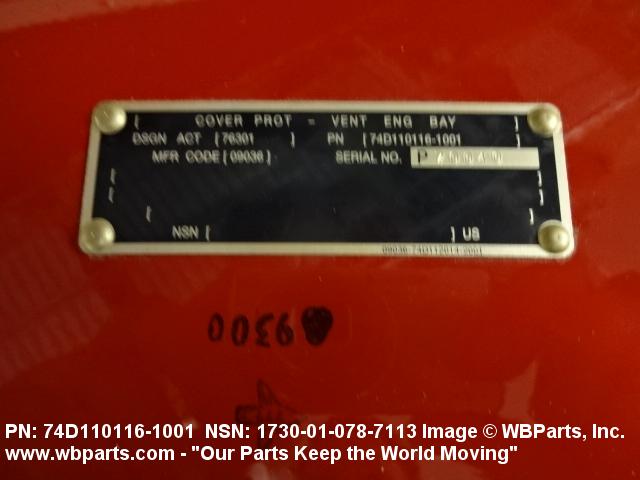

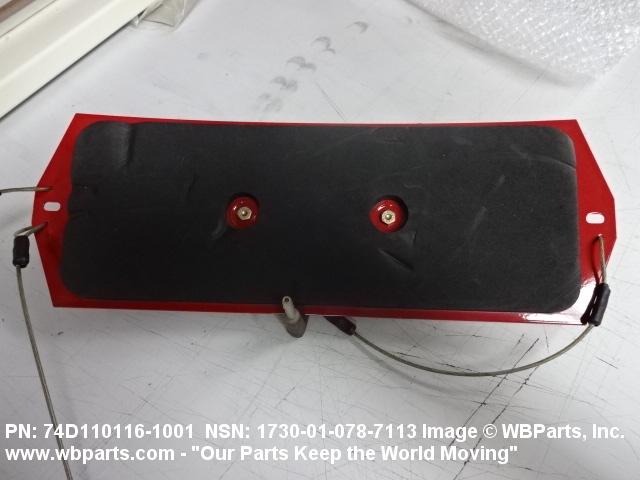

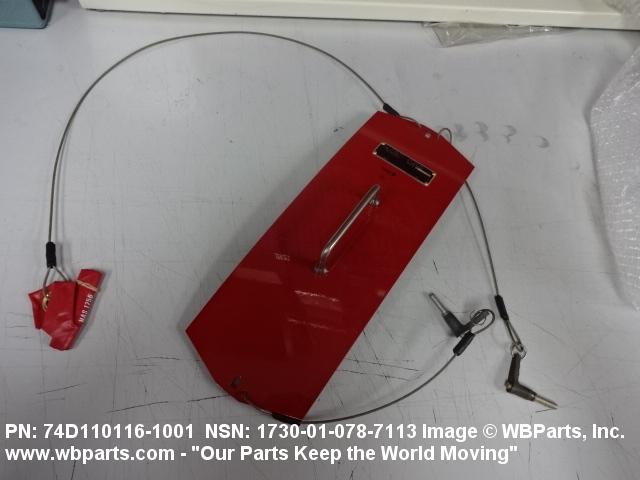

Drawings & Photos | NSN 1730-01-078-7113
Demand History | NSN 1730-01-078-7113
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 74D1101161001 | 2024-04-115 | 10 | UK |
| 1730-01-078-7113 | 2024-04-110 | 8 | Malaysia |
| 74D110116-1001 | 2019-08-234 | 8 | DIBBS |
| 74D110116-1001 | 2019-08-223 | 8 | DIBBS |
| 74D110116-1001 | 2019-06-167 | 60 | DIBBS |
| 74D110116-1001 | 2019-05-128 | 13 | DIBBS |
| 1730-01-078-7113 | 2017-11-319 | 23 | United States |
| 1730-01-078-7113 | 2017-11-311 | 187 | DIBBS |
| 1730-01-078-7113 | 2016-09-256 | 82 | DIBBS |
| 1730-01-078-7113 | 2016-07-203 | 193 | DIBBS |
| 1730-01-078-7113 | 2016-07-192 | 193 | DIBBS |
| 1730-01-078-7113 | 2016-03-82 | 231 | DIBBS |
| 1730-01-078-7113 | 2015-10-281 | 93 | DIBBS |
| 1730-01-078-7113 | 2015-10-279 | 81 | DIBBS |
| 1730-01-078-7113 | 2014-12-338 | 178 | DIBBS |
| 1730-01-078-7113 | 2013-11-307 | 138 | DIBBS |
| 74D110116-1001 | 2012-08-216 | 25 | |
| 1730-01-078-7113 | 2012-08-215 | 25 | NECO |
| 74D110116-1001 | 2011-11-308 | 60 | |
| 1730-01-078-7113 | 2011-11-307 | 60 | NECO |
| 74D110116-1001 | 2010-11-328 | 60 | |
| 1730-01-078-7113 | 2010-11-327 | 60 | NECO |
Cross Reference | NSN 1730-01-078-7113
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74D110116-1001 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-01-078-7113
Related Products | NSN 1730-01-078-7113
Technical Data | NSN 1730-01-078-7113
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | COVER |
| COVER/PLUG PROTRUSION TYPE | W/STOPS |
| BASIC MATERIAL | ALUMINUM |

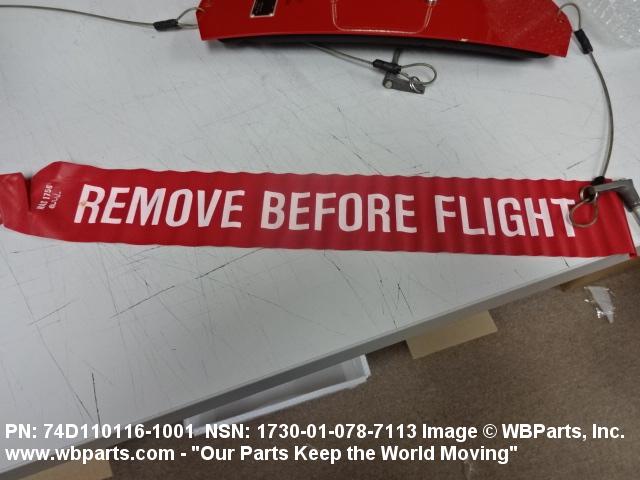

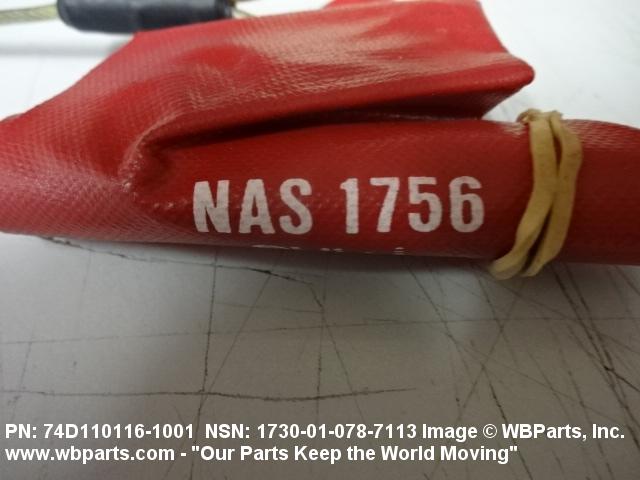

| WARNING STREAMER | INCLUDED |
| SHAPE | RECTANGULAR |
| LENGTH | 14.000 INCHES NOMINAL |
| WIDTH | 6.000 INCHES NOMINAL |
| HANDLE | FURNISHED |
| HANDLE QUANTITY | 1 |
| LATCH | INCLUDED |

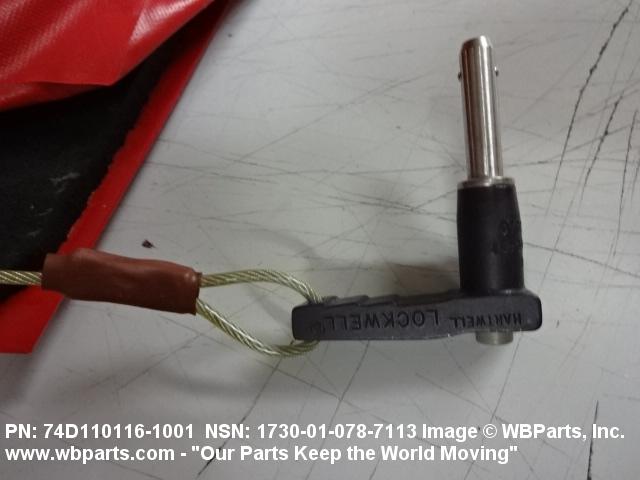

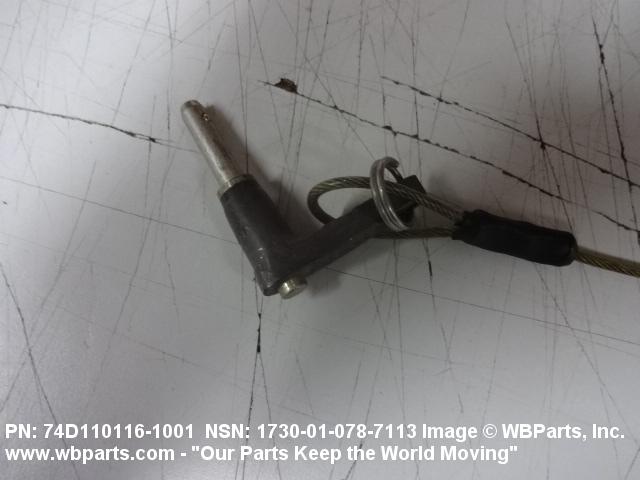

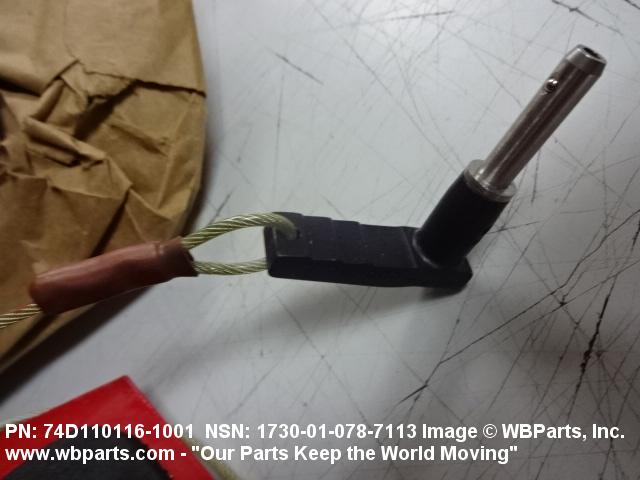

| LATCH TYPE | QUICK RELEASE PIN |
| LATCH QUANTITY | 2 |
| PREHEATER DUCT OPENING | NOT INCLUDED |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 74D110116-1001 |
Restrictions/Controls & Freight Information | NSN 1730-01-078-7113
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-01-078-7113
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | GF | (Non-HSP) FIGHTER SUPPORTAIRCRAFT(F/A-18) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
