NSN 1730-00-075-1037 A02E58267, A02E5826-7, 00-075-1037
Product Details | AIRCRAFT GROUND SERVICING SHIELD
1730-00-075-1037 An item designed to fit into and/or over various external openings in an aircraft, such as air scoops, exhaust outlets, and vents to prevent the entrance of foreign matter while the aircraft is on the ground. There is usually a warning streamer attached to indicate removal before flight. Excludes PLUG, PROTECTIVE, DUST AND MOISTURE SEAL; and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. For fabric items, or the like, designed to envelope or spread over an opening, see COVER, AIRCRAFT GROUND SERVICING.
Part Alternates: A02E58267, A02E5826-7, 1730-00-075-1037, 00-075-1037, 1730000751037, 000751037
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-075-1037 | 27338 ( SHIELD, AIRCRAFT GROUND SERVICING ) |

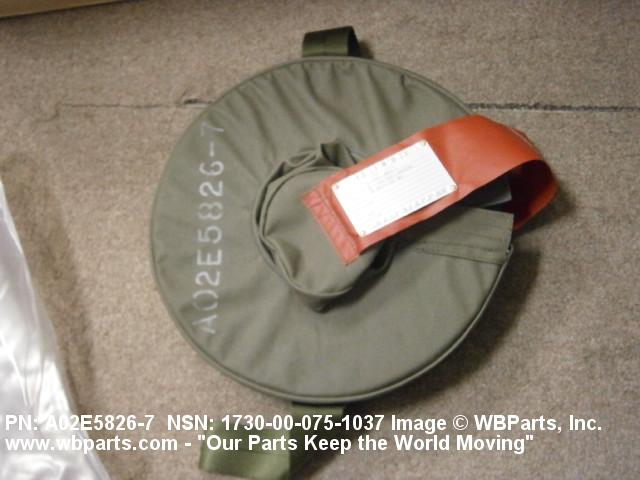

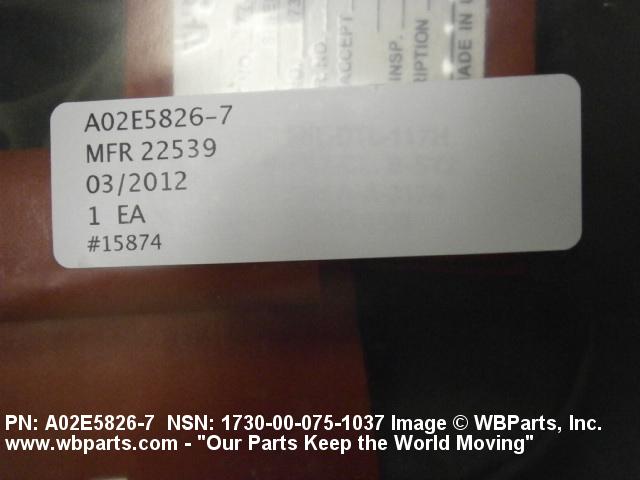

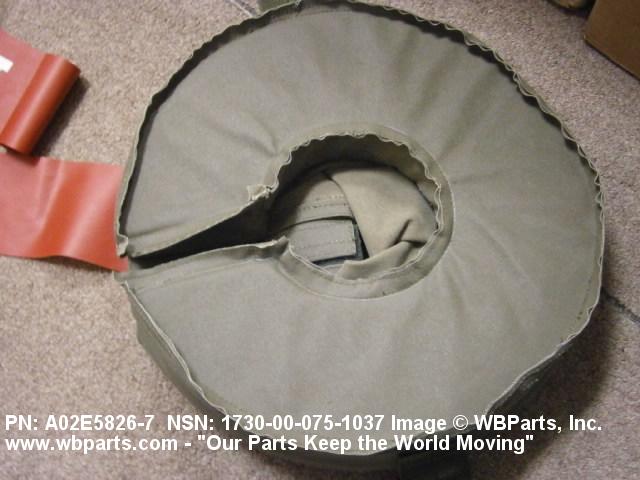

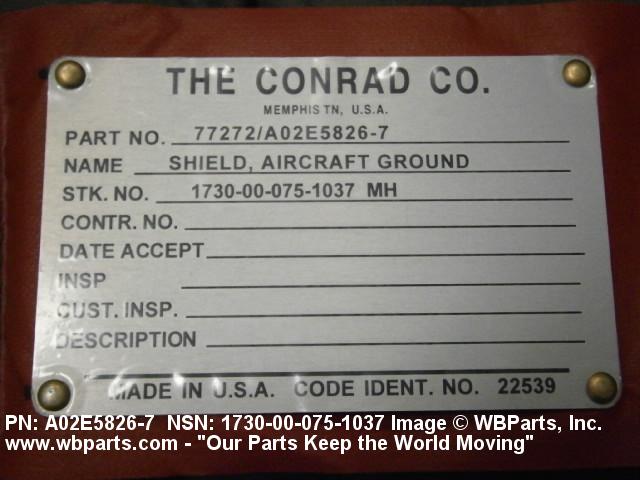

Drawings & Photos | NSN 1730-00-075-1037
Demand History | NSN 1730-00-075-1037
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1730-00-075-1037 | 2011-12-342 | 6 | United States |
| 1730-00-075-1037 | 2011-11-312 | 6 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1730-00-075-1037
Technical Data | NSN 1730-00-075-1037
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | PLUG |
| BASIC MATERIAL | COTTON FABRIC |
| WARNING STREAMER | INCLUDED |
| SHAPE | ROUND |
| DIAMETER | 12.000 INCHES NOMINAL |
| THICKNESS | 8.000 INCHES NOMINAL |
| HANDLE | FURNISHED |
| HANDLE QUANTITY | 2 |
| LATCH | NOT INCLUDED |
| PREHEATER DUCT OPENING | NOT INCLUDED |
| III SPECIFIC USAGE DESIGN | DESIGNED FOR ENGINE INTAKE ON MODEL CH-46A AIRCRAFT |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | A02E5826-7 |
Restrictions/Controls & Freight Information | NSN 1730-00-075-1037
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI SUB2 |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-00-075-1037
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | MH | HELICOPTERS(H46) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | W | Ground Support Equipment-End Items |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
