NSN 1680-00-839-0408 2090607451, 209-060-745-1, 00-839-0408

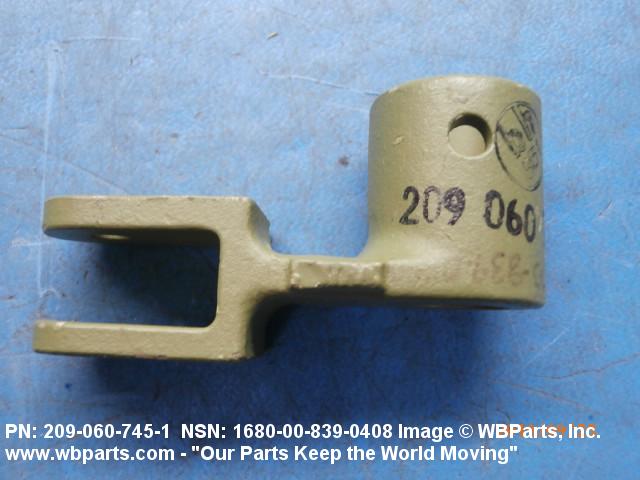

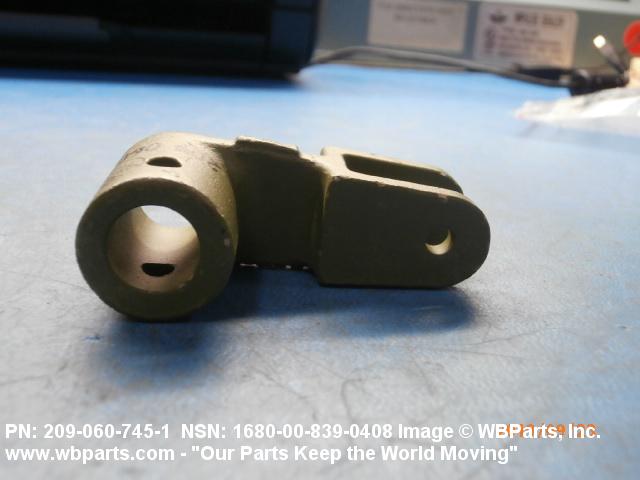

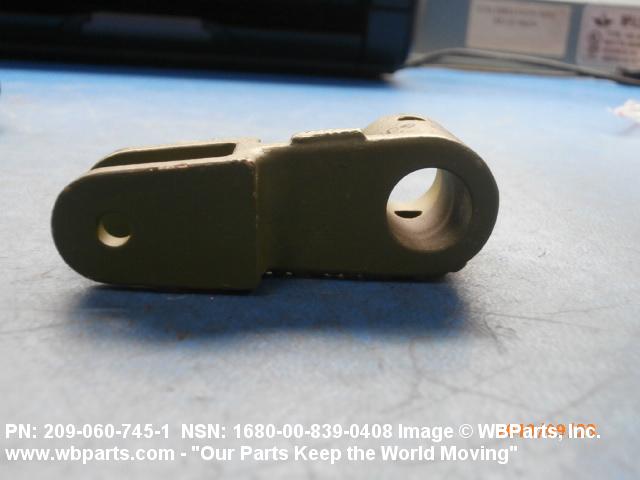

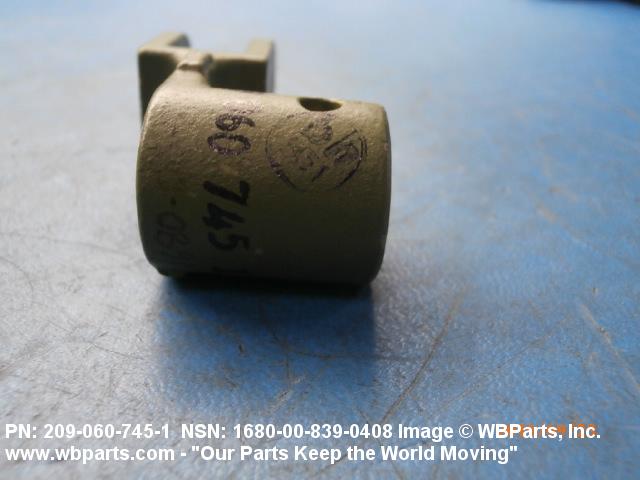

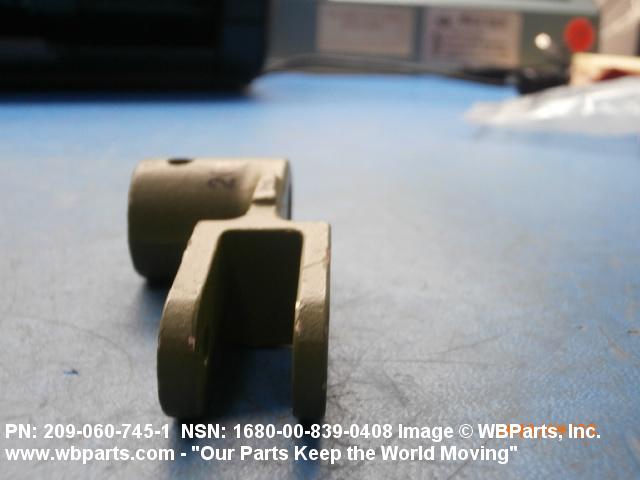

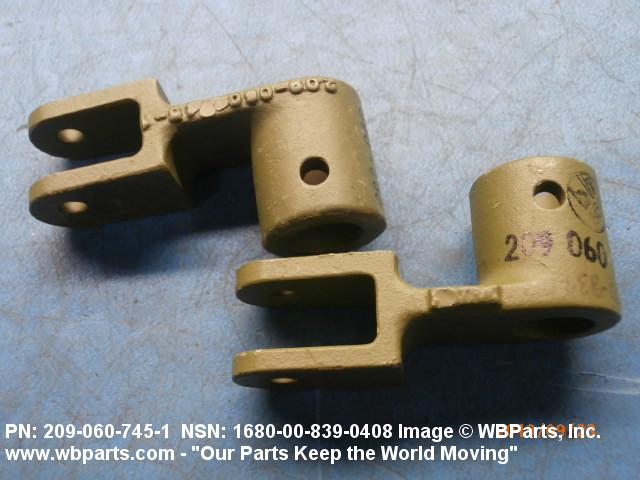

Product Details | REMOTE CONTROL LEVER
1680-00-839-0408 A rigid item usually in the form of an arm of various shapes and cross sections, containing two or more holes so spaced that one serves as a pivot with or without hubs and must have a definite means for securing to a shaft (such as threaded hole for set-screw, keyway(s), splines, serrations or some clamping device). The other hole(s) connect(s) to CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; or CLEVIS, ROD END; to provide transmission of movement to other parts of the mechanism. See also BELL CRANK. For manually operated items see LEVER, MANUAL CONTROL.20311900057Specialized Test and Handling Equipment, Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 2090607451, 209-060-745-1, 1680-00-839-0408, 00-839-0408, 1680008390408, 008390408
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 19 DEC 1966 | 00-839-0408 | 22099 ( LEVER, REMOTE CONTROL ) |
Drawings & Photos | NSN 1680-00-839-0408
Demand History | NSN 1680-00-839-0408
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-839-0408 | 2019-08-221 | 1 | United States |
| 2090607451 | 2019-07-197 | 2 | United States |
Cross Reference | NSN 1680-00-839-0408
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 209-060-745-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1680-00-839-0408
Related Products | NSN 1680-00-839-0408
Technical Data | NSN 1680-00-839-0408
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CHROMATE ZINC |
| STYLE DESIGNATOR | A14 CLEVIS LINK END, SECURING HOLE(S) SHAFT END |

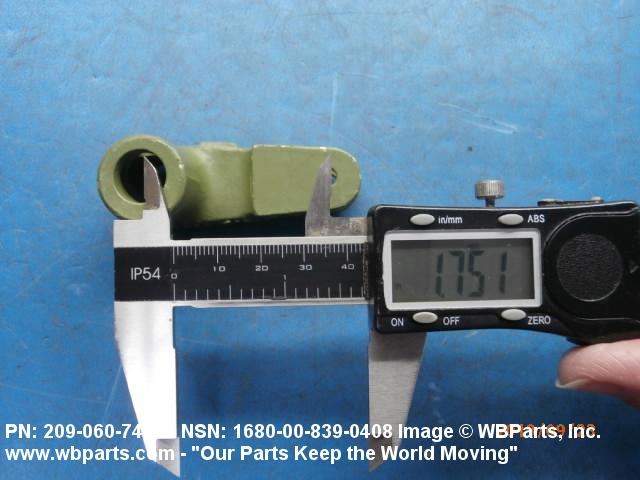

| CENTER TO CENTER DISTANCE BETWEEN LINK AND SHAFT HOLES | 1.750 INCHES NOMINAL |
| SHAFT END THICKNESS | 1.040 INCHES NOMINAL |

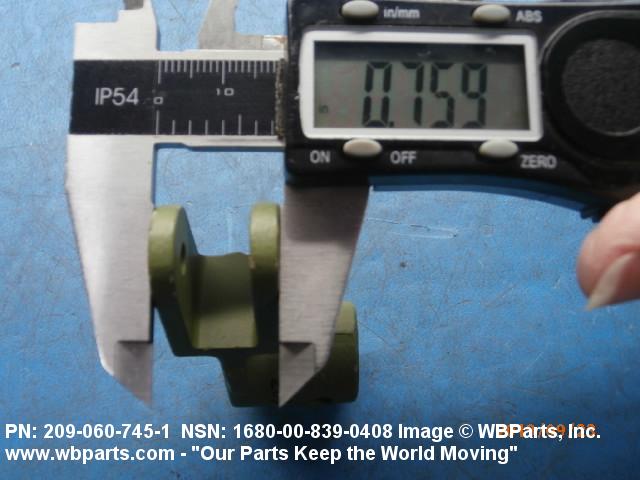

| LINK END THICKNESS | 0.750 INCHES NOMINAL |

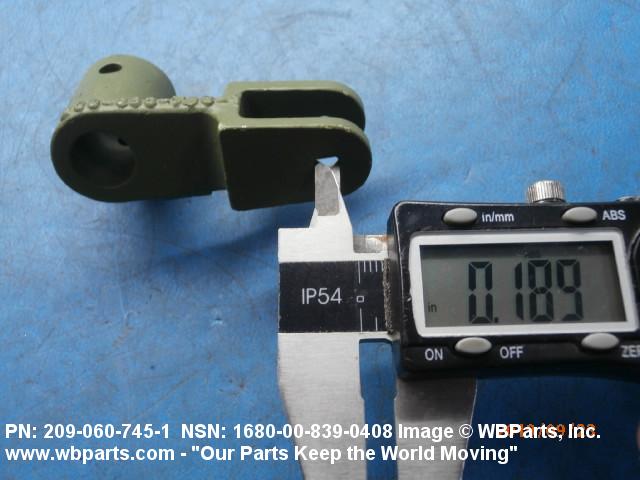

| LINK END HOLE DIAMETER | 0.190 INCHES MINIMUM AND 0.191 INCHES MAXIMUM |

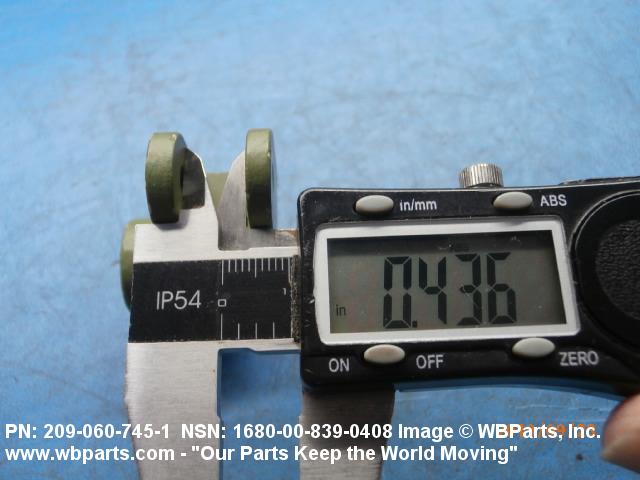

| DISTANCE BETWEEN FORK INSIDE SPREAD | 0.438 INCHES MINIMUM AND 0.443 INCHES MAXIMUM |
| BORE TYPE | PLAIN STRAIGHT |

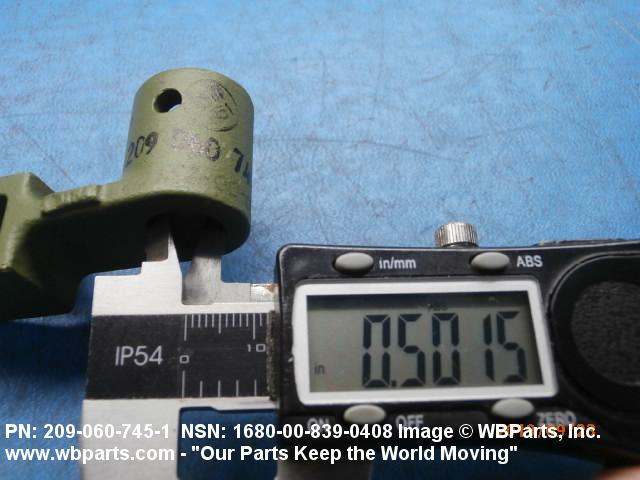

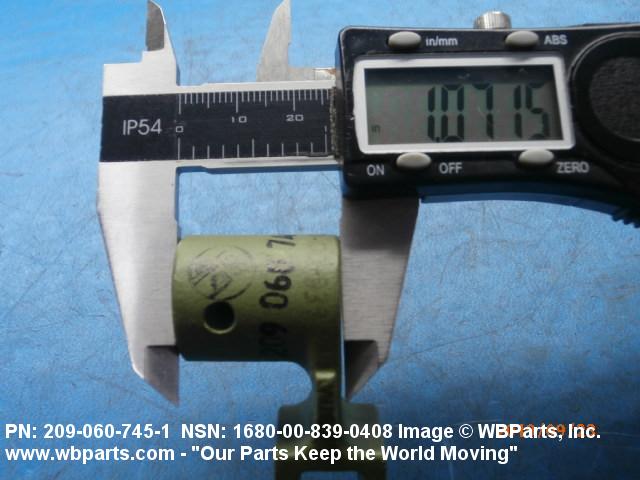

| BORE DIAMETER | 0.501 INCHES MINIMUM AND 0.503 INCHES MAXIMUM |
