NSN 1680-00-516-7315 WEE4371, WEE4-371, 00-516-7315
Product Details | ROTARY ELECTRO-MECHANICAL ACTUATOR
1680-00-516-7315 A self-contained power transmitting device designed to convert electrical energy into controlled mechanical force, in the form of torque (rotational mechanical movement). Comprised of an electric motor(s), gear box(es), limit switch(es), and such accessories as required for the specific moving and positioning of other components. Excludes hydraulic and pneumatic cylinders and screwjacks.21212700040Aircraft Gunnery Fire Control Components14200025Guided Missile Components14400025Launchers, Guided Missile1675000016800049Miscellaneous Aircraft Accessories and Components18200024Space Vehicle Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers30100036Torque Converters and Speed Changers4130000048100015Valves, Powered49200058Aircraft Maintenance and Repair Shop Specialized Equipment
Part Alternates: WEE4371, WEE4-371, 1680-00-516-7315, 00-516-7315, 1680005167315, 005167315
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-516-7315 | 11006 ( ACTUATOR, ELECTRO-MECHANICAL, ROTARY ) |

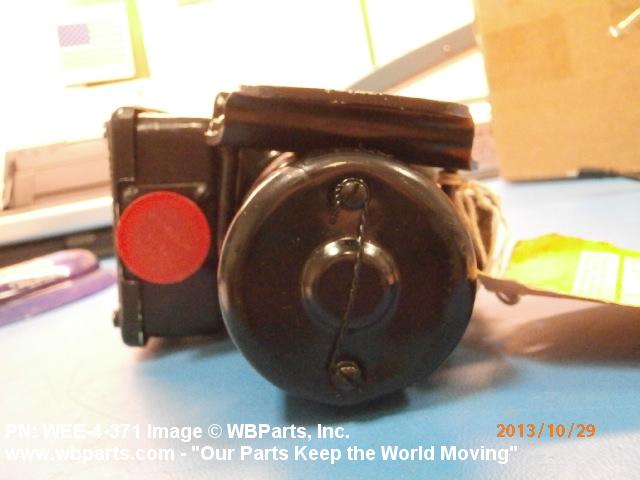

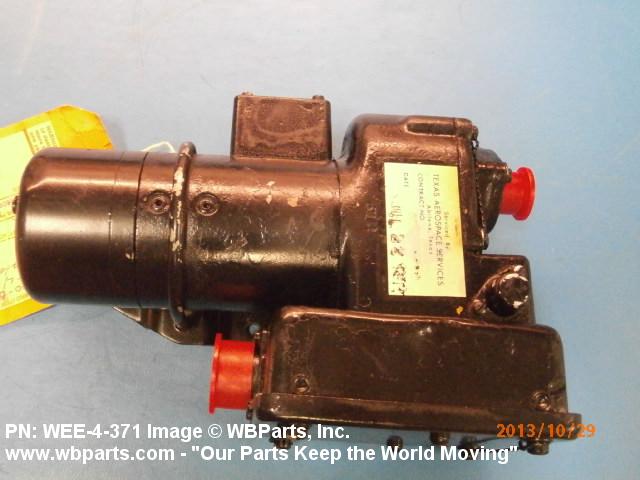

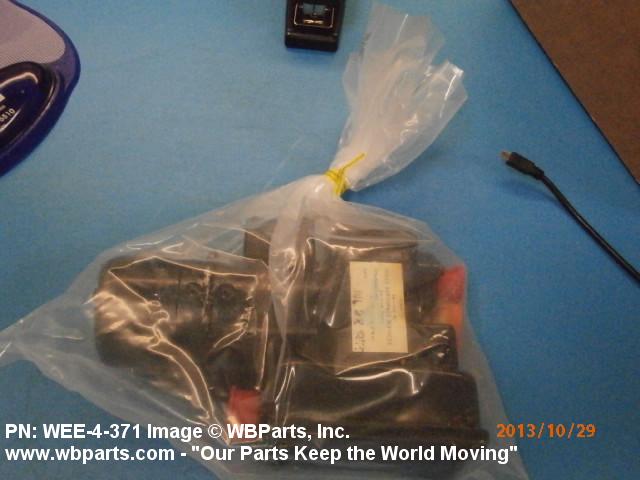

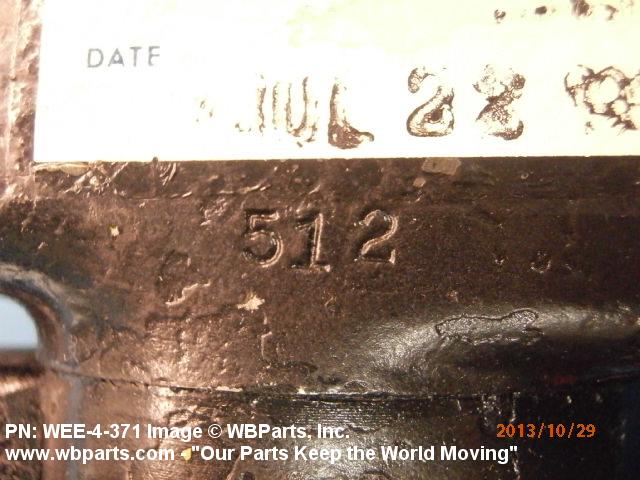

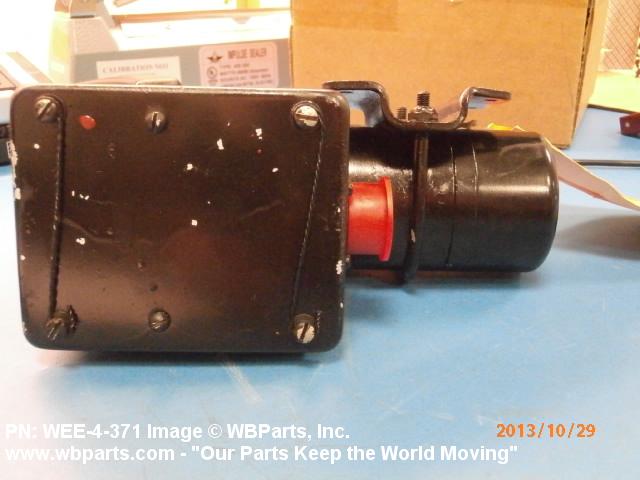

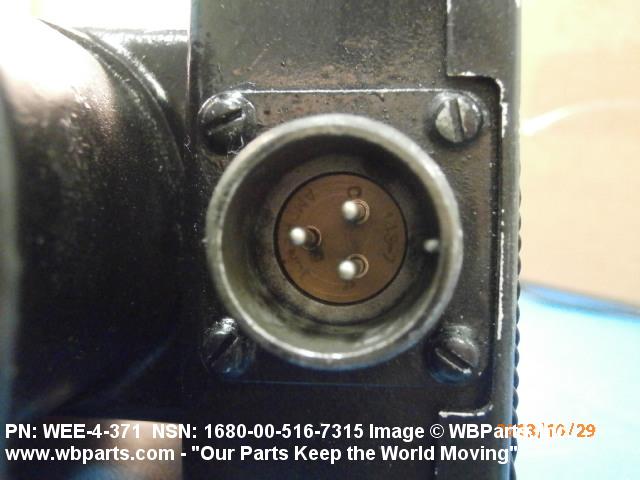

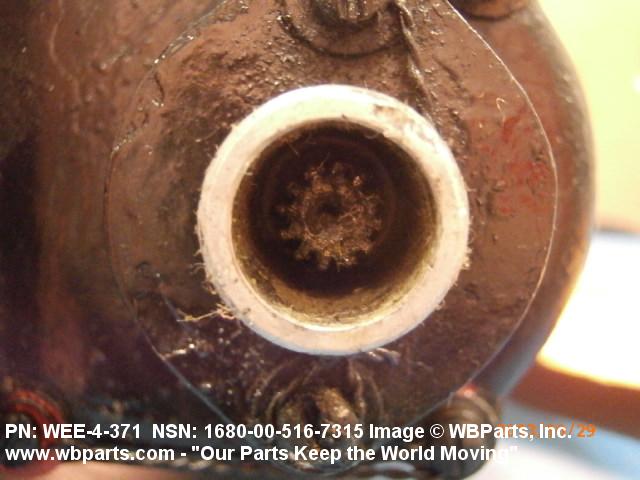

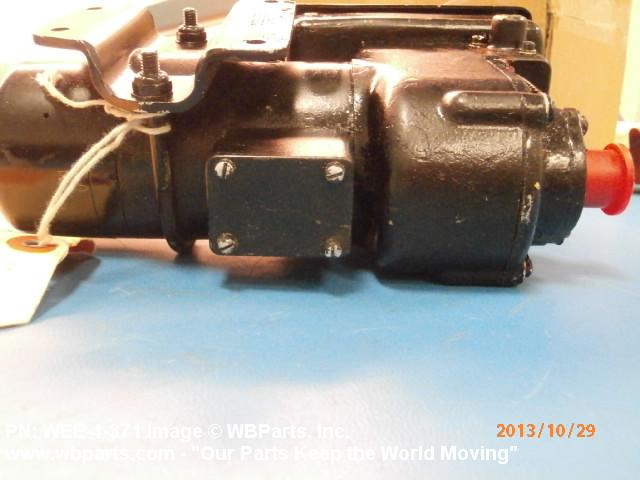

Drawings & Photos | NSN 1680-00-516-7315
Demand History | NSN 1680-00-516-7315
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-516-7315 | 2013-10-283 | 1 | United Kingdom |
| 1680-00-516-7315 | 2009-05-134 | 1 | US |
Cross Reference | NSN 1680-00-516-7315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WEE4-371 | 28298 | SMITH AND SMITH AIRCRAFT CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-00-516-7315
Technical Data | NSN 1680-00-516-7315
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 26.0 |
| CURRENT RATING IN AMPS | 4.2 |
| DUTY CYCLE | INTERMITTENT |
| INTERMITTENT OPERATION DUTY CYCLE | 1.0 MINUTES MAXIMUM ON AND 10.0 MINUTES MINIMUM OFF |
| SHAFT ROTATION DIRECTION | CLOCKWISE AND COUNTERCLOCKWISE |
| DRIVE TYPE | DIRECT |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 9176.0 |
| OUTPUT DRIVE TORQUE RATING | 4.0 INCH-POUNDS |
| BRAKING METHOD | ELECTRIC |
| LIMIT SWITCH CONTROL | INCLUDED |
| THERMAL PROTECTOR RESET METHOD | AUTOMATIC |
| TERMINAL TYPE | CONNECTOR |
| MOUNTING FACILITY | MOUNTING BRACKETS |
| MANUFACTURERS CODE | 28298 |
| DESIGN CONTROL REFERENCE | WEE4-371 |
Restrictions/Controls & Freight Information | NSN 1680-00-516-7315
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
