NSN 2915-00-616-5726 10093502, 1009350-2, 179307
Product Details | ROTARY ELECTRO-MECHANICAL ACTUATOR
2915-00-616-5726 A self-contained power transmitting device designed to convert electrical energy into controlled mechanical force, in the form of torque (rotational mechanical movement). Comprised of an electric motor(s), gear box(es), limit switch(es), and such accessories as required for the specific moving and positioning of other components. Excludes hydraulic and pneumatic cylinders and screwjacks.21212700040Aircraft Gunnery Fire Control Components14200025Guided Missile Components14400025Launchers, Guided Missile1675000016800049Miscellaneous Aircraft Accessories and Components18200024Space Vehicle Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers30100036Torque Converters and Speed Changers4130000048100015Valves, Powered49200058Aircraft Maintenance and Repair Shop Specialized Equipment
Part Alternates: 10093502, 1009350-2, 179307, 2915-00-616-5726, 00-616-5726, 2915006165726, 006165726
Engine Accessories | Engine Fuel System Components, Aircraft and Missile Prime Movers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-616-5726 | 11006 ( ACTUATOR, ELECTRO-MECHANICAL, ROTARY ) |

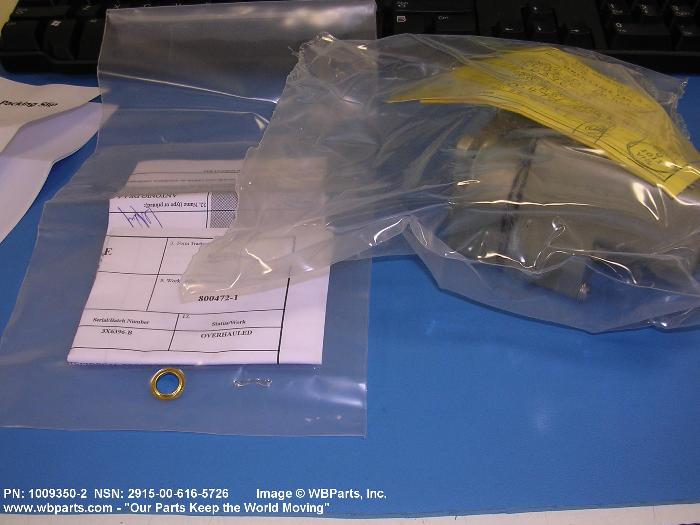

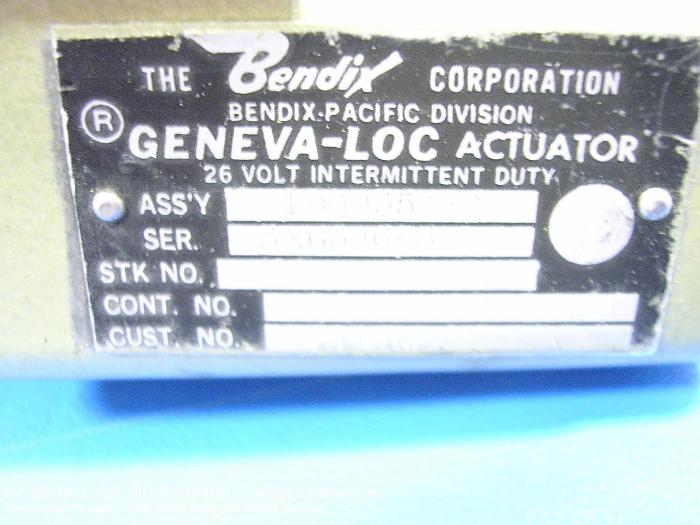

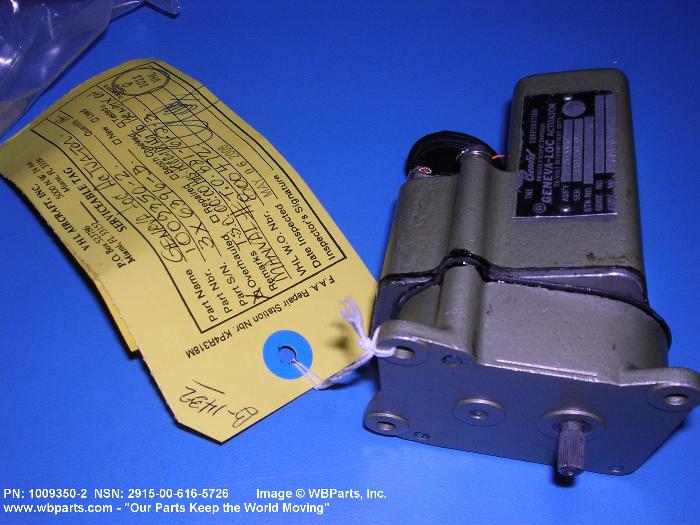

Drawings & Photos | NSN 2915-00-616-5726
Demand History | NSN 2915-00-616-5726
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2915-00-616-5726 | 2024-09-254 | 13 | US |
| 179307 | 2023-08-235 | 2 | Philippines |
| 2915-00-616-5726 | 2023-08-230 | 5 | NG |
| 2915-00-616-5726 | 2023-08-223 | 5 | AE |
| 2915-00-616-5726 | 2023-08-222 | 5 | CA |
| 2915-00-616-5726 | 2023-08-222 | 5 | United States |
| 10093502 | 2022-12-349 | 2 | Philippines |
| 179307 | 2022-12-349 | 2 | Philippines |
| 179307 | 2020-02-50 | 4 | ZA |
| 2915-00-616-5726 | 2019-02-38 | 5 | MANUAL |
| 10093502 | 2016-03-64 | 1 | United States |
| 2915-00-616-5726 | 2015-11-323 | 4 | PH |
| 179307 | 2015-11-320 | 4 | Philippines |
| 2915-00-616-5726 | 2015-11-320 | 4 | Philippines |
| 179307 | 2015-09-272 | 2 | IN |
| 1009350-2 | 2014-04-97 | 1 | IT |
| 2915-00-616-5726 | 2012-05-150 | 9 | Malaysia |
| 10093502 | 2012-03-89 | 1 | Malaysia |
| 1009350-2 | 2011-09-257 | 9 | Indonesia |
| 1009350-2 | 2011-09-256 | 9 | Indonesia |
| 2915-00-616-5726 | 2011-06-179 | 1 | United States |
| 179307 | 2011-05-139 | 2 | US |
| 179307 | 2010-08-242 | 4 | United Kingdom |
| 2915-00-616-5726 | 2009-08-221 | 2 | Malaysia |
| 2915-00-616-5726 | 2009-08-220 | 1 | Spain |
| 2915-00-616-5726 | 2009-02-32 | 1 | Philippines |
| 2915-00-616-5726 | 2008-12-350 | 4 | Indonesia |
| 10093502 | 2008-08-217 | 1 | JO |
| 10093502 | 2008-04-108 | 1 | Malaysia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2915-00-616-5726
Related Products | NSN 2915-00-616-5726
Technical Data | NSN 2915-00-616-5726
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 28.0 |
| CURRENT RATING IN AMPS | 6.5 |
| DUTY CYCLE | INTERMITTENT |
| INTERMITTENT OPERATION DUTY CYCLE | 1.0 SECONDS MAXIMUM ON AND 14.0 SECONDS MINIMUM OFF |
| SHAFT ROTATION DIRECTION | CLOCKWISE AND COUNTERCLOCKWISE |
| DRIVE TYPE | DIRECT |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 51.6 |
| ANGULAR SHAFT ROTATION | ADJUSTABLE |
| ROTATION IN DEG | 90.0 NOMINAL |
| OUTPUT DRIVE TORQUE RATING | 4.2 FOOT-POUNDS |
| BRAKING METHOD | ELECTRIC |
| LIMIT SWITCH CONTROL | INCLUDED |
| MAXIMUM OPERATING ALTITUDE RATING | 60000.0 FEET |
| MANUAL OVERRIDE | NOT INCLUDED |
| TERMINAL TYPE | CONNECTOR |
| III FSC APPLICATION DATA | FUEL CONTROL,ENGINE,ACFT |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 1009350-2 |
Restrictions/Controls & Freight Information | NSN 2915-00-616-5726
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 2915-00-616-5726
Air Force
Navy
Coast Guard| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | OJ | SX:"ALLISON JET ENGINES & COMPONENTS, T-56" |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | DQ | TURBO PROPENGINES(T56) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | E | (1) IRAM Program Intensive Management Reparables (2) Material (expendable ordnance) Requiring Lot and Serial Number Control but which is Reported by Serial Number Only |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | R | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
