NSN 1650-01-478-6192 K678753003, K678753-003, 01-478-6192
Product Details | FLUID FILTERING DISK
1650-01-478-6192 A flat, circular, replaceable device, with or without a centrally located hole, designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous, fibrous or shredded material (metallic or non-metallic) which retains the solid particles in the fluid passing through it. It may be encased and used as a single item or stacked to form a fluid filter element. Excludes DISK, SOLID, PLAIN; DIAPHRAGM (as modified); STRAINER ELEMENT, SEDIMENT; and WIRE FABRIC.20616500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: K678753003, K678753-003, 1650-01-478-6192, 01-478-6192, 1650014786192, 014786192
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 20 SEP 2000 | 01-478-6192 | 61856 ( FILTERING DISK, FLUID ) |
Drawings & Photos | NSN 1650-01-478-6192
Cross Reference | NSN 1650-01-478-6192
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K678753-003 | 84955 | KAMAN AEROSPACE CORPORATION DBA AIR VEHICLES & MRO DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-01-478-6192
Technical Data | NSN 1650-01-478-6192
| Characteristic | Specifications |
|---|---|

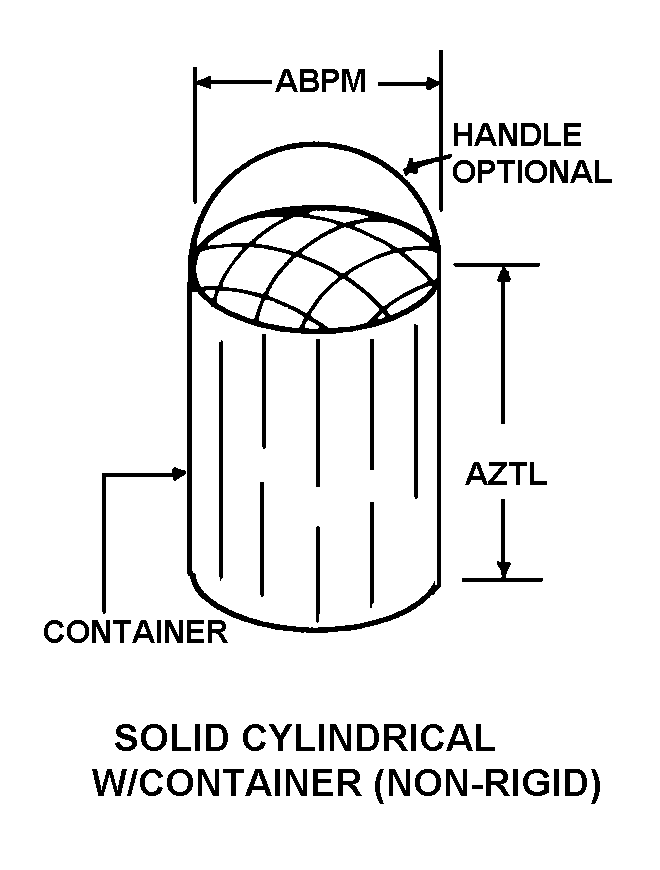

| STYLE DESIGNATOR | A24 SOLID CYLINDRICAL W/CONTAINER |
| BODY DIAMETER | 2.843 INCHES NOMINAL |
| BODY OVERALL LENGTH | 3.350 INCHES MINIMUM AND 3.750 INCHES MAXIMUM |
| MATERIAL | STEEL CORROSION RESISTING BODY |
| FILTERING MEDIA DESIGN | MESH SINGLE FILTERING MEDIA RESPONSE |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| III END ITEM IDENTIFICATION | USED ON SH-2G SUPER SEASPRITE NAVAL HEKICOPTER TRANSMISSION OIL TANK |
Restrictions/Controls & Freight Information | NSN 1650-01-478-6192
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
