NSN 1650-01-146-0313 10106141 , 595602, 59560-2
Product Details | DIRECTIONAL CONTROL LINEAR VALVE
1650-01-146-0313 A manually or power operated valve having three or more ports. The direction of the flow through the various ports is controlled by either one or more reciprocating slide(s) or spool(s) with recess areas which mate with ports in an integral or replaceable ported sleeve, or one or more poppet(s). It is designed to change the direction of fluid flow from one valve port to another. An off (no flow) position is not a flow pattern. The valve is designed to actuate various components of a fluid system. A power operated valve may have a manual override. For items which stop, start, or change the flow of fluid, see: VALVE, SOLENOID. Excludes VALVE, PLUG. See also SERVOVALVE, HYDRAULIC; BODY SECTION, WORKING, LINEAR DIRECTIONAL CONTROL VALVE; and VALVE ASSEMBLY.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 10106141 , 595602, 59560-2, 1650-01-146-0313, 01-146-0313, 1650011460313, 011460313
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 23 JAN 1983 | 01-146-0313 | 61929 ( VALVE, LINEAR, DIRECTIONAL CONTROL ) |

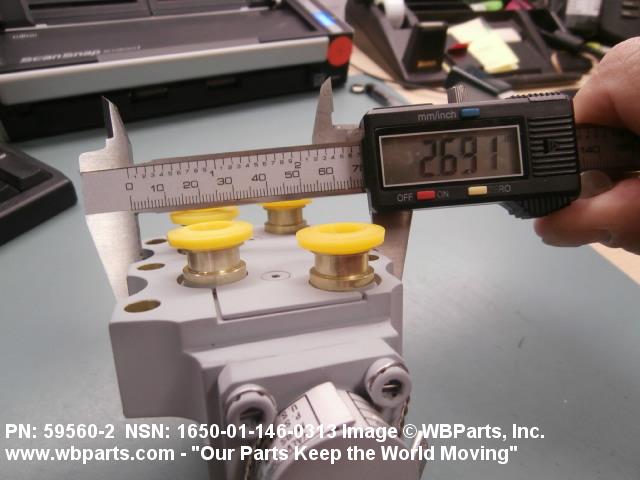

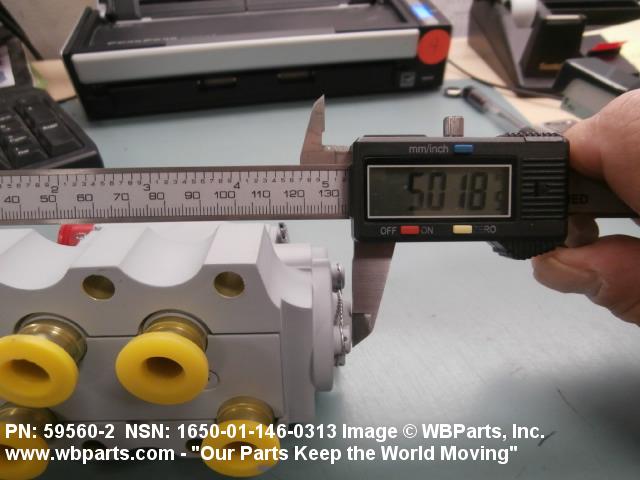

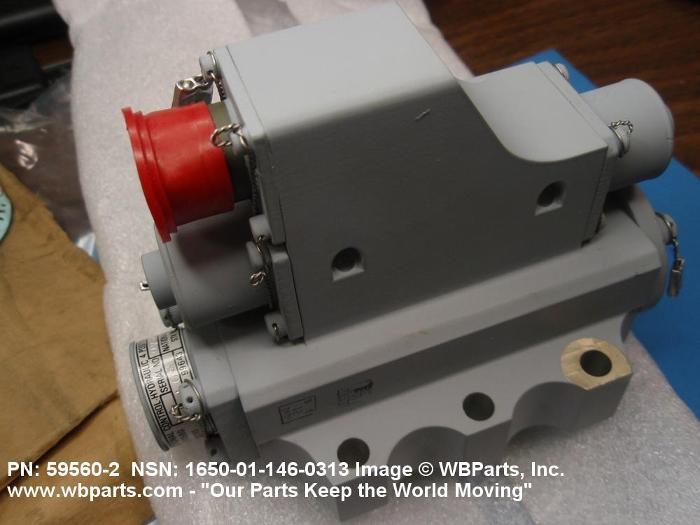

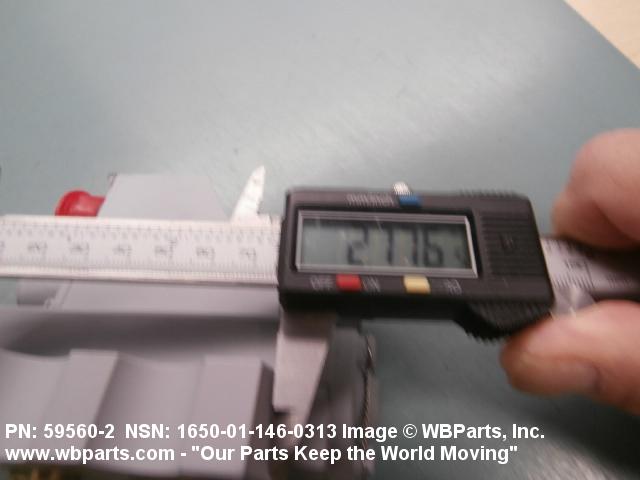

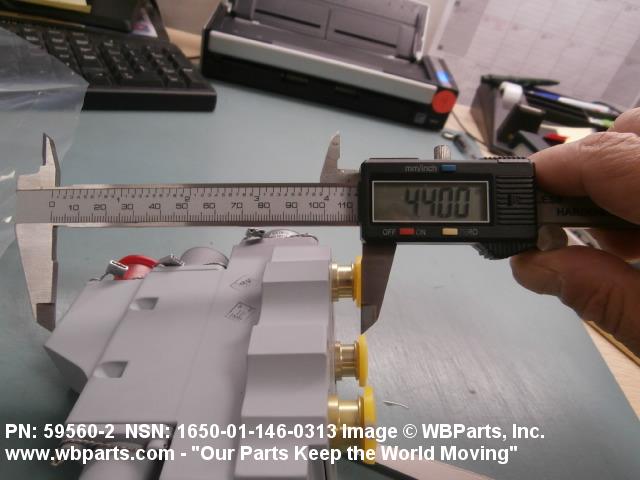

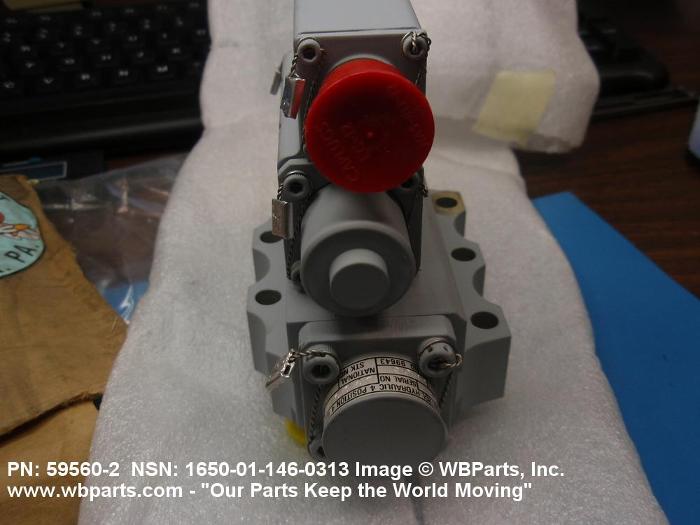

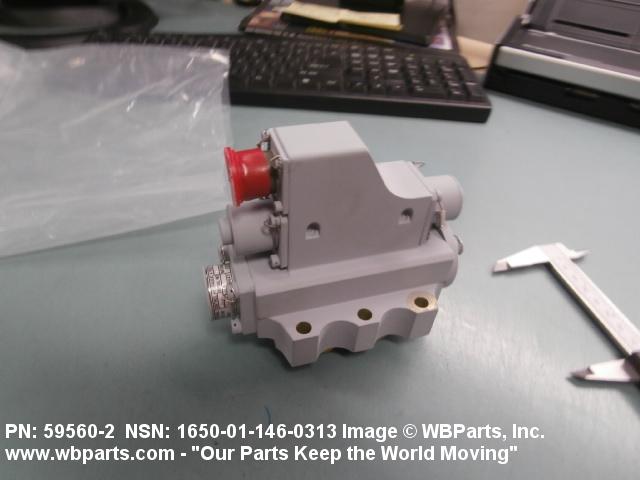

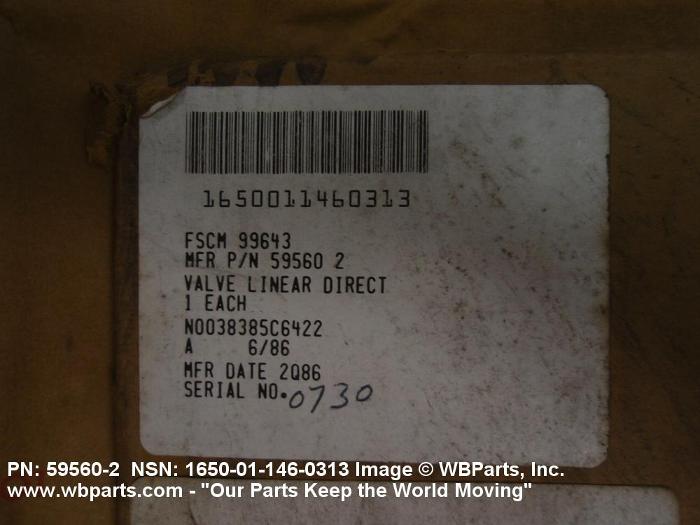

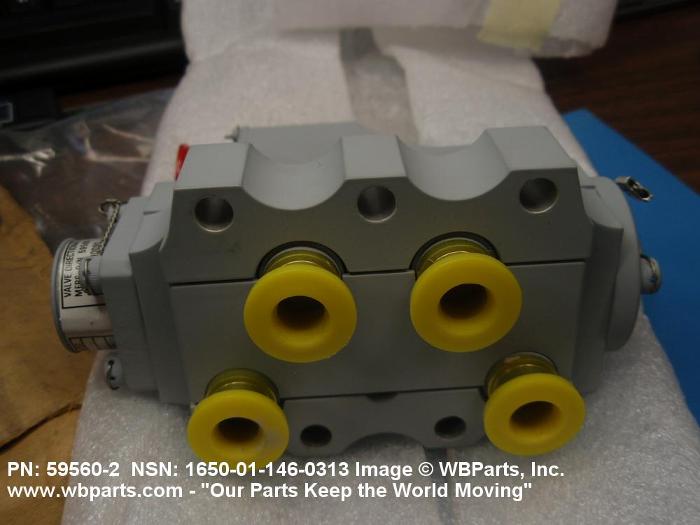

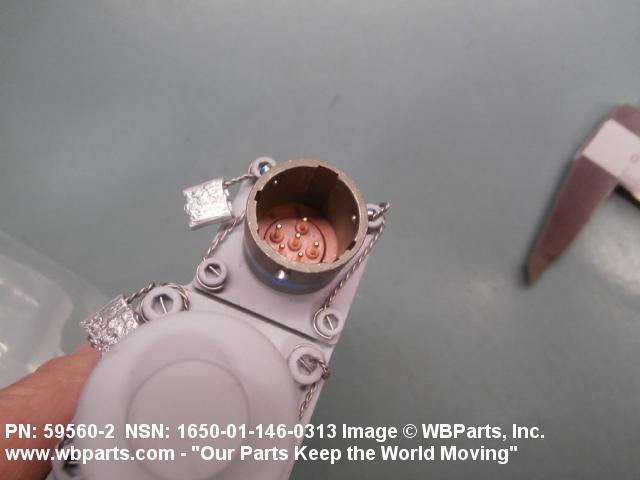

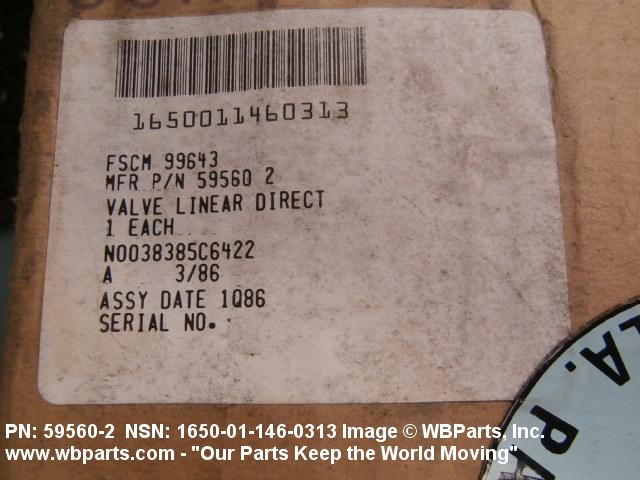

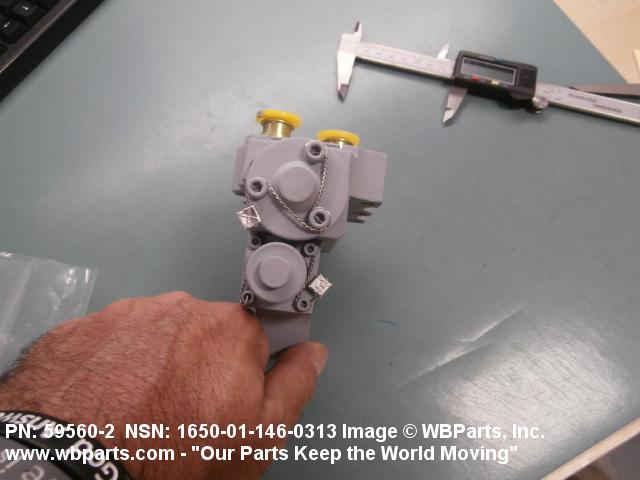

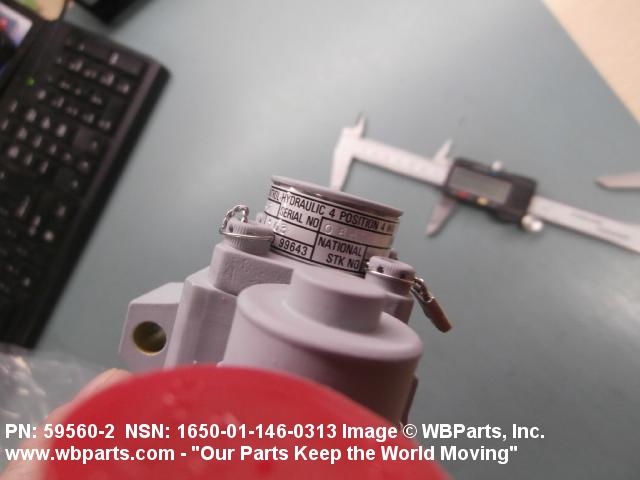

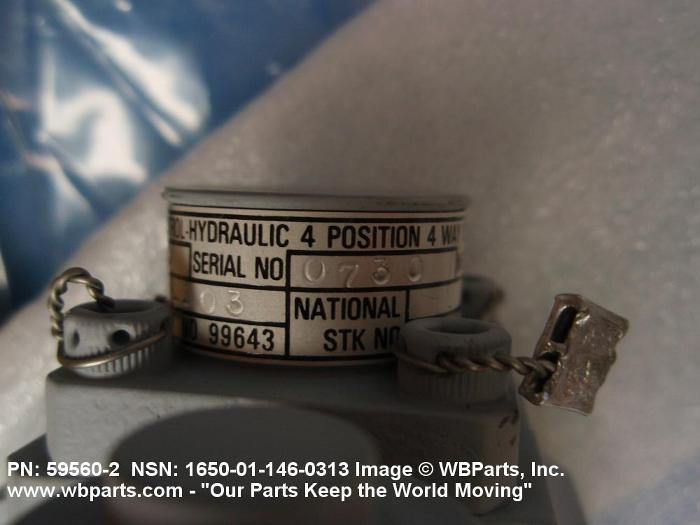

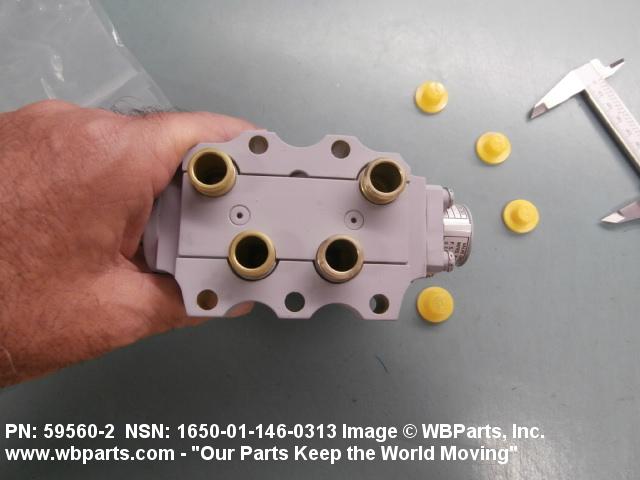

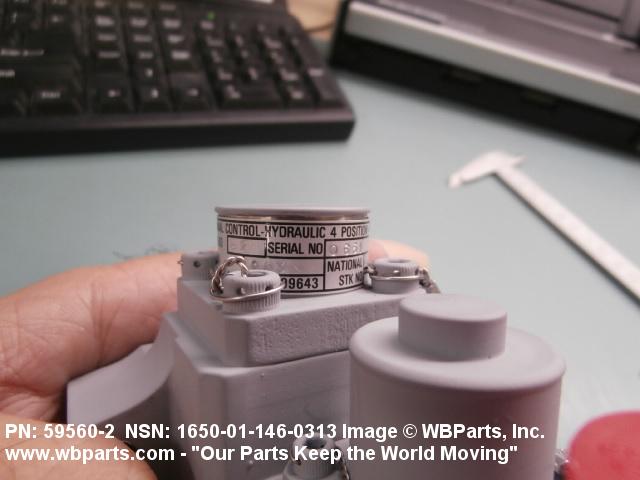

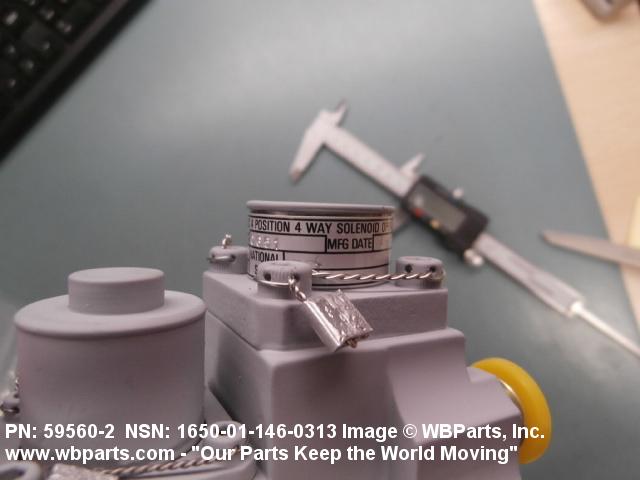

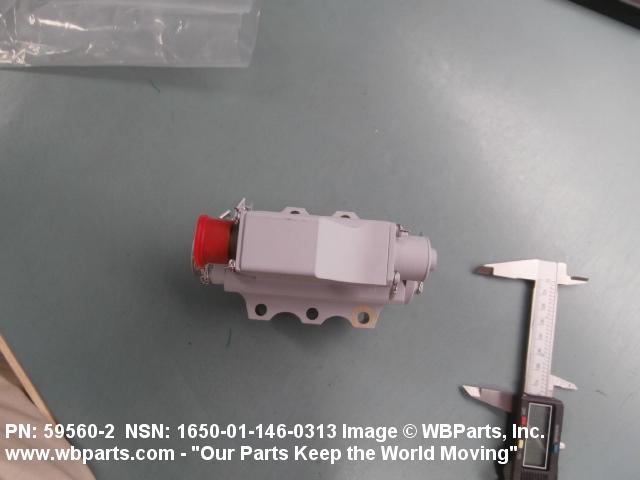

Drawings & Photos | NSN 1650-01-146-0313
Demand History | NSN 1650-01-146-0313
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-01-146-0313 | 2017-12-352 | 1 | DIBBS |
| 1650-01-146-0313 | 2015-11-306 | 1 | DIBBS |
| 1650-01-146-0313 | 2014-11-321 | 1 | DIBBS |
| 1650-01-146-0313 | 2014-11-313 | 1 | DIBBS |
| 1650-01-146-0313 | 2014-10-280 | 1 | DIBBS |
| 1650-01-146-0313 | 2014-07-195 | 1 | United States |
| 1650-01-146-0313 | 2014-06-181 | 1 | DIBBS |
| 595602 | 2014-03-72 | 2 | US |
| 1650-01-146-0313 | 2011-04-104 | 0 | United States |
| 1650-01-146-0313 | 2011-04-94 | 1 | DIBBS |
| 1650-01-146-0313 | 2011-01-18 | 1 | DIBBS |
| 1650-01-146-0313 | 2009-03-69 | 1 | DIBBS |
| 1650-01-146-0313 | 2007-11-311 | 4 | DIBBS |
Cross Reference | NSN 1650-01-146-0313
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 59560-2 | 99643 | EATON CORPORATION DBA EATON AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-01-146-0313
Technical Data | NSN 1650-01-146-0313
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | 4.000 IN. MAX H,2.690 IN. NOM W,5.300 IN. MAX LG,FLUID PER MIL-H-83282,PRESSURE: 3000 PSI OPERATING (4050 PSI TRANSIENTS),4500 PSI PROOF,7500 PSI BURST,RATED FLOW 15 GPM,ELECTRICAL POWER 0.75 AMPS MAX AT 28 VDC (75 F),ACTUAL WEIGHT 2.465 POUNDS |
| III END ITEM IDENTIFICATION | AIRCRAFT MODEL F-18 |
| MANUFACTURERS CODE | 99643 |
| DESIGN CONTROL REFERENCE | 59560-2 |
Restrictions/Controls & Freight Information | NSN 1650-01-146-0313
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1650-01-146-0313
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | GF | (Non-HSP) FIGHTER SUPPORTAIRCRAFT(F/A-18) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
