NSN 1640-01-150-9542 011509542
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
1640-01-150-9542 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 011509542
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01-150-9542 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 1640-01-150-9542
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-01-150-9542
Technical Data | NSN 1640-01-150-9542
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 ALL ATTACHMENTS STEEL CORROSION RESISTING WIRE ROPE STEEL CORROSION RESISTING CORE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 FED SPEC SINGLE MATERIAL RESPONSE OR 66 FED STD SINGLE MATERIAL RESPONSE ALL ATTACHMENTS MIL-W-83420,COMP B MIL SPEC SINGLE MATERIAL RESPONSE WIRE ROPE MIL-W-83420,COMP B MIL SPEC SINGLE MATERIAL RESPONSE CORE |
| SURFACE TREATMENT | PASSIVATE ALL ATTACHMENTS |
| CORE CONSTRUCTION | WIRE |
| STYLE DESIGNATOR | A120 7 X 7 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 0.490 FEET MINIMUM AND 0.510 FEET MAXIMUM |
| DIAMETER | 0.094 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 480.000 POUNDS MINIMUM |
| END TYPE | LOOP FIRST END TERMINAL ATTACHMENT SECOND END |

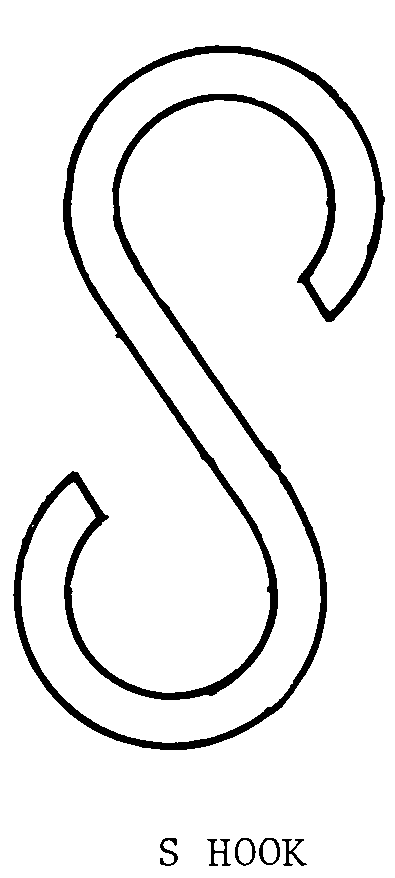

| ATTACHMENT STYLE | D55 S HOOK TERMINAL ATTACHMENT SECOND END |
| LOOP RETENTION METHOD | SWAGE |
| SPECIAL FEATURES | PLASTIC COATING ZYTEL 69,WIRE ROPE |
Restrictions/Controls & Freight Information | NSN 1640-01-150-9542
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
