Product Details | SINGLE LEG WIRE ROPE ASSEMBLY

1640-01-070-5645 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.

Part Alternates: 010705645

Aircraft Components and Accessories | Aircraft Control Cable Products

Supply Group (FSG) NSN Assign. NIIN
16 01-070-5645

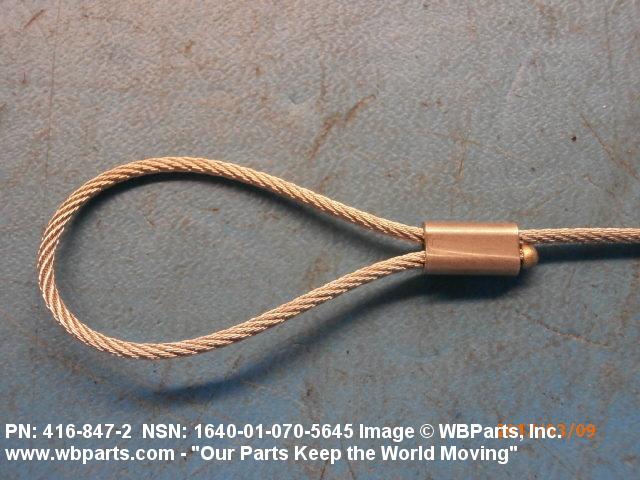

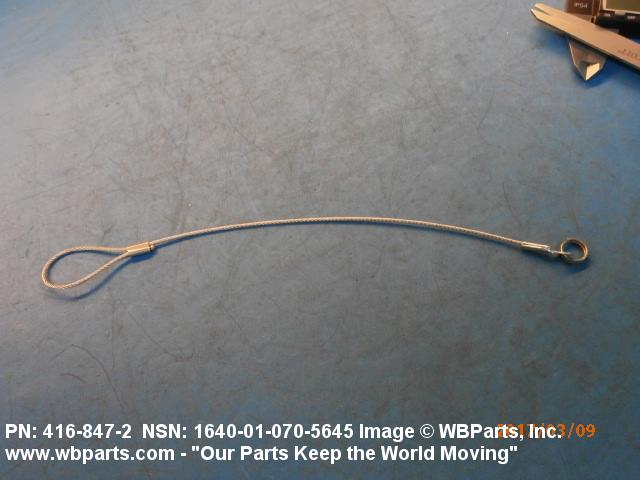

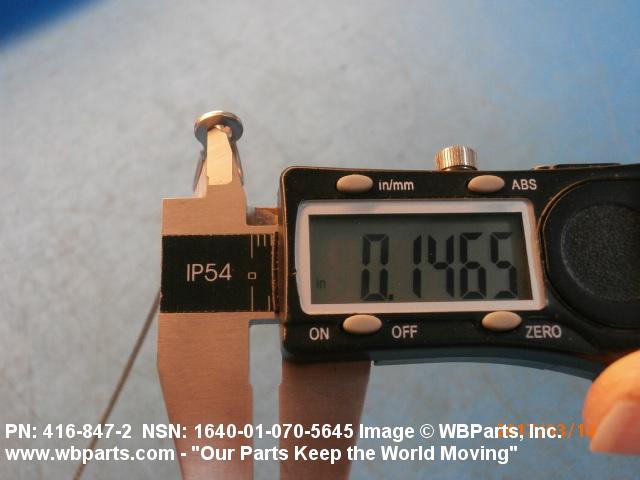

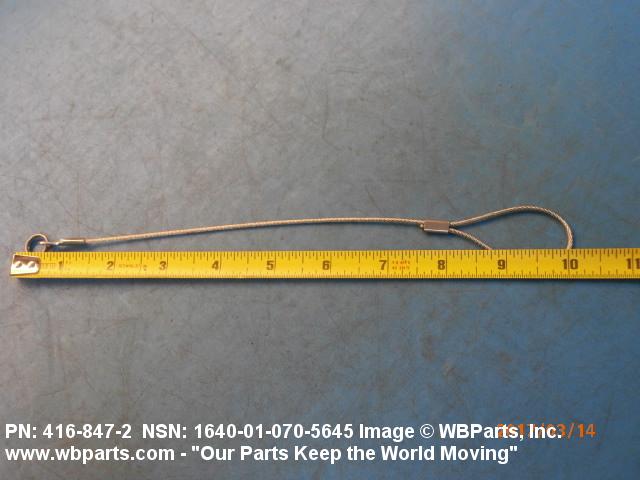

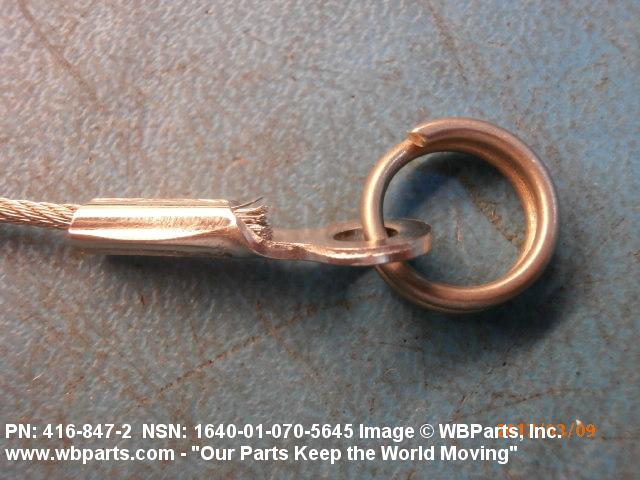

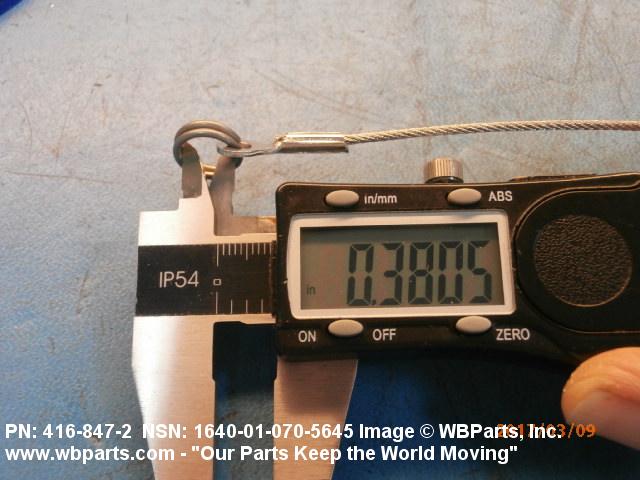

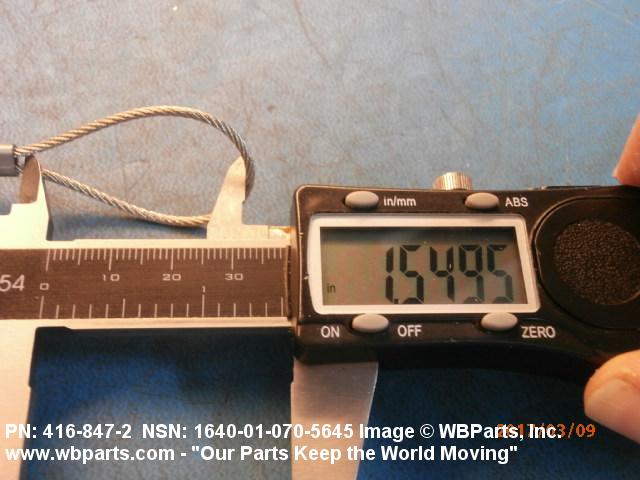

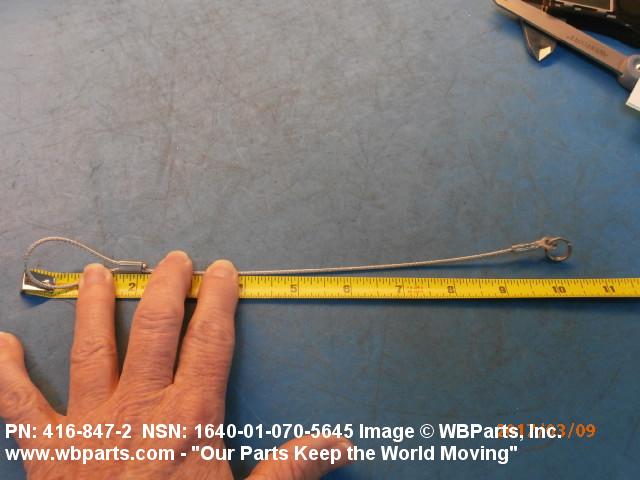

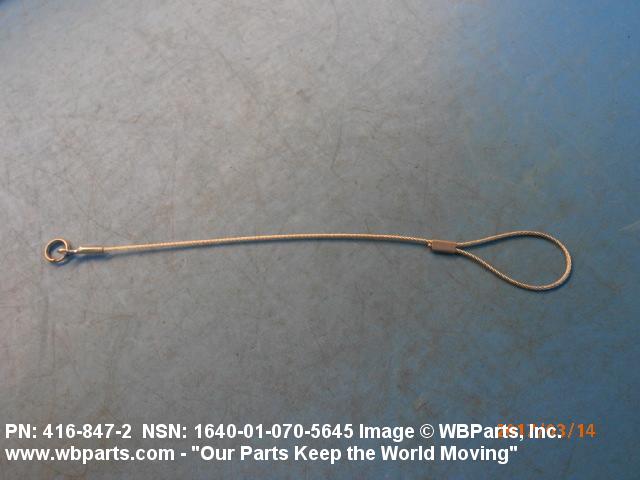

Drawings & Photos | NSN 1640-01-070-5645


Demand History | NSN 1640-01-070-5645

Part Number Request Date QTY Origin
745010101 2017-02-40 20 Lebanon
1640-01-070-5645 2010-01-04 4 United States
745010101 2008-12-357 2 US
1640-01-070-5645 2007-11-310 446 DIBBS
1640-01-070-5645 2007-08-236 461 DIBBS
1640-01-070-5645 2007-06-171 682 DIBBS
1640-01-070-5645 2007-02-36 350 DIBBS
1640-01-070-5645 2006-06-179 55 DIBBS
1640-01-070-5645 2006-05-136 42 DIBBS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 1640-01-070-5645

Technical Data | NSN 1640-01-070-5645

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING CORE
CORE CONSTRUCTION INDEPENDENT WIRE ROPE
LAY METHOD LEFT REGULAR OR RIGHT REGULAR ALL LAYERS
PREFABRICATION FORM STRAIGHT
OVERALL LENGTH 11.880 FEET MINIMUM AND 12.120 FEET MAXIMUM

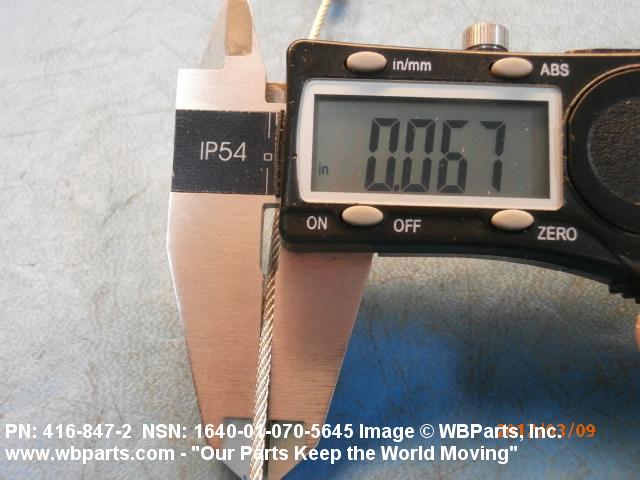

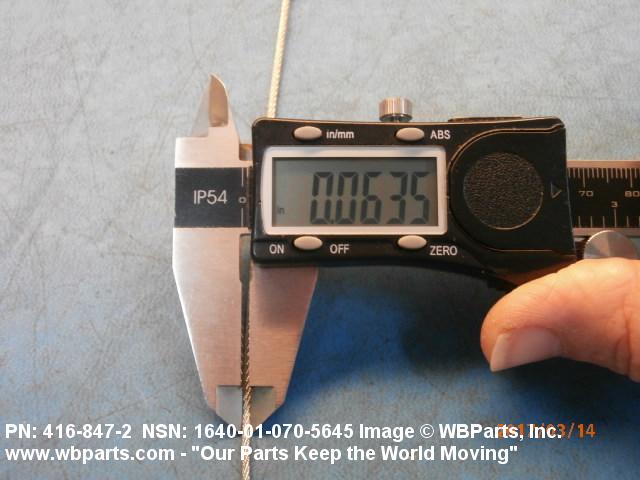

DIAMETER 0.062 INCHES NOMINAL ROPE

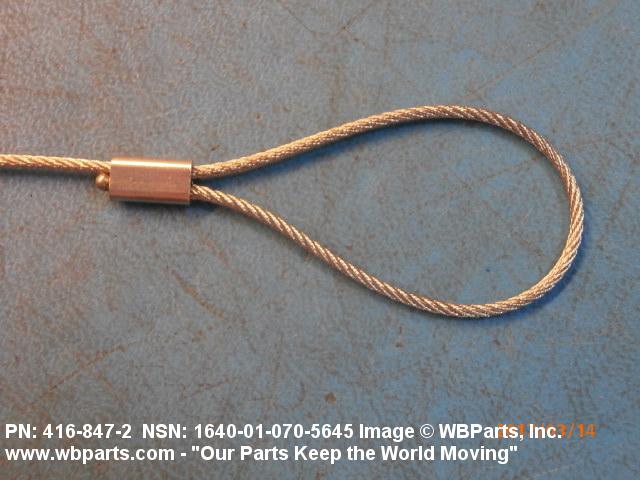

END TYPE LOOP FIRST END

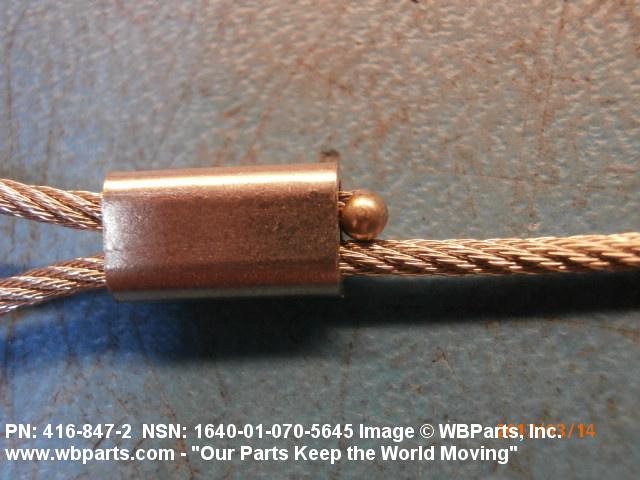

LOOP RETENTION METHOD CLAMP
LOOP INSIDE LENGTH 0.090 INCHES MINIMUM AND 0.150 INCHES MAXIMUM FIRST END
MANUFACTURERS CODE 96124
MFR SOURCE CONTROLLING REFERENCE 745010-101

Restrictions/Controls & Freight Information | NSN 1640-01-070-5645

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Controlled Inventory Item Code:UUNCLASSIFIED
Category Code Description
No Freight Information
