NSN 1640-00-889-2314 008892314
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
1640-00-889-2314 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 008892314
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-889-2314 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 1640-00-889-2314
Demand History | NSN 1640-00-889-2314
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-00-889-2314 | 2012-01-08 | 4 | UK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-889-2314
Technical Data | NSN 1640-00-889-2314
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE OR STEEL COMP 305 ALL ATTACHMENTS STEEL COMP 302 WIRE ROPE STEEL COMP 302 CORE |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES ALL ATTACHMENTS MIL-C-5424 MIL SPEC SINGLE MATERIAL RESPONSE WIRE ROPE MIL-C-5424 MIL SPEC SINGLE MATERIAL RESPONSE CORE |
| SURFACE TREATMENT | PASSIVATE ALL ATTACHMENTS PASSIVATE WIRE ROPE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-T-781 MIL SPEC SINGLE TREATMENT RESPONSE ALL ATTACHMENTS |
| CORE CONSTRUCTION | WIRE |
| STYLE DESIGNATOR | A120 7 X 7 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 15.332 FEET MINIMUM AND 15.343 FEET MAXIMUM |
| DIAMETER | 0.094 INCHES MINIMUM AND 0.106 INCHES MAXIMUM ROPE |
| BREAKING STRENGTH | 920.000 POUNDS MINIMUM |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |

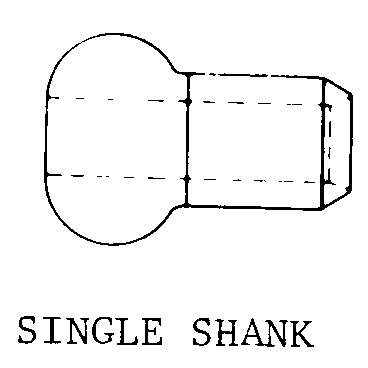

| ATTACHMENT STYLE | D2 SINGLE SHANK TERMINAL ATTACHMENT FIRST END D182 STUD TERMINAL TERMINAL ATTACHMENT SECOND END |
| THREAD SERIES DESIGNATOR | UNF TERMINAL ATTACHMENT SECOND END |
| NOMINAL THREAD SIZE | 0.190 INCHES TERMINAL ATTACHMENT SECOND END |
| THREAD QUANTITY PER INCH | 32 TERMINAL ATTACHMENT SECOND END |
| THREAD CLASS | 3A TERMINAL ATTACHMENT SECOND END |
| THREAD DIRECTION | LEFT-HAND TERMINAL ATTACHMENT SECOND END |
| THREAD LENGTH | 0.453 INCHES NOMINAL AND 0.547 INCHES MAXIMUM TERMINAL ATTACHMENT SECOND END |
| SPECIFICATION/STANDARD DATA | 80205-NAS313 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 1640-00-889-2314
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
