NSN 1640-00-789-1058 007891058
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
1640-00-789-1058 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 007891058
Aircraft Components and Accessories | Aircraft Control Cable Products
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
16 | 00-789-1058 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Demand History | NSN 1640-00-789-1058
Part Number | Request Date | QTY | Origin |
---|---|---|---|
1640-00-789-1058 | 2010-08-239 | 35 | US |
1640-00-789-1058 | 2010-08-238 | 35 | DIBBS |
1640-00-789-1058 | 2008-10-281 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 1640-00-789-1058
Related Products | NSN 1640-00-789-1058
Technical Data | NSN 1640-00-789-1058
Characteristic | Specifications |
---|---|
MATERIAL | STEEL COMP 1010 OR STEEL COMP 1015 TERMINAL ATTACHMENT FIRST END |
MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A108 ASSN STD ALL MATERIAL RESPONSES TERMINAL ATTACHMENT FIRST END |
SURFACE TREATMENT | ZINC TERMINAL ATTACHMENT FIRST END |
CORE CONSTRUCTION | FIBER |
STYLE DESIGNATOR | A60 6 X 19 |
LAY METHOD | RIGHT REGULAR ALL LAYERS |
PREFABRICATION FORM | PREFORMED |
OVERALL LENGTH | 11.833 FEET NOMINAL |
DIAMETER | 0.857 INCHES MINIMUM AND 0.922 INCHES MAXIMUM ROPE |
BREAKING STRENGTH | 70000.000 POUNDS NOMINAL |
END TYPE | LOOP FIRST END TERMINAL ATTACHMENT SECOND END |

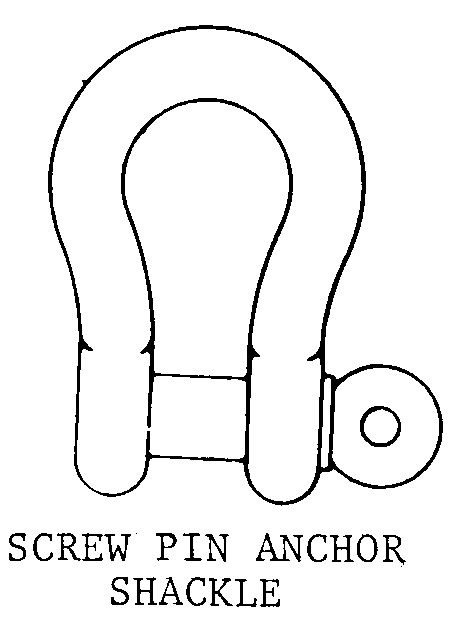

ATTACHMENT STYLE | D133 SCREW PIN ANCHOR SHACKLE TERMINAL ATTACHMENT FIRST END |
LOOP RETENTION METHOD | SWAGE |
MANUFACTURERS CODE | 80064 |
DESIGN CONTROL REFERENCE | 803-1313821 |
Restrictions/Controls & Freight Information | NSN 1640-00-789-1058
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Category | Code | Description |
---|---|---|
No Freight Information |
