NSN 1640-00-273-9279 MS2125910RH, MS21259-10RH, AN66610R
Product Details | STUD WIRE ROPE TERMINAL

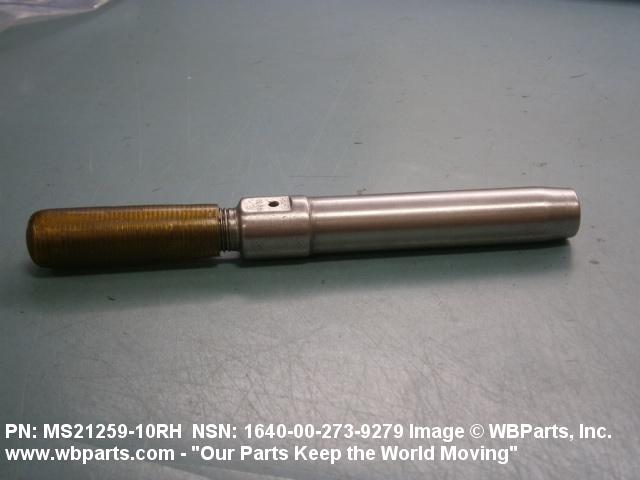

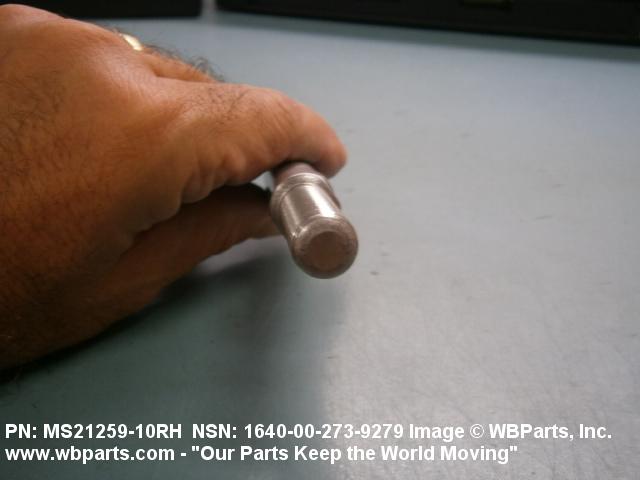

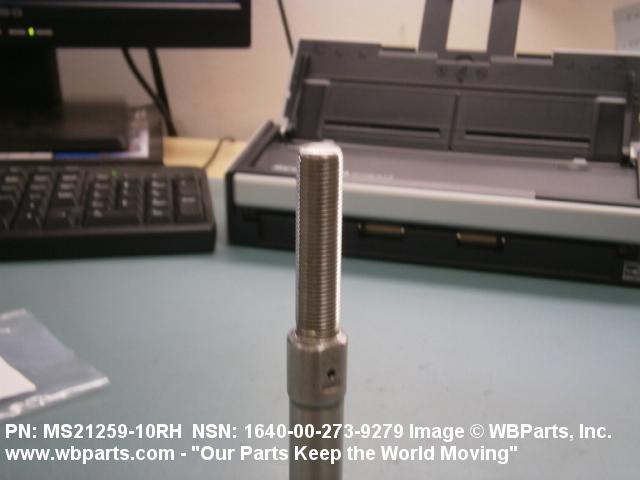

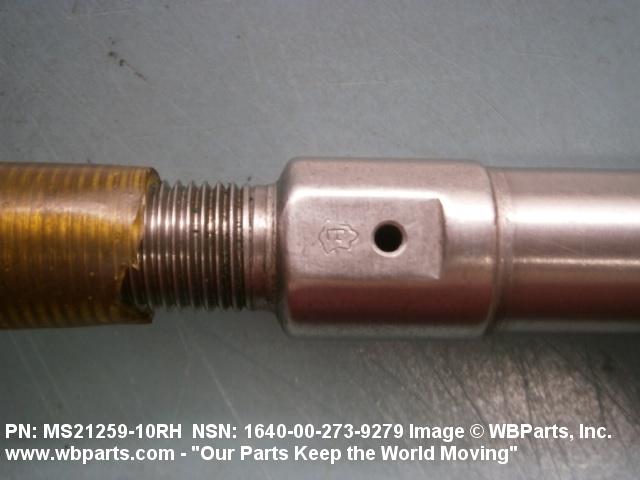

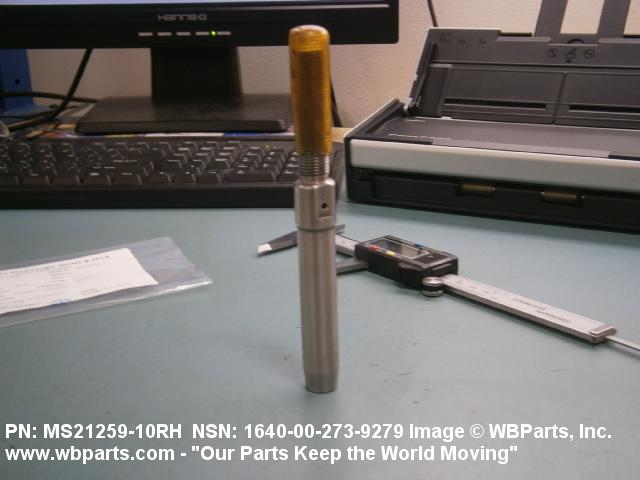

1640-00-273-9279 An aircraft control system item designed for swaging to another item as an end termination. One end is a cylindrical sleeve and the opposite end is an externally threaded fastener whose threaded portion is of one nominal diameter. Its unthreaded portion may be of any shape or size.
Part Alternates: MS2125910RH, MS21259-10RH, AN66610R, AN66610RH, AN666-10RH, AN666F10RH, MILDTL781, MIL-DTL-781, 66610RH, 666-10RH, 1640-00-273-9279, 00-273-9279, 1640002739279, 002739279
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-273-9279 | 66950 ( TERMINAL, WIRE ROPE, STUD, AVIATION ) |

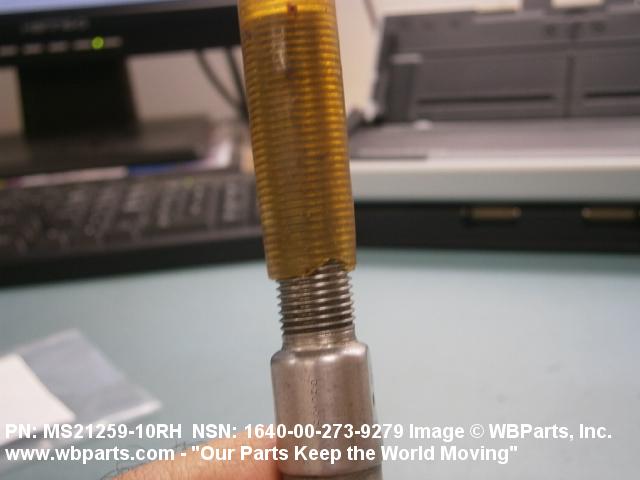

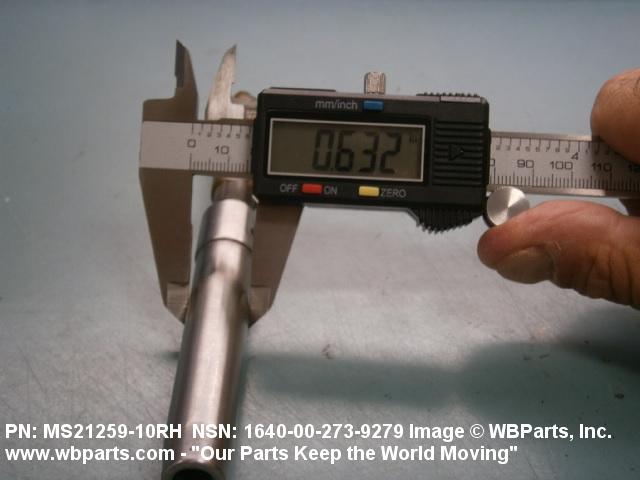

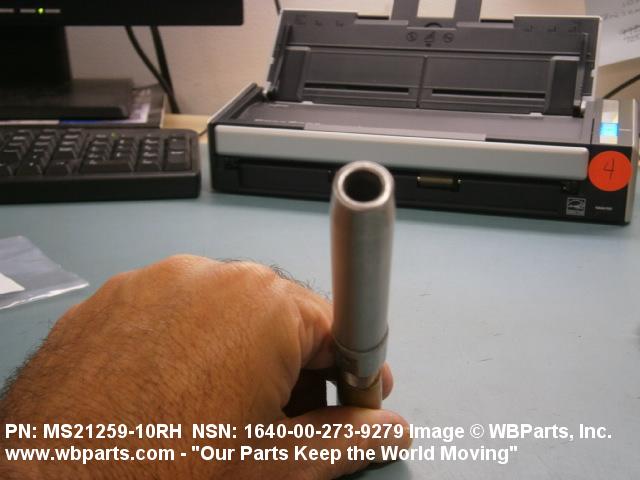

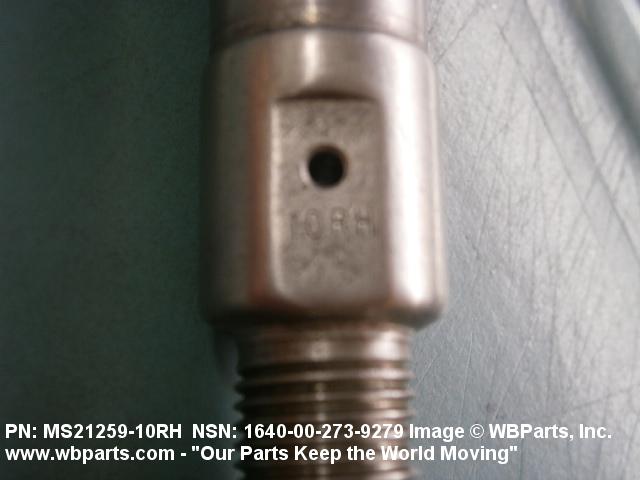

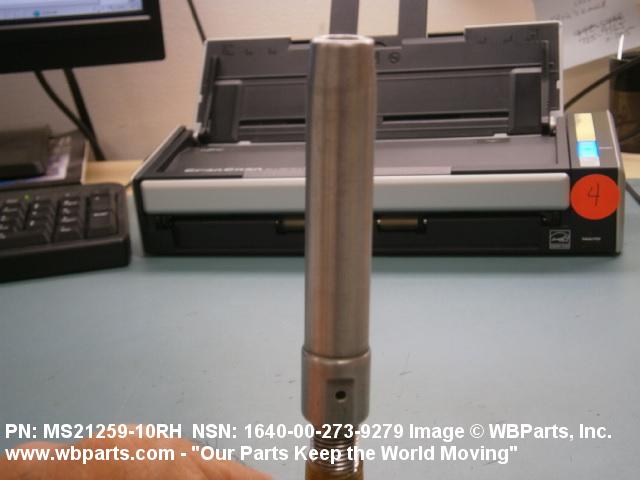

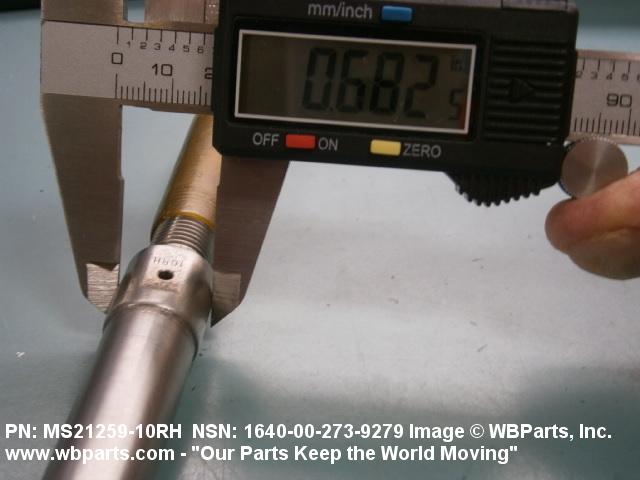

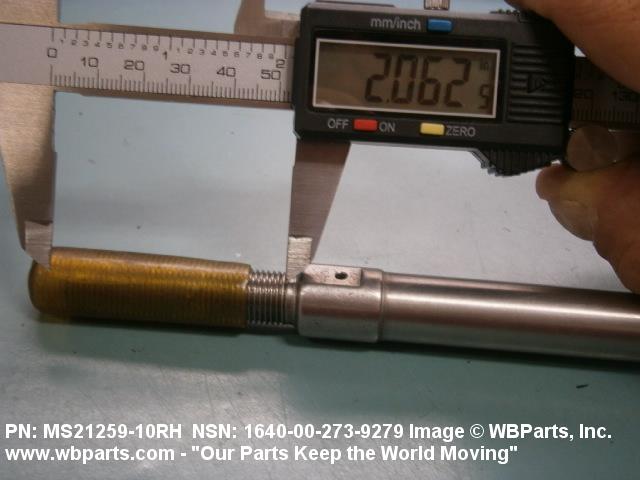

Drawings & Photos | NSN 1640-00-273-9279
Demand History | NSN 1640-00-273-9279
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-00-273-9279 | 2014-05-127 | 5 | Canada |
| MS2125910RH | 2013-12-347 | 2 | United Kingdom |
| MS2125910RH | 2013-09-268 | 1 | United States |
Cross Reference | NSN 1640-00-273-9279
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 666-10RH | 62060 | SOUTHCO INC. |
| 666-10RH | 83014 | HARTWELL CORPORATION |
| AN666-10RH | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN66610R | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN666F10RH | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MIL-DTL-781 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS21259-10RH | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1640-00-273-9279
Related Products | NSN 1640-00-273-9279
Technical Data | NSN 1640-00-273-9279
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE AND STEEL COMP 305 |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES |
| SURFACE TREATMENT | PASSIVATE |
| STYLE DESIGNATOR | 176 THREADED |

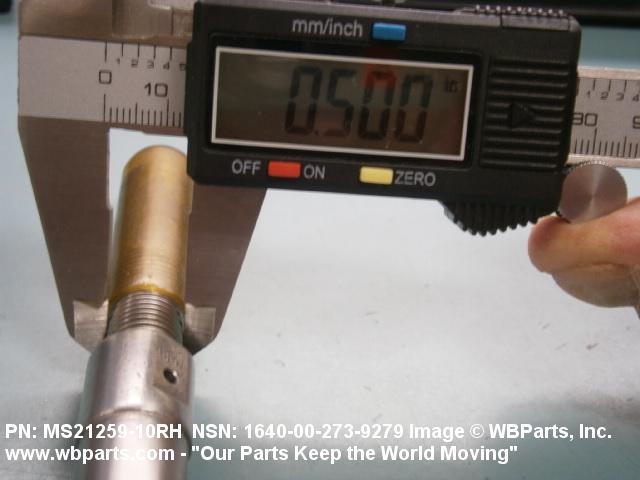

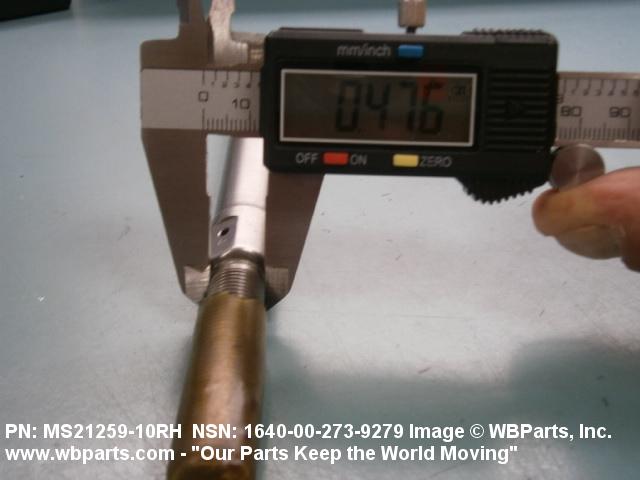

| INSIDE DIAMETER | 0.328 INCHES MINIMUM AND 0.333 INCHES MAXIMUM |
| HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.467 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| OVERALL LENGTH | 5.828 INCHES MINIMUM AND 5.844 INCHES MAXIMUM |

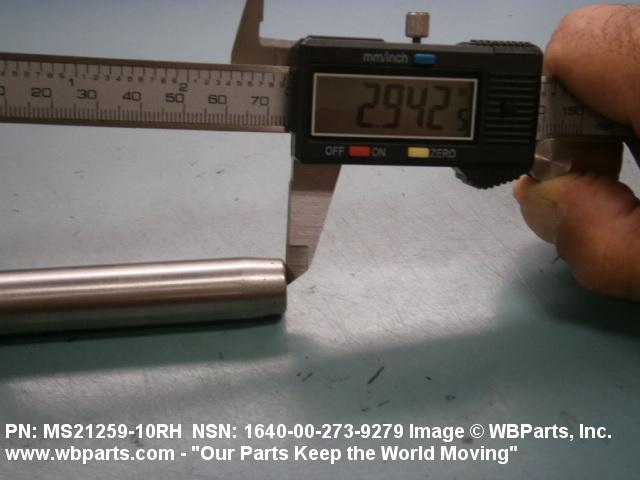

| PLAIN SHANK LENGTH | 2.938 INCHES MINIMUM AND 3.000 INCHES MAXIMUM |
