NSN 1640-00-174-9127 001749127
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
1640-00-174-9127 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 001749127
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-174-9127 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 1640-00-174-9127
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-174-9127
Technical Data | NSN 1640-00-174-9127
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL FIRST END STEEL PLOW WIRE ROPE |
| CORE CONSTRUCTION | FIBER |

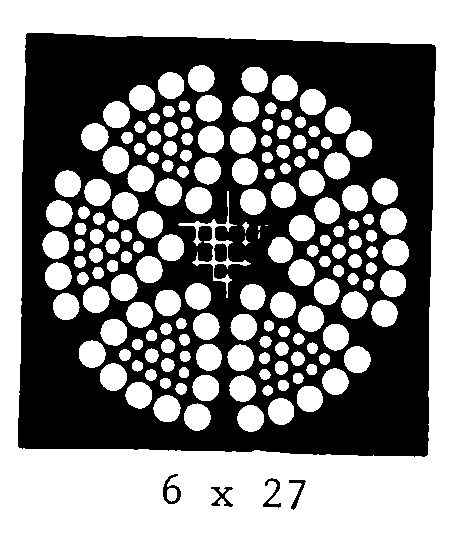

| STYLE DESIGNATOR | A77 6 X 27 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 16.661 FEET NOMINAL |
| DIAMETER | 0.375 INCHES NOMINAL ROPE |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |
| END CONDITIONING METHOD | SEIZED |
| ATTACHMENT STYLE | D66 SLIP HOOK FIRST END D184 SWAGING TERMINAL SECOND END |
| MANUFACTURERS CODE | 96169 |
| DESIGN CONTROL REFERENCE | 3683-147PC7-10-15-17-19-20 |
Restrictions/Controls & Freight Information | NSN 1640-00-174-9127
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
