NSN 1640-00-116-7814 001167814
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
1640-00-116-7814 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 001167814
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-116-7814 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |

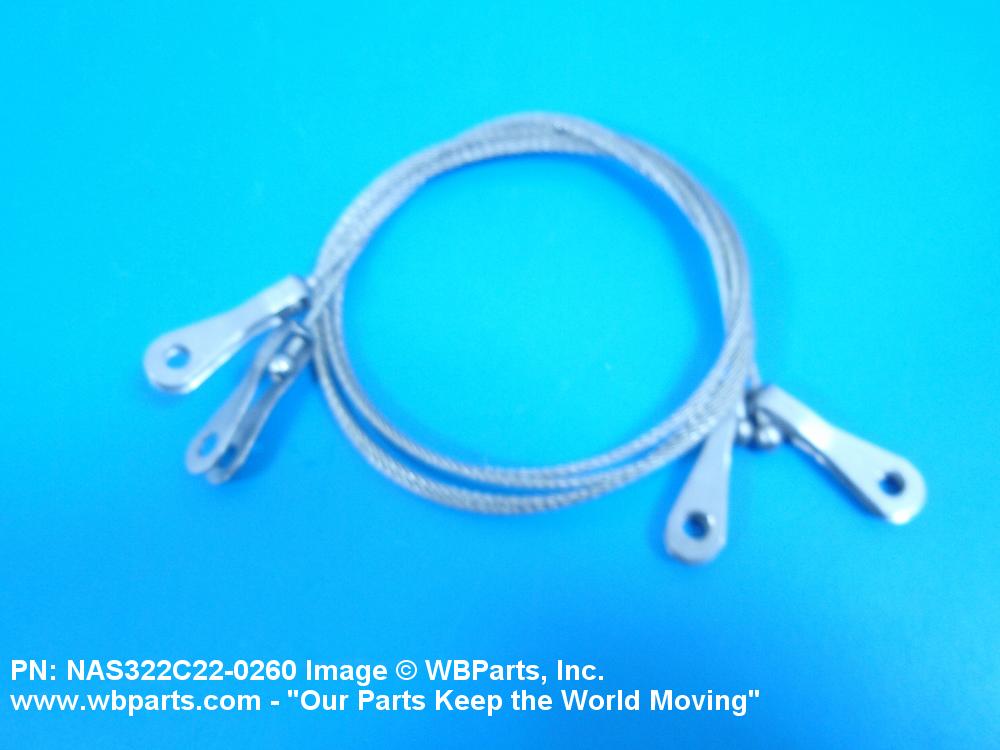

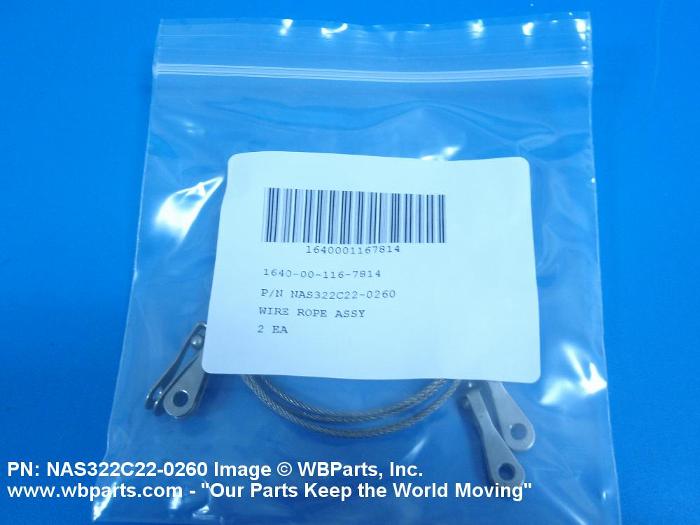

Drawings & Photos | NSN 1640-00-116-7814
Demand History | NSN 1640-00-116-7814
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS322C220260 | 2015-03-78 | 4 | Malaysia |
| NAS322C220260 | 2008-10-296 | 1 | United States |
| 1640-00-116-7814 | 2007-06-159 | 47 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-116-7814
Technical Data | NSN 1640-00-116-7814
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE OR STEEL COMP 305 ALL ATTACHMENTS STEEL COMP 302 WIRE ROPE STEEL COMP 302 CORE |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES ALL ATTACHMENTS MIL-C-5424 MIL SPEC SINGLE MATERIAL RESPONSE WIRE ROPE MIL-C-5424 MIL SPEC SINGLE MATERIAL RESPONSE CORE |
| SURFACE TREATMENT | PASSIVATE ALL ATTACHMENTS |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-T-781 MIL SPEC SINGLE TREATMENT RESPONSE ALL ATTACHMENTS |
| CORE CONSTRUCTION | WIRE |
| STYLE DESIGNATOR | A120 7 X 7 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 2.156 FEET MINIMUM AND 2.177 FEET MAXIMUM |
| DIAMETER | 0.062 INCHES MINIMUM AND 0.072 INCHES MAXIMUM ROPE |
| BREAKING STRENGTH | 480.000 POUNDS MINIMUM |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |
| ATTACHMENT STYLE | D2 SINGLE SHANK TERMINAL ATTACHMENT FIRST END D180 SOCKET TERMINAL 1ST INTERMEDIATE ATTACHMENT D2 SINGLE SHANK 2ND INTERMEDIATE ATTACHMENT D180 SOCKET TERMINAL TERMINAL ATTACHMENT SECOND END |
| SPECIFICATION/STANDARD DATA | 80205-NAS322 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 1640-00-116-7814
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
