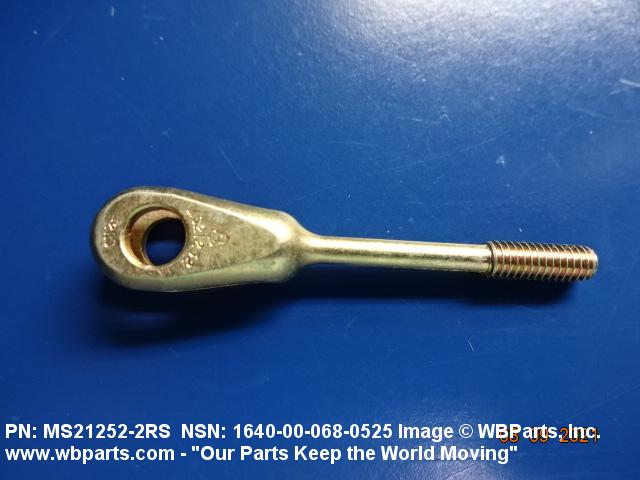

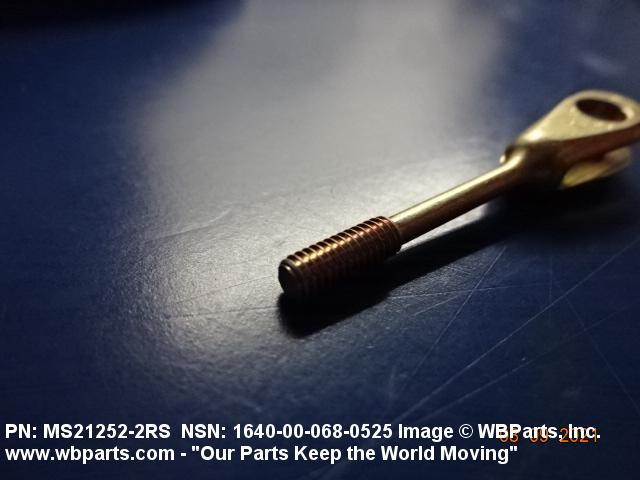

Product Details | ROD END CLEVIS
1640-00-068-0525 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 000680525
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-068-0525 | 03796 ( CLEVIS, ROD END ) |

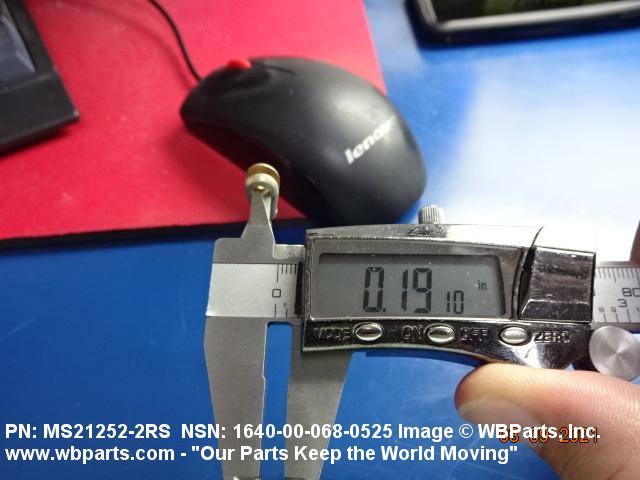

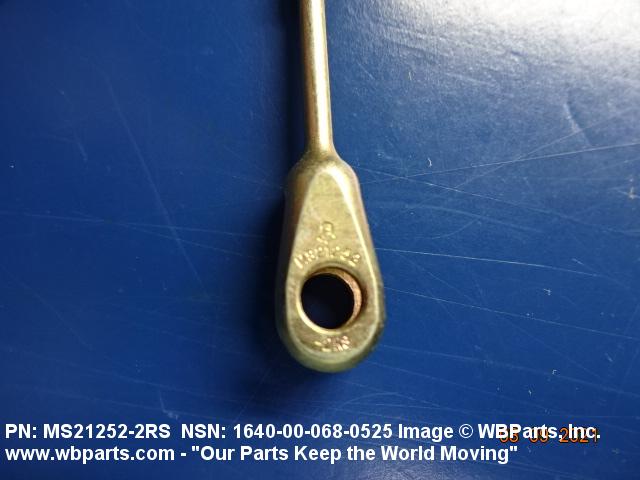

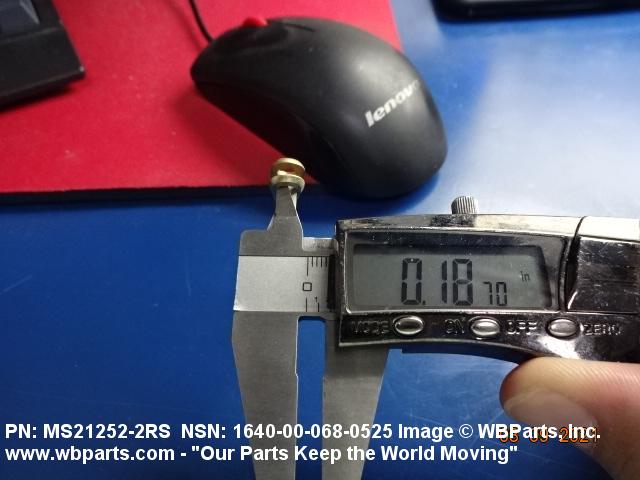

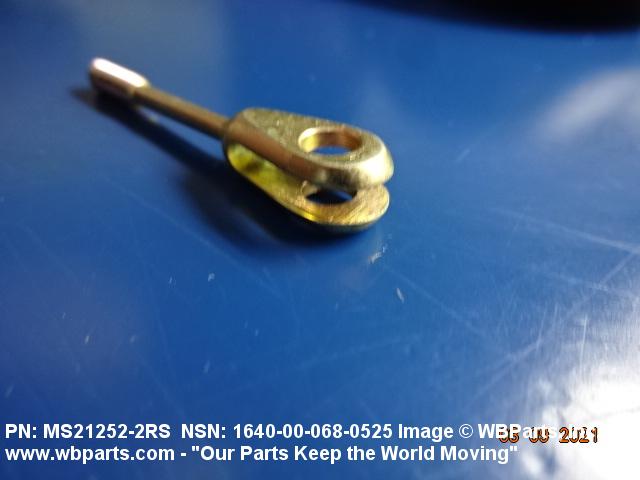

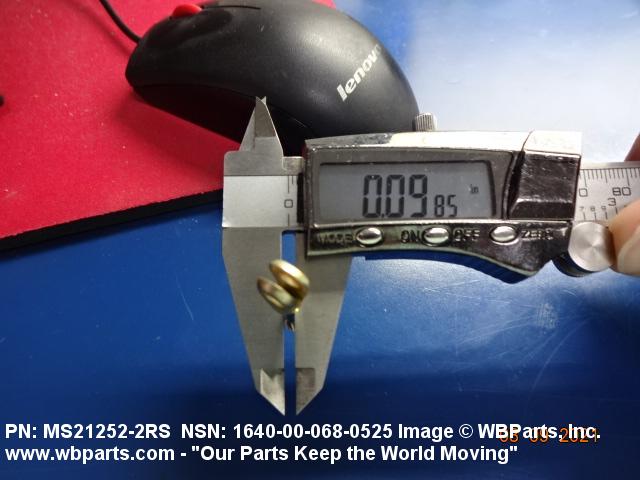

Drawings & Photos | NSN 1640-00-068-0525
Demand History | NSN 1640-00-068-0525
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-00-068-0525 | 2009-01-07 | 433 | DIBBS |
| 1640-00-068-0525 | 2008-09-262 | 234 | DIBBS |
| 1640-00-068-0525 | 2007-11-334 | 222 | DIBBS |
| 1640-00-068-0525 | 2007-05-127 | 222 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-068-0525

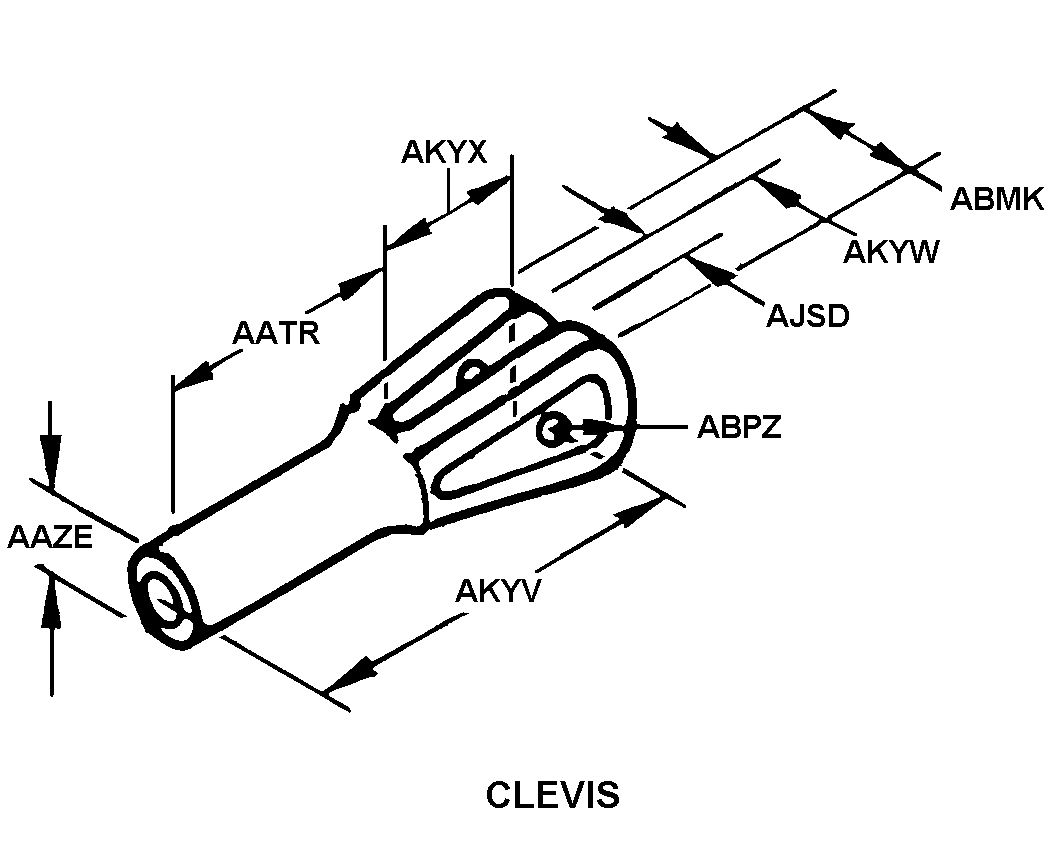

Technical Data | NSN 1640-00-068-0525

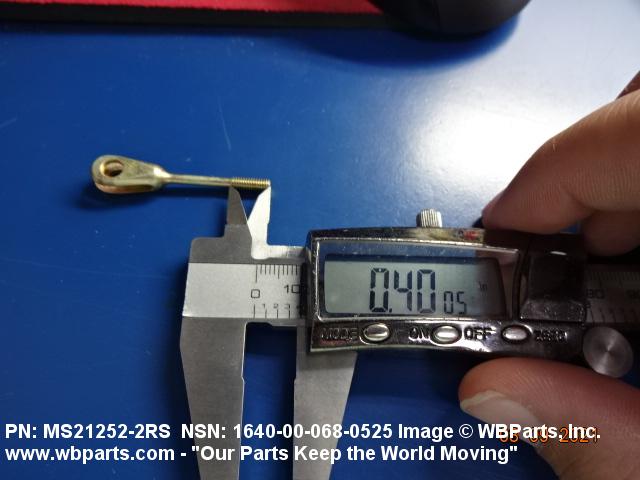

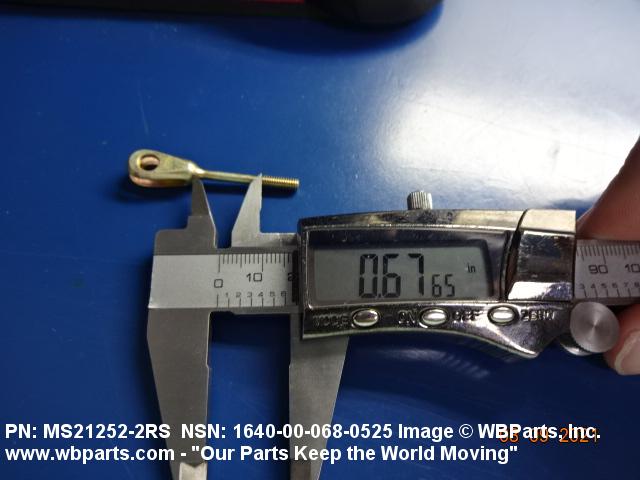

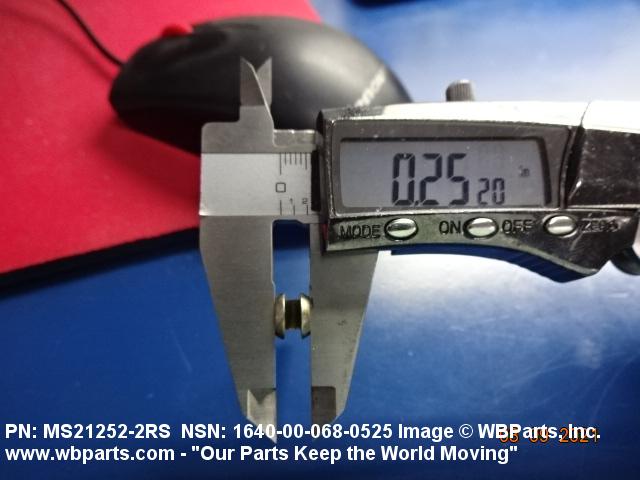

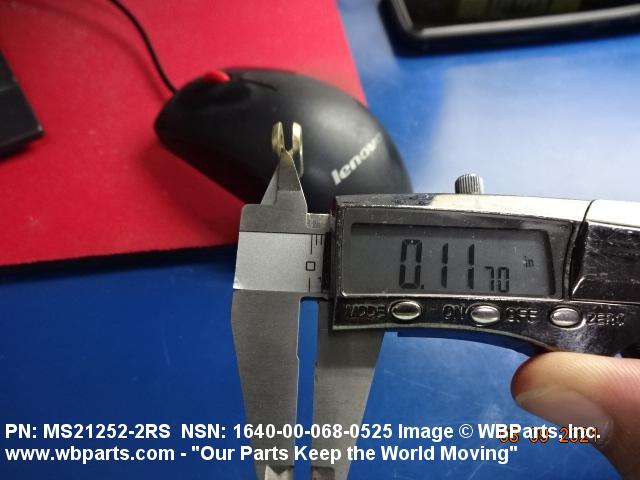

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.138 INCHES ROD CONNECTION |
| THREAD CLASS | 3A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.328 INCHES MINIMUM AND 0.422 INCHES MAXIMUM ROD CONNECTION |
| STYLE DESIGNATOR | 36 CLEVIS |
| SHANK LENGTH | 0.672 INCHES MINIMUM AND 0.828 INCHES MAXIMUM |
| SHANK DIAMETER | 0.094 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| OVERALL WIDTH | 0.245 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| END RADIUS | 0.187 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.109 INCHES MINIMUM AND 0.119 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 1.469 INCHES MINIMUM AND 1.531 INCHES MAXIMUM |
| FORK ARM THICKNESS | 0.063 INCHES MINIMUM AND 0.075 INCHES MAXIMUM |
| FORK DEPTH | 0.375 INCHES NOMINAL |
| HOLE SHAPE | ROUND |
| HOLE DIAMETER | 0.150 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21252-2RS |
