NSN 1630-00-498-3225 1593000, 5000254, 5003156
Product Details | FRICTION LINING
1630-00-498-3225 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: 1593000, 5000254, 5003156, 69D2777310, 69D27773-10, 1630-00-498-3225, 00-498-3225, 1630004983225, 004983225
Aircraft Components and Accessories | Aircraft Wheel and Brake Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 06 OCT 1969 | 00-498-3225 | 11405 ( LINING, FRICTION ) |
Drawings & Photos | NSN 1630-00-498-3225
Demand History | NSN 1630-00-498-3225
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5003156 | 2022-11-332 | 11 | DIBBS |
| 5003156 | 2022-07-192 | 11 | DIBBS |
Cross Reference | NSN 1630-00-498-3225
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1593000 | G1005 | SIELMAN S.A. DBA SIELMAN S.A. |
| 5000254 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| 5003156 | 0B9R9 | MEGGITT AIRCRAFT BRAKING SYSTEMS CORPORATION |
| 5003156 | 25500 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 5003156 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| 69D27773-10 | 98747 | OGDEN AIR LOGISTICS CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1630-00-498-3225
Technical Data | NSN 1630-00-498-3225
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | STEEL |
| APPLICATION TYPE | DRY |
| LINING STYLE | 8 INTERNAL TOOTH CLUTCH DISK |
| MAJOR DIAMETER | 11.120 INCHES NOMINAL |
| TEETH QUANTITY | 8 |
| ATTACHMENT METHOD | RIVETED |

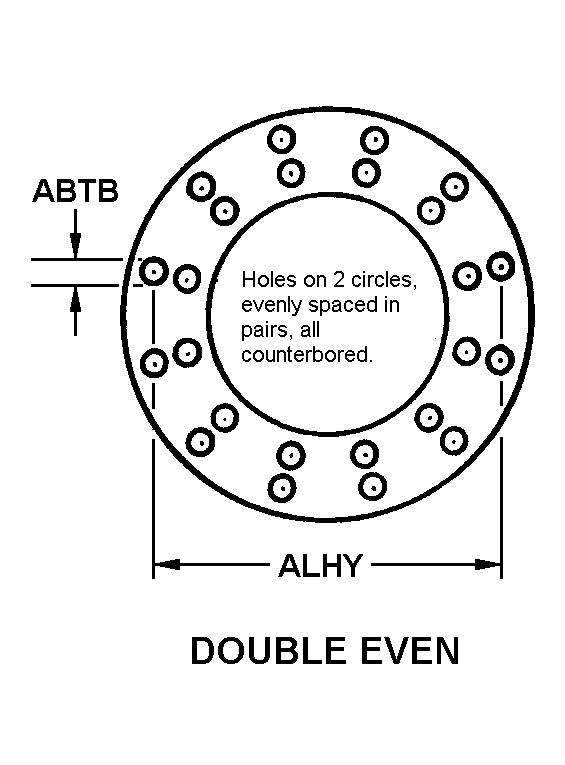

| HOLE ARRANGEMENT STYLE | B5 DOUBLE EVEN |
