NSN 1560-01-521-7715 123P10350, 123P1035013, 123P10350-13
Product Details | AIRCRAFT STRUCTURAL PLATE
1560-01-521-7715 A flat or preformed item of metallic or nonmetallic material. It may vary in shape and its surface may be smooth and/or serrated. Its thickness is small in comparison to both its length and width. It is designed to be mounted upon a surface or between two surfaces. Its primary function is to strengthen, join, or separate aircraft structural parts. Excludes PLATE, MENDING; SHIM; and SPACER, PLATE.
Part Alternates: 123P10350, 123P1035013, 123P10350-13, 1560-01-521-7715, 01-521-7715, 1560015217715, 015217715
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 02 JUL 2004 | 01-521-7715 | 31495 ( PLATE, STRUCTURAL, AIRCRAFT ) |

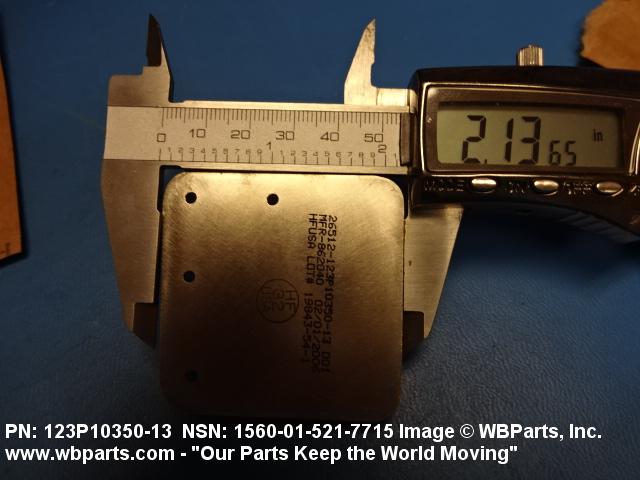

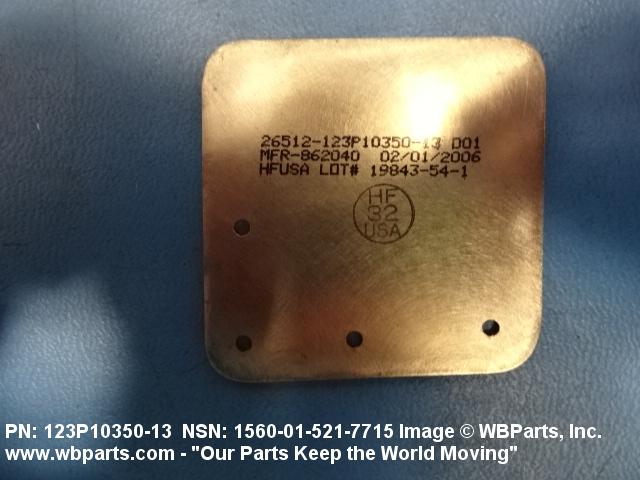

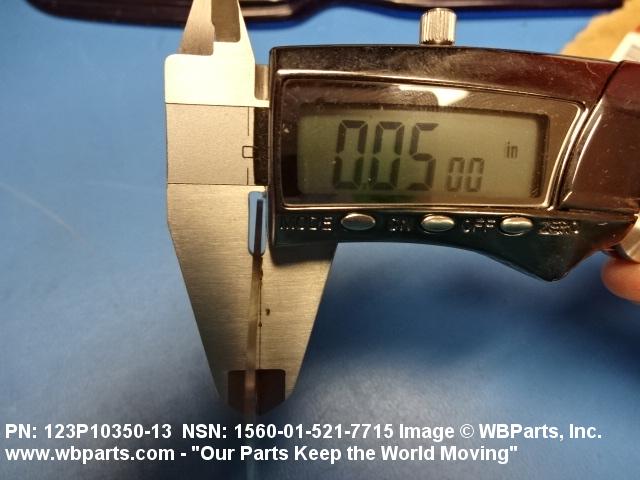

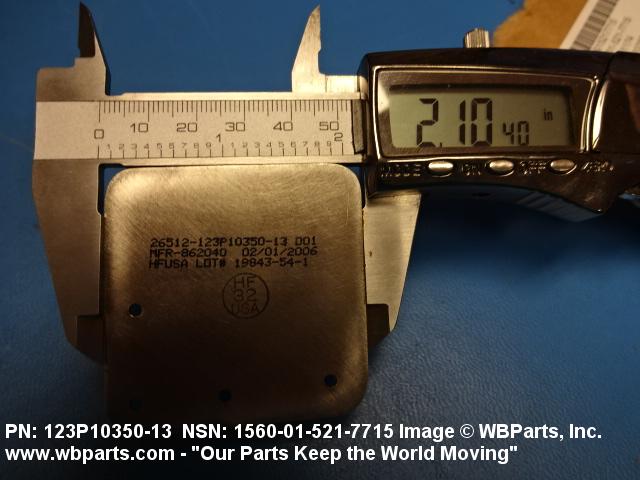

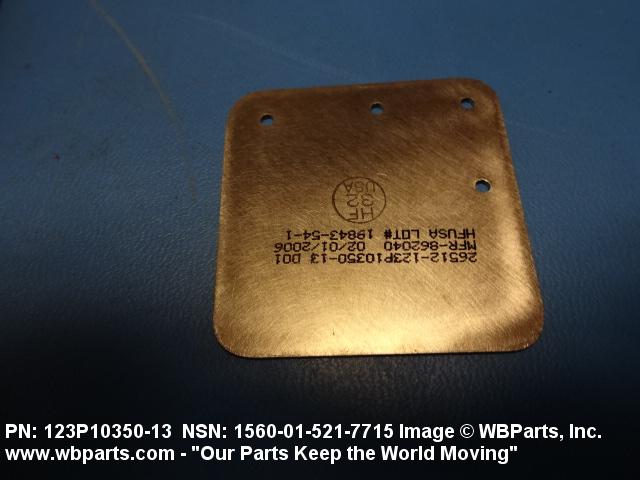

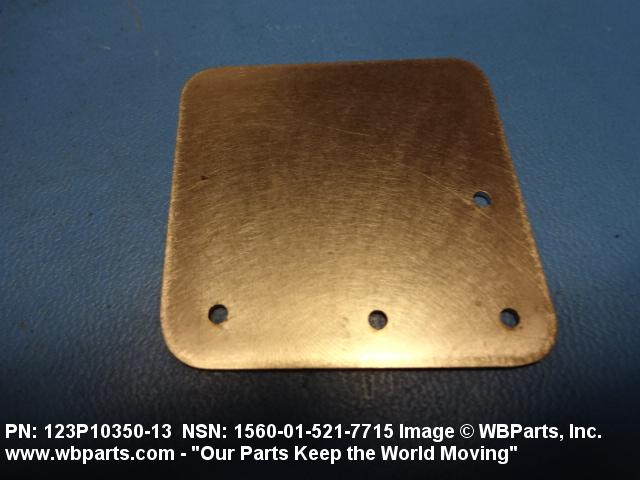

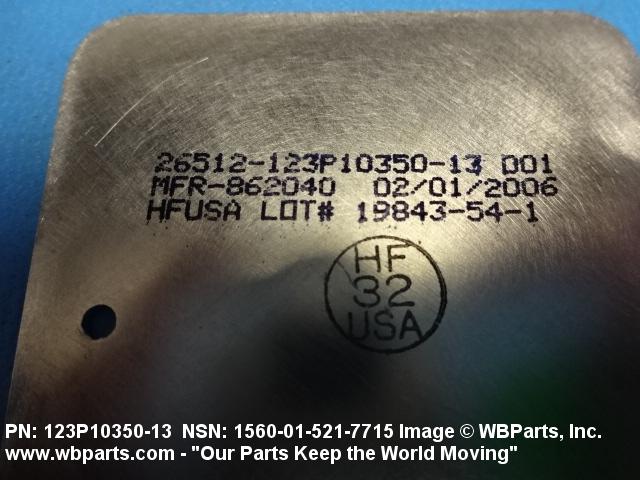

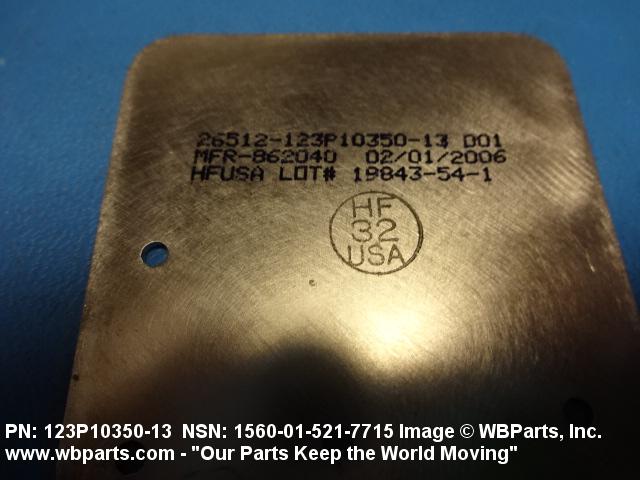

Drawings & Photos | NSN 1560-01-521-7715
Demand History | NSN 1560-01-521-7715
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-521-7715 | 2017-12-352 | 1 | United States |
| 1560-01-521-7715 | 2017-09-258 | 1 | DIBBS-RFPs |
| 1560-01-521-7715 | 2017-07-207 | 10 | DIBBS |
| 1560-01-521-7715 | 2017-07-186 | 11 | DIBBS |
| 1560-01-521-7715 | 2017-05-149 | 9 | DIBBS |
| 1560-01-521-7715 | 2017-04-116 | 4 | DIBBS |
| 1560-01-521-7715 | 2017-04-107 | 6 | DIBBS |
| 1560-01-521-7715 | 2017-04-99 | 6 | DIBBS |
| 1560-01-521-7715 | 2016-12-341 | 9 | DIBBS |
| 1560-01-521-7715 | 2016-11-325 | 4 | DIBBS |
| 1560-01-521-7715 | 2016-09-273 | 5 | United States |
| 1560-01-521-7715 | 2016-08-231 | 5 | DIBBS |
| 1560-01-521-7715 | 2015-12-350 | 23 | DIBBS |
| 1560-01-521-7715 | 2015-07-208 | 8 | DIBBS |
| 1560-01-521-7715 | 2015-07-200 | 8 | DIBBS |
| 1560-01-521-7715 | 2014-11-308 | 37 | DIBBS |
| 1560-01-521-7715 | 2014-10-287 | 5 | DIBBS |
| 1560-01-521-7715 | 2014-10-279 | 5 | DIBBS |
Cross Reference | NSN 1560-01-521-7715
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 123P10350 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 123P10350-13 | 0BVP9 | CAPY MACHINE SHOP INC. |
| 123P10350-13 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 123P10350-13 | 61174 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-01-521-7715
Restrictions/Controls & Freight Information | NSN 1560-01-521-7715
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106280 | PLATES STRUCTURAL I/S NOI |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-521-7715
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
