NSN 1560-01-374-9895 P51001, P-51001, 01-374-9895
Product Details | AIRCRAFT STRUCTURAL COMPONENT FITTING
1560-01-374-9895 An item of unique shapes and cross-sectional configurations specifically designed with dimensional tolerances and finishes. It may be metallic and/or nonmetallic and must be able to mate with or join to like items with aircraft application. The item may consist of more then one (1) piece to form an assembly. Do not use if a more specific item name exists. Excludes BRACKET (1), STRUCTURAL COMPONENT, AIRCRAFT.
Part Alternates: P51001, P-51001, 1560-01-374-9895, 01-374-9895, 1560013749895, 013749895
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 03 MAY 1993 | 01-374-9895 | 41018 ( FITTING, STRUCTURAL COMPONENT, AIRCRAFT ) |

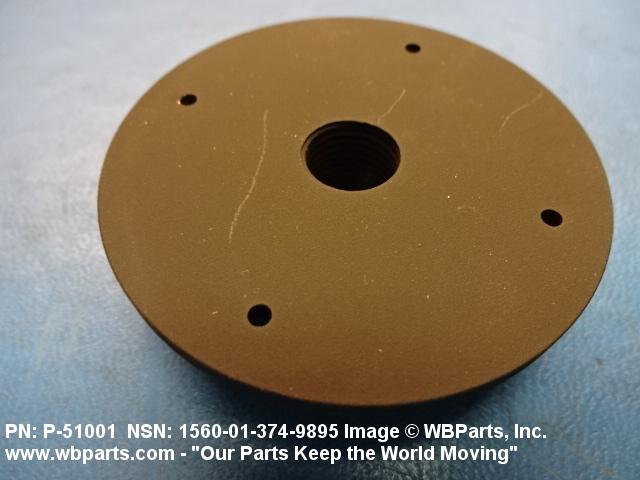

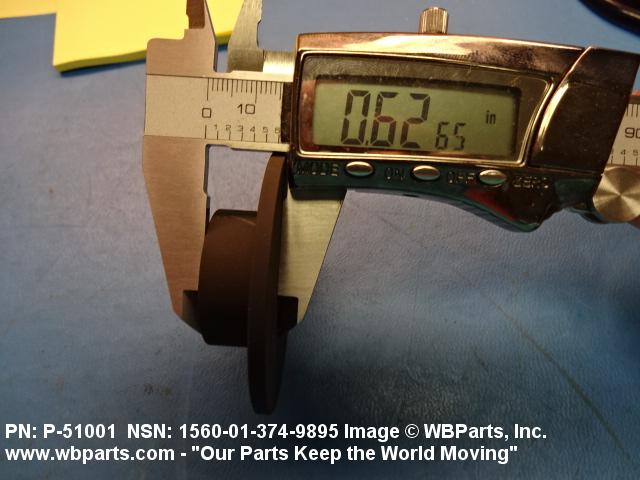

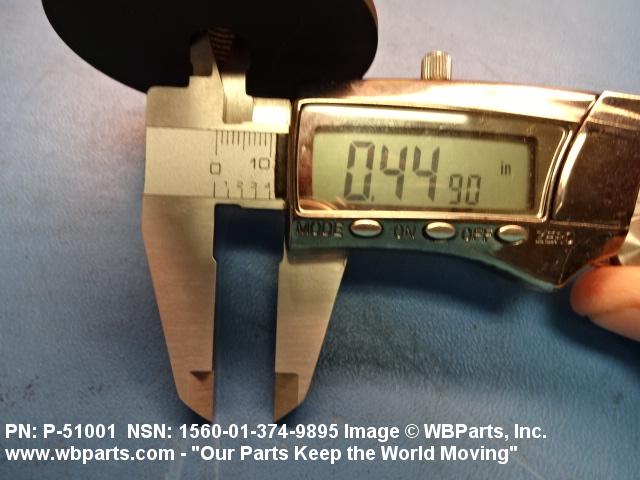

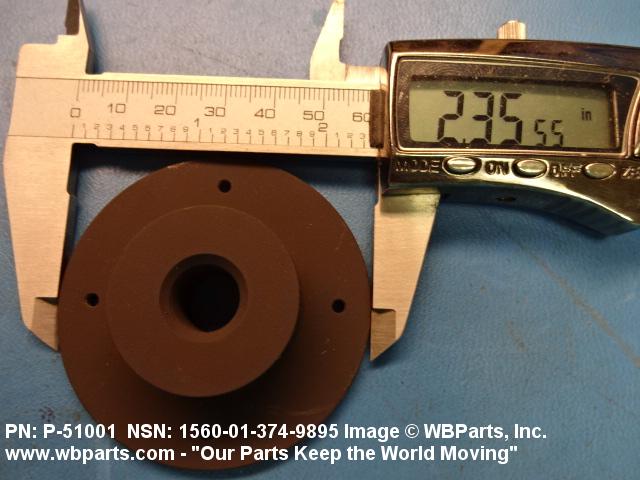

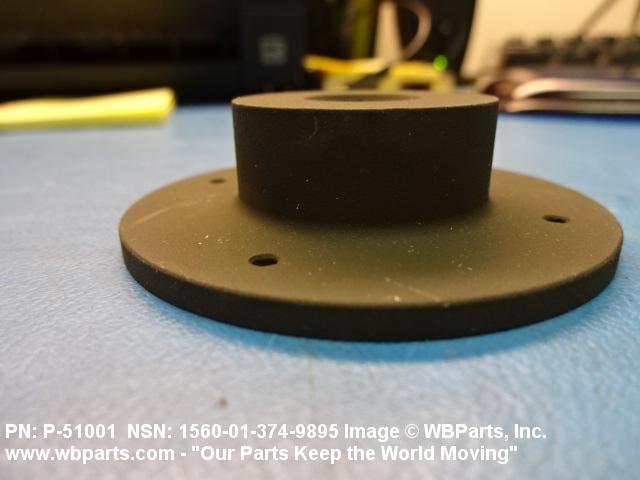

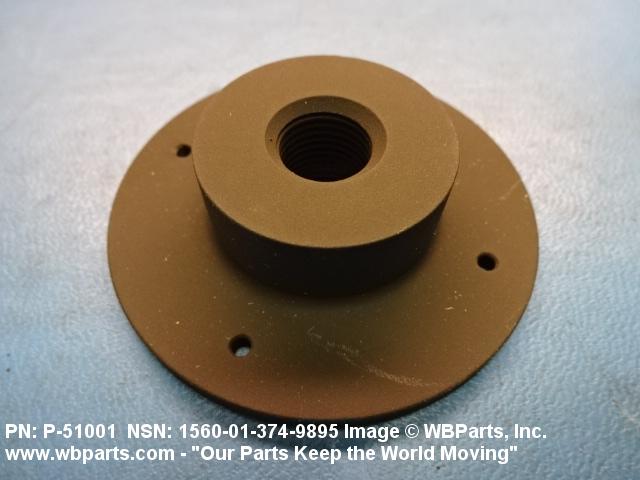

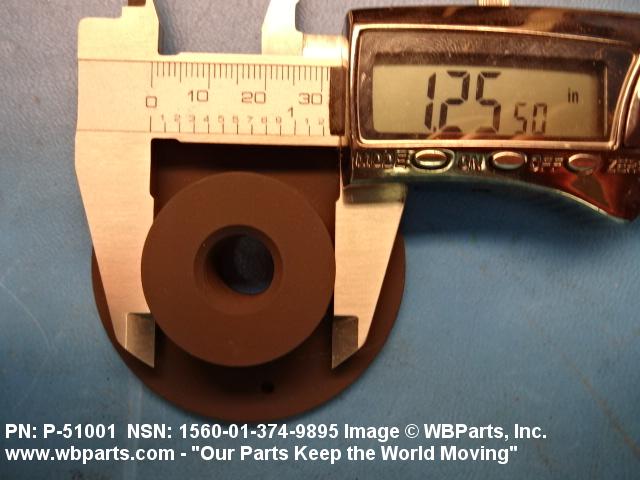

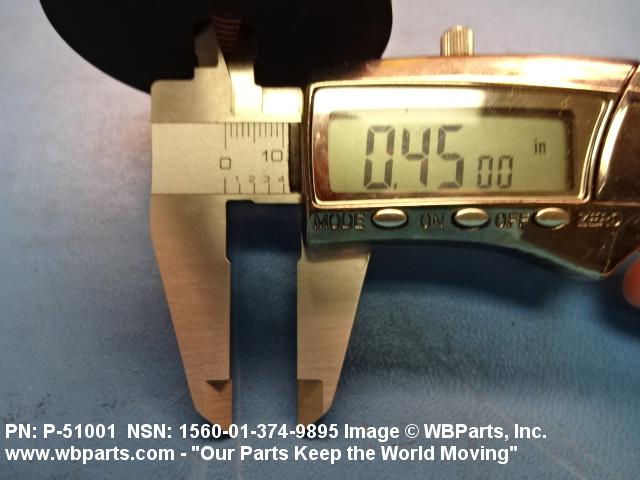

Drawings & Photos | NSN 1560-01-374-9895
Demand History | NSN 1560-01-374-9895
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| P51001 | 2023-08-23 | 288 | US |
| P51001 | 2020-02-24 | 336 | US |
| P51001 | 2019-04-22 | 56 | US |
| 1560-01-374-9895 | 2019-02-18 | 1 | US |
| 1560-01-374-9895 | 2017-04-27 | 1 | United States |
| 1560-01-374-9895 | 2017-01-18 | 1 | DIBBS |
| 1560-01-374-9895 | 2016-05-05 | 1 | DIBBS |
| 1560-01-374-9895 | 2007-02-11 | 2 | DIBBS |
Cross Reference | NSN 1560-01-374-9895
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P-51001 | 71428 | PULSAR INDUSTRIES, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-374-9895
Related Products | NSN 1560-01-374-9895
Technical Data | NSN 1560-01-374-9895
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 |
| SIDE FOR WHICH DESIGNED | BOTH SIDES |
| AIRCRAFT MISSION DESIGN SERIES | CH-47 D MODEL |
| SPECIAL FEATURES | FITTING IS PAINTED GREEN IAW W/MIL-C-46168 ALIPHATIC POLYURETHANE,COLOR |
| III END ITEM IDENTIFICATION | CH-47 HELICOPTER |
Restrictions/Controls & Freight Information | NSN 1560-01-374-9895
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-374-9895
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
