NSN 1560-00-046-3887 4130161, 00-046-3887, 000463887
Product Details | AIRCRAFT STRUCTURAL COMPONENT FITTING
1560-00-046-3887 An item of unique shapes and cross-sectional configurations specifically designed with dimensional tolerances and finishes. It may be metallic and/or nonmetallic and must be able to mate with or join to like items with aircraft application. The item may consist of more then one (1) piece to form an assembly. Do not use if a more specific item name exists. Excludes BRACKET (1), STRUCTURAL COMPONENT, AIRCRAFT.
Part Alternates: 4130161, 1560-00-046-3887, 00-046-3887, 1560000463887, 000463887
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 01 JAN 1963 | 00-046-3887 | 41018 ( FITTING, STRUCTURAL COMPONENT, AIRCRAFT ) |

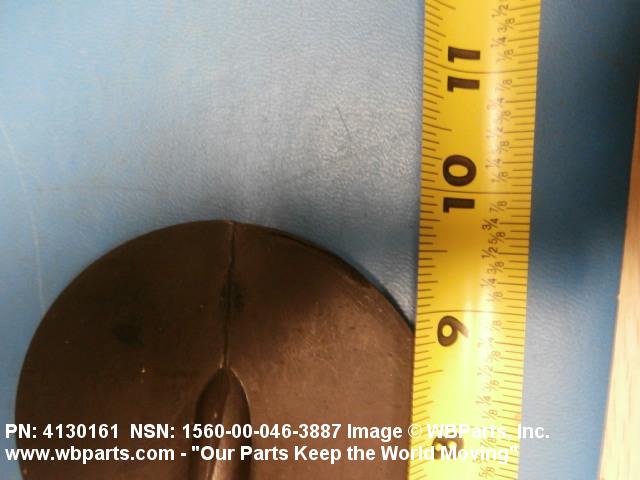

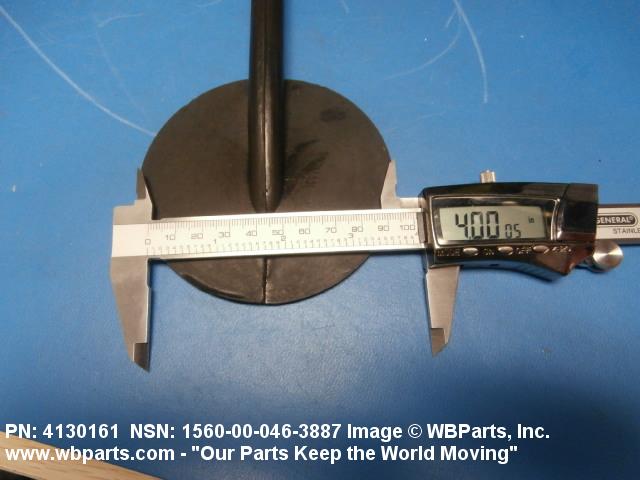

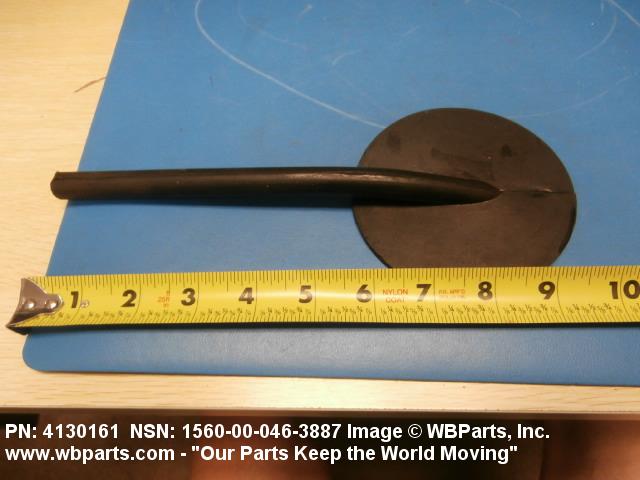

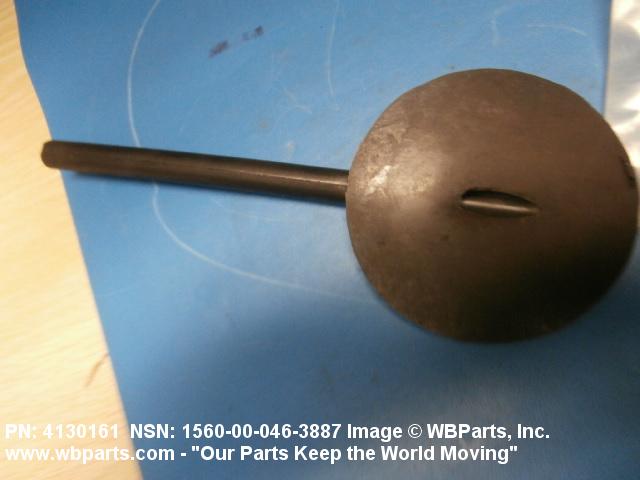

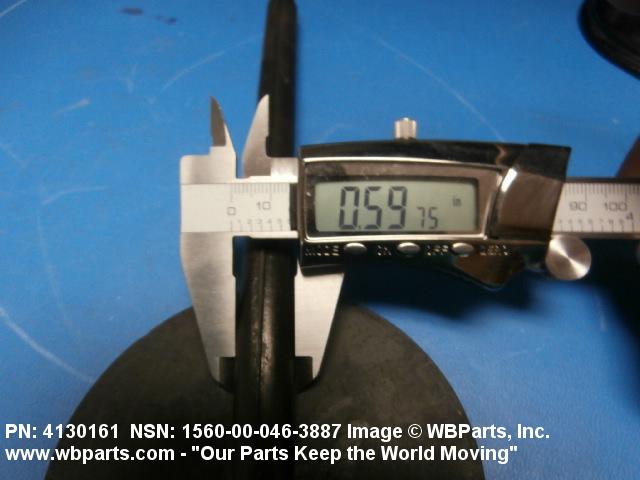

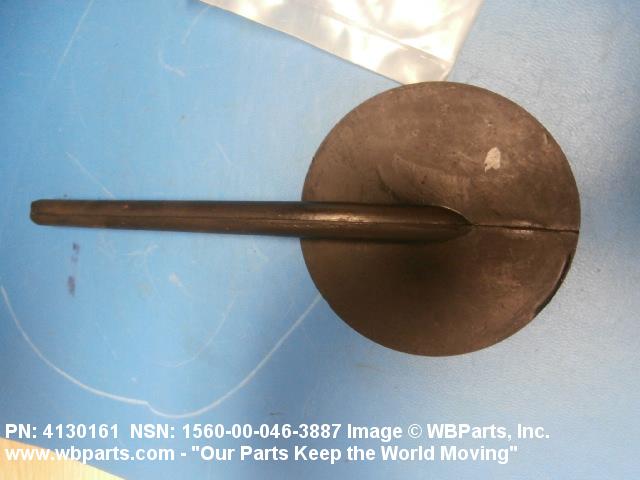

Drawings & Photos | NSN 1560-00-046-3887
Demand History | NSN 1560-00-046-3887
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-00-046-3887 | 2022-11-314 | 2 | Canada |
| 1560-00-046-3887 | 2016-02-55 | 2 | Australia |
| 1560-00-046-3887 | 2016-02-40 | 2 | Australia |
| 4130161 | 2015-09-267 | 2 | Australia |
| 4130161 | 2015-09-267 | 2 | Australia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-00-046-3887
Technical Data | NSN 1560-00-046-3887
| Characteristic | Specifications |
|---|---|
| AIRCRAFT MISSION DESIGN SERIES | C-47 |
| OVERALL LENGTH | 5.750 INCHES NOMINAL |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 4130161 |
Restrictions/Controls & Freight Information | NSN 1560-00-046-3887
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-00-046-3887
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9F | Navy-owned stocks of material managed by the Air Force within the Warner Robins Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
