NSN 1560-01-371-2090 17P6W5231503, 17P6W5231-503, 01-371-2090
Product Details | AIRCRAFT ACCESS COVER
1560-01-371-2090 An access cover which is an integral part of the airframe structure of an aircraft. Excludes COVER, ACCESS.
Part Alternates: 17P6W5231503, 17P6W5231-503, 1560-01-371-2090, 01-371-2090, 1560013712090, 013712090
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 08 FEB 1993 | 01-371-2090 | 51575 ( COVER, ACCESS, AIRCRAFT ) |
Drawings & Photos | NSN 1560-01-371-2090
Demand History | NSN 1560-01-371-2090
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-01-371-2090 | 2020-12-356 | 1 | US |
Cross Reference | NSN 1560-01-371-2090
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17P6W5231-503 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-371-2090
Related Products | NSN 1560-01-371-2090
Technical Data | NSN 1560-01-371-2090
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 82 OVAL, NO HOLES |
| WIDTH | 8.470 INCHES NOMINAL |
| LENGTH | 10.160 INCHES NOMINAL |

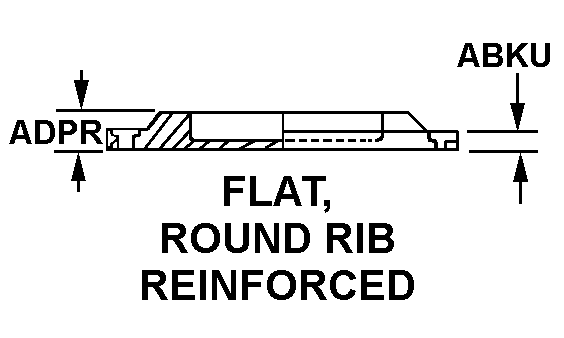

| CROSS-SECTIONAL SHAPE STYLE | 28 FLAT, ROUND RIB REINFORCED |
| FLANGE THICKNESS | 0.072 INCHES NOMINAL |
| BODY THICKNESS | 0.144 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 7075 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/13,T-6 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PRIMER EPOXY-POLYAMIDE AND ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-P-23377 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-8625 MIL SPEC 2ND TREATMENT RESPONSE |
| SECURING DEVICE TYPE | FLUSH CATCH |
| SPECIAL FEATURES | COVER ASSEMBLY,ACCESS-OUTBD PYLON-WING STUB;C/O: -7 COVER(1),LANYARD(1),LATCHES(4),MI SC HARDWARE;NHA 17P6W5200 |
| END ITEM IDENTIFICATION | C-17A AIRCRAFT |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 17P6W5231-503 |
Restrictions/Controls & Freight Information | NSN 1560-01-371-2090
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1560-01-371-2090
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | LZ | TG:C-17 AIRCRAFT |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
