NSN 1560-00-521-4474 1516602410, 151-66024-10, 00-521-4474
Product Details | AIRCRAFT ACCESS COVER
1560-00-521-4474 An access cover which is an integral part of the airframe structure of an aircraft. Excludes COVER, ACCESS.
Part Alternates: 1516602410, 151-66024-10, 1560-00-521-4474, 00-521-4474, 1560005214474, 005214474
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 01 JAN 1963 | 00-521-4474 | 51575 ( COVER, ACCESS, AIRCRAFT ) |

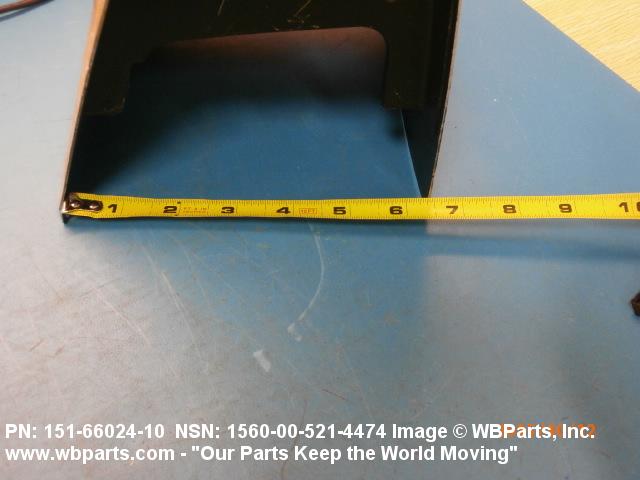

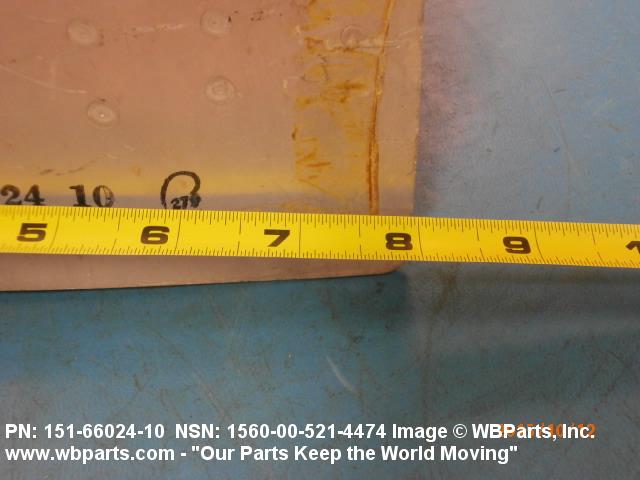

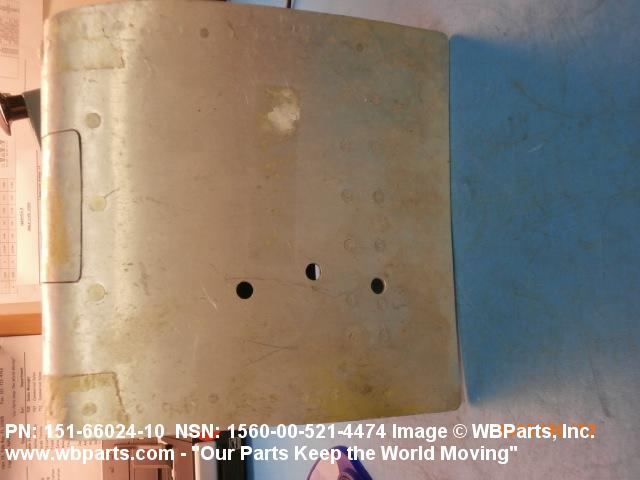

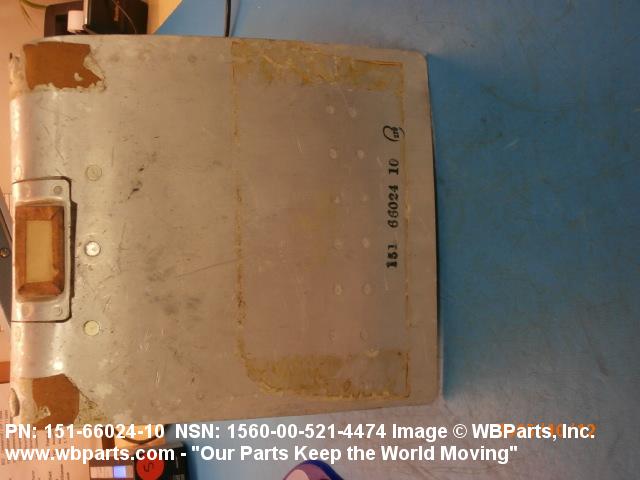

Drawings & Photos | NSN 1560-00-521-4474
Demand History | NSN 1560-00-521-4474
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560-00-521-4474 | 2015-09-270 | 1 | United States |
Cross Reference | NSN 1560-00-521-4474
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 151-66024-10 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1560-00-521-4474
Technical Data | NSN 1560-00-521-4474
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 1 RECTANGLE, NO HOLES |
| WIDTH | 7.484 INCHES MINIMUM AND 7.500 INCHES MAXIMUM |
| LENGTH | 21.969 INCHES MINIMUM AND 22.031 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | 30 ARCHED |
| BODY THICKNESS | 0.051 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5 FED SPEC SINGLE MATERIAL RESPONSE |
| SECURING DEVICE TYPE | TURNLOCK FASTENER |
| FSC APPLICATION DATA | FRAME,AIRFRAME |
| MANUFACTURERS CODE | 43999 |
| DESIGN CONTROL REFERENCE | 151-66024-10 |
Restrictions/Controls & Freight Information | NSN 1560-00-521-4474
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
