NSN 1560-01-319-6287 16B551499, 16B5514-99, 01-319-6287
Product Details | AIRCRAFT ACCESS COVER
1560-01-319-6287 An access cover which is an integral part of the airframe structure of an aircraft. Excludes COVER, ACCESS.
Part Alternates: 16B551499, 16B5514-99, 1560-01-319-6287, 01-319-6287, 1560013196287, 013196287
Aircraft and Airframe Structural Components | Airframe Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 15 | 11 MAY 1990 | 01-319-6287 | 51575 ( COVER, ACCESS, AIRCRAFT ) |
Drawings & Photos | NSN 1560-01-319-6287
Cross Reference | NSN 1560-01-319-6287
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16B5514-99 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1560-01-319-6287
Related Products | NSN 1560-01-319-6287
Technical Data | NSN 1560-01-319-6287
| Characteristic | Specifications |
|---|---|

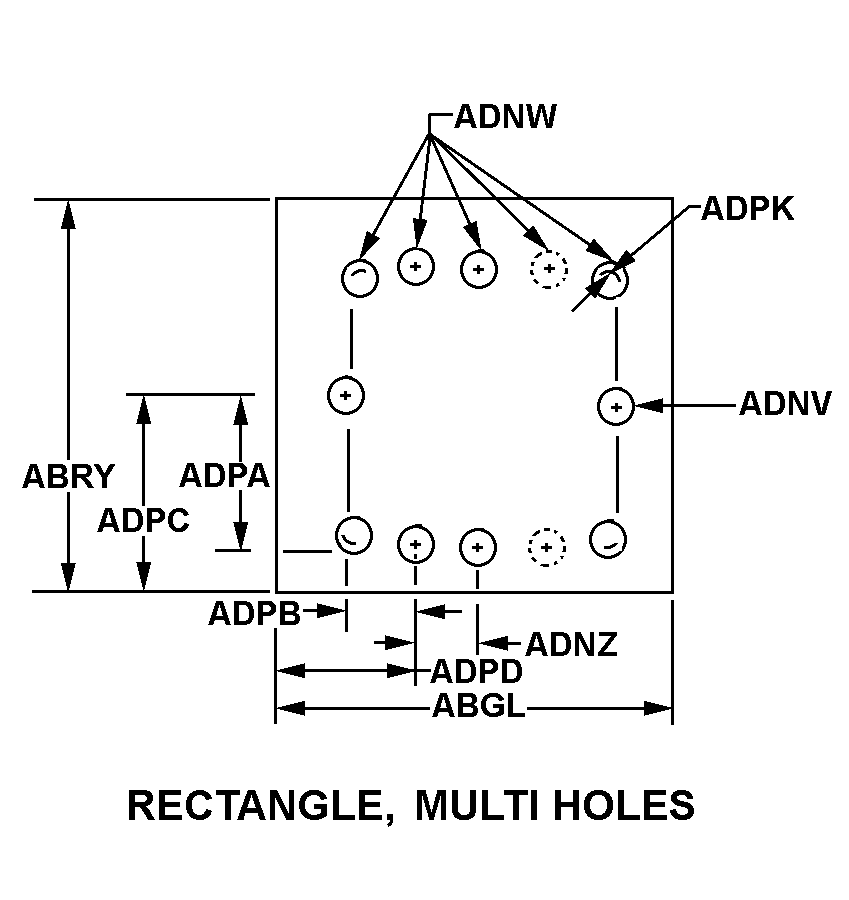

| PERIPHERAL SHAPE STYLE | 40 RECTANGLE, MULTI HOLES |
| WIDTH | 12.000 INCHES NOMINAL |
| LENGTH | 49.000 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERLINE AND FIRST HOLE ALONG LENGTH | 1.320 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERLINE AND FIRST HOLE ALONG WIDTH | 1.500 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH | 2.060 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG WIDTH | 2.060 INCHES NOMINAL |
| CORNER HOLE CENTERLINE RADIUS | 0.125 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 1.968 INCHES NOMINAL |
| HOLE QUANTITY ALONG LENGTH | 55 |
| HOLE QUANTITY ALONG WIDTH | 12 |
| CORNER BEVEL LENGTH | 1.700 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 30 ARCHED |
| INSIDE CORNER RADIUS | 7.185 INCHES NOMINAL |
| BODY THICKNESS | 0.100 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/4-T62 FED SPEC SINGLE MATERIAL RESPONSE |
| SECURING DEVICE TYPE | THREADED FASTENER |
| SPECIAL FEATURES | FLAP DRIVE FS267.4 TO FS279.4 |
| END ITEM IDENTIFICATION | F-16D BLK 40 |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16B5514-99 |
